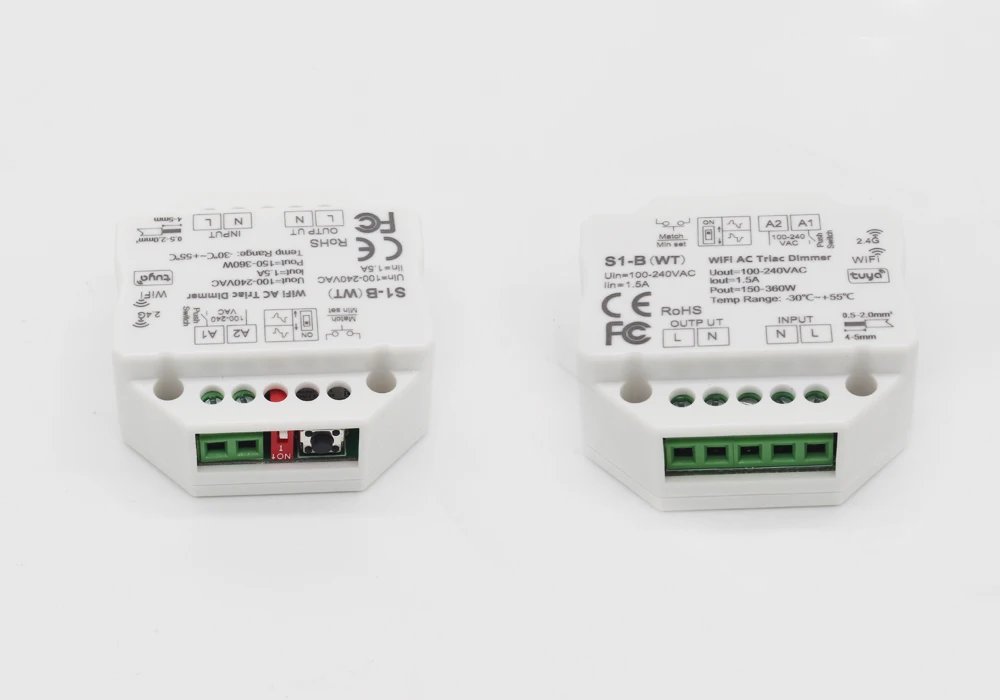

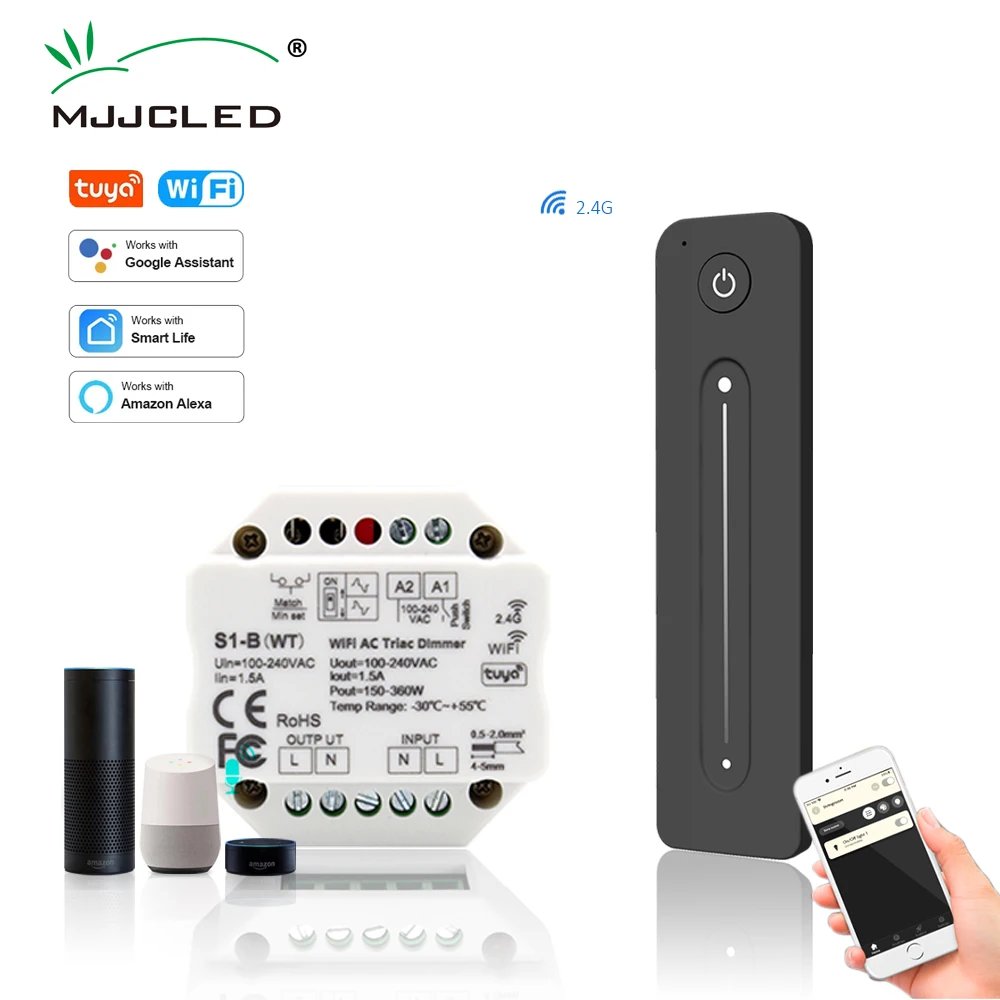

Tuya & WiFi & 2.4G RF AC Triac Dimmer 110V 220V 230V
Model No.: S1-B(WT)
Tuya APP cloud control/Voice control/RF dimming/Push Dim/Leading edge or trailing edge/Wall junction box mounting

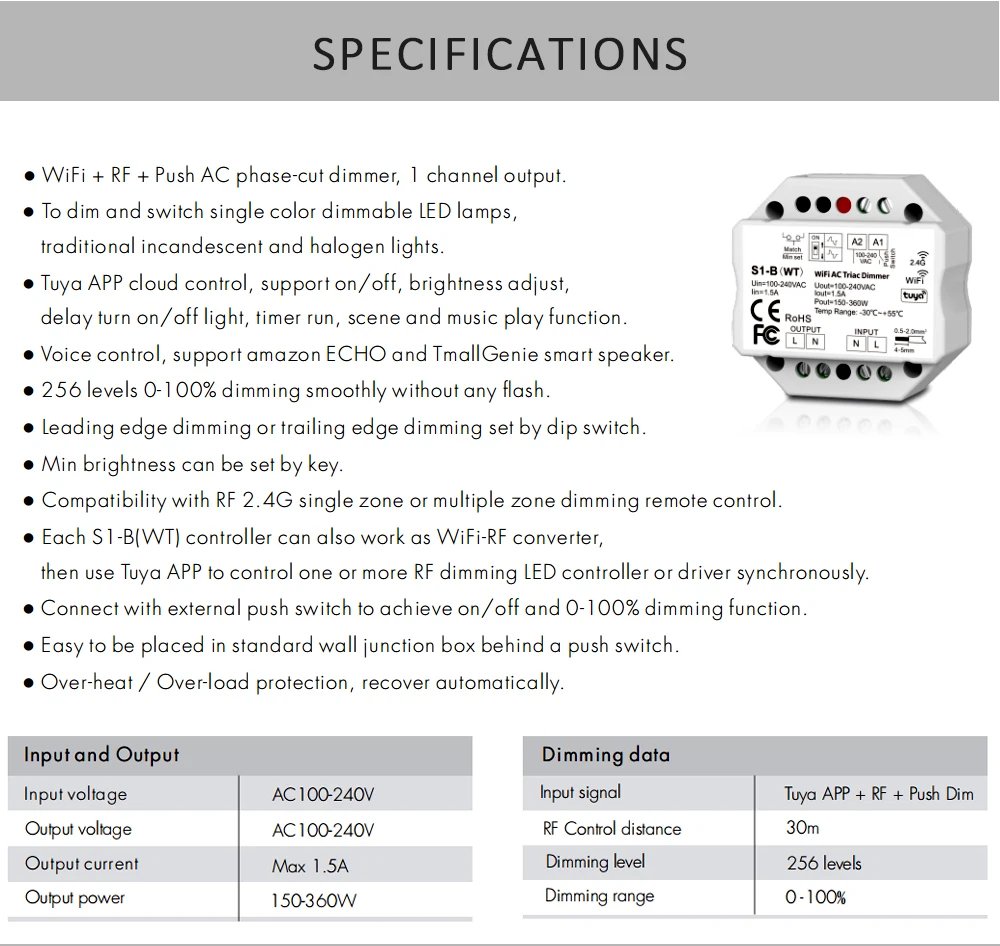

Features of Tuya Triac Dimmer:
● WiFi + RF + Push AC phase-cut dimmer, 1 channel output.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Tuya APP cloud control, support on/off,brightness adjust, delay turn on/off light, timer run, scene and music play function.
● Voice control, support amazon ECHO and TmallGenie smart speaker.
● 256 levels 0-100% dimming smoothly without any flash.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Min brightness can be set by key.

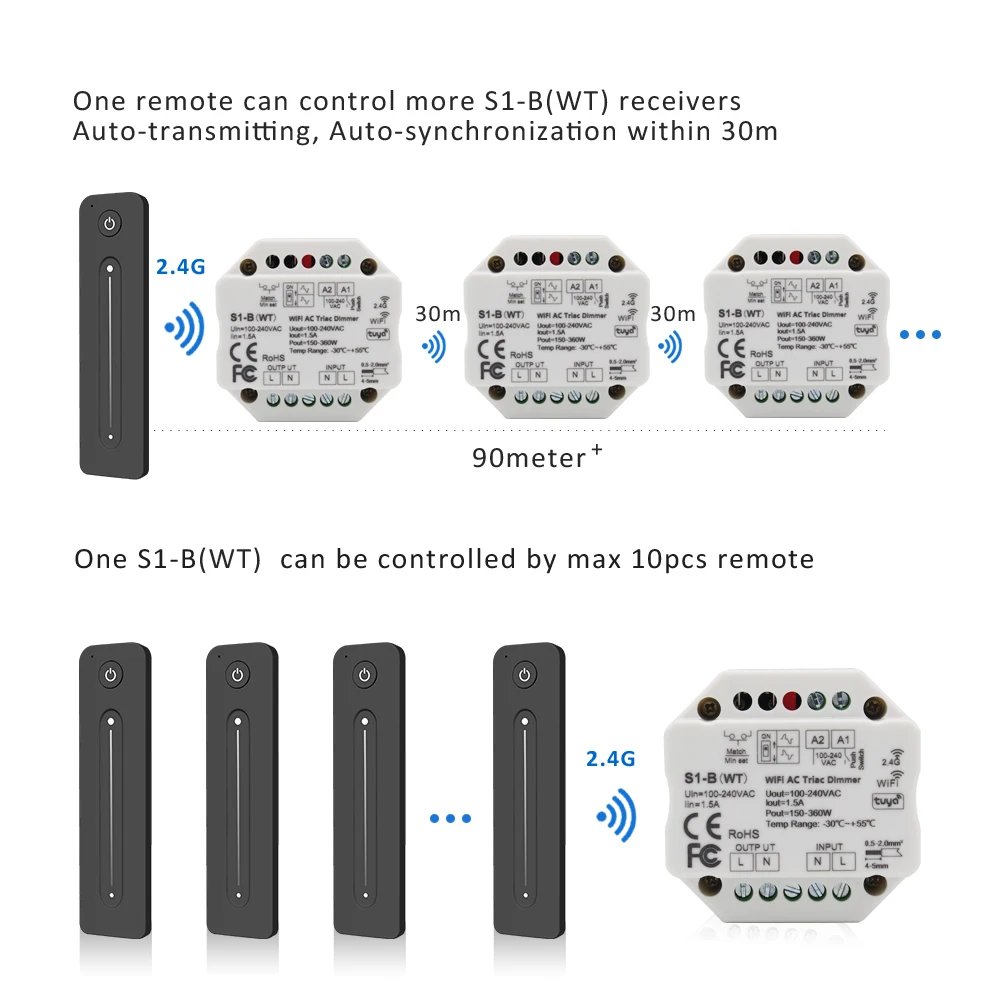

● Compatibility with RF 2.4G single zone or multiple zone dimming remote control.
● Each S1-B(WT) controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF dimming LED controller or driver
synchronously.

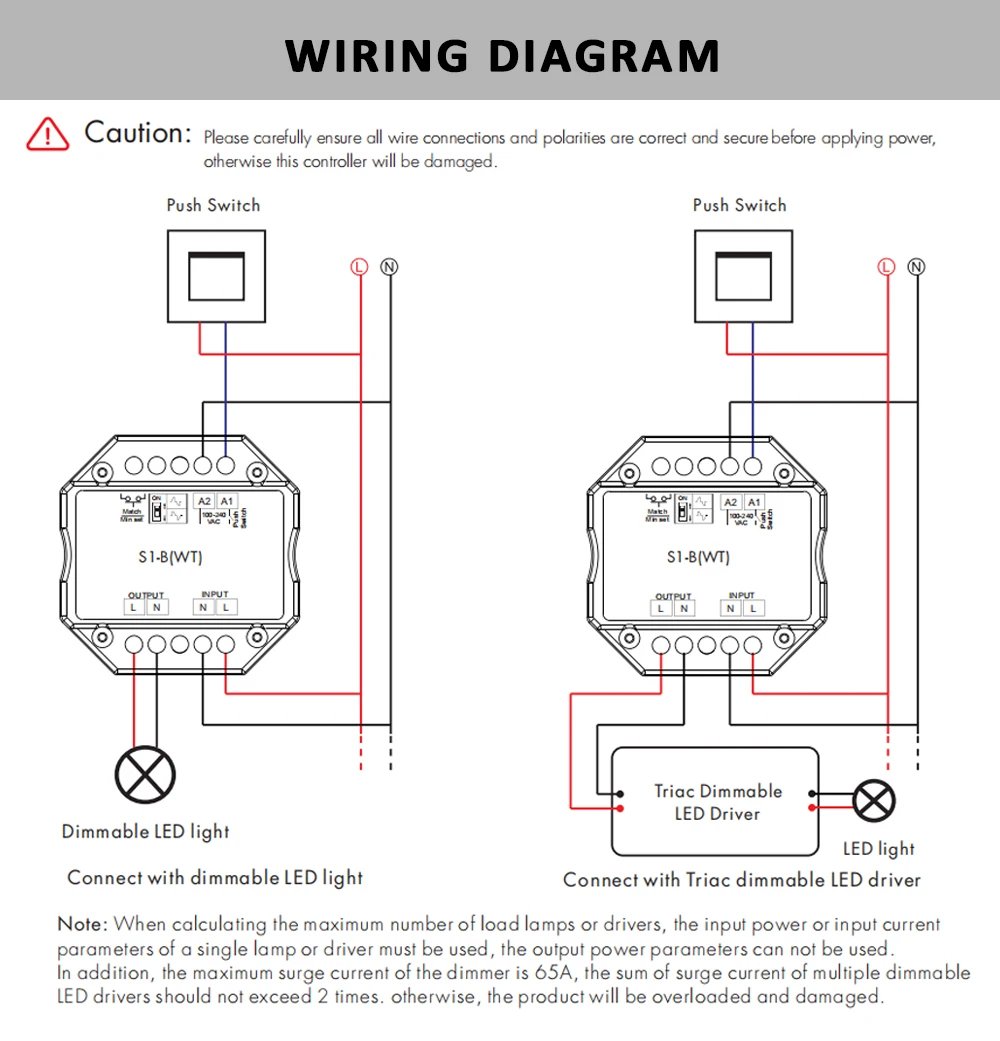

● Connect with external push switch to achieve on/off and 0-100% dimming function.

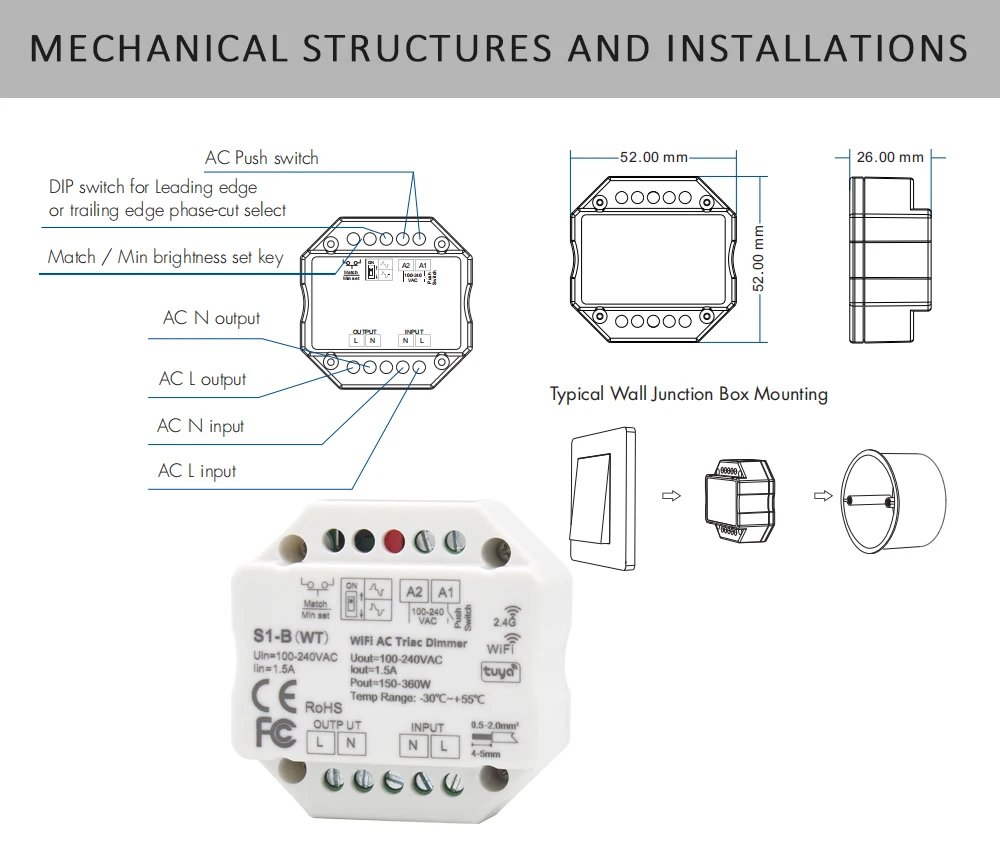

● Easy to be placed in standard wall junction box behind a push switch.
● Over-heat / Over-load protection, recover automatically.
Technical Parameters:
Input voltage: AC 100-240V
Output voltage: AC 100-240V
Output current: Max 1.5A
Output power: 150-360W
Input signal:Tuya APP + RF + Push Dim
RF Control distance: 30m
Dimming level:256 levels
Dimming range:0 -100%
Certification:CE,EMC,LVD
Min brightness setting:
1. Long press Min set key for 10s, the light blink 2 times, ready for min brightness set
2. then short press Min set key 1-6 times, to get 6 min brightness: 5%, 10%, 15%, 20%, 25% or 30%, the light will output the current min brightness immediately,
3. Wait 8s, quit min brightness set automatically, the light will return output 100% brightness.

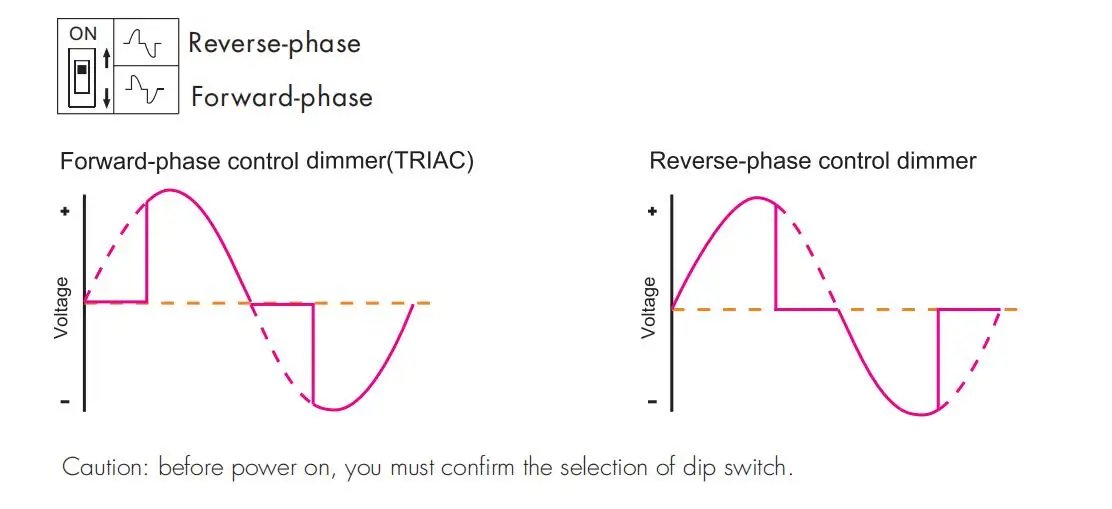

Leading edge or trailing edge dimming setting:
Select leading edge(forward-phase) dimmer or trailing edge(reverse-phase) dimmer according to dimmable LED light or driver.
***Caution: before power on, you must confirm the selection of dip switch.

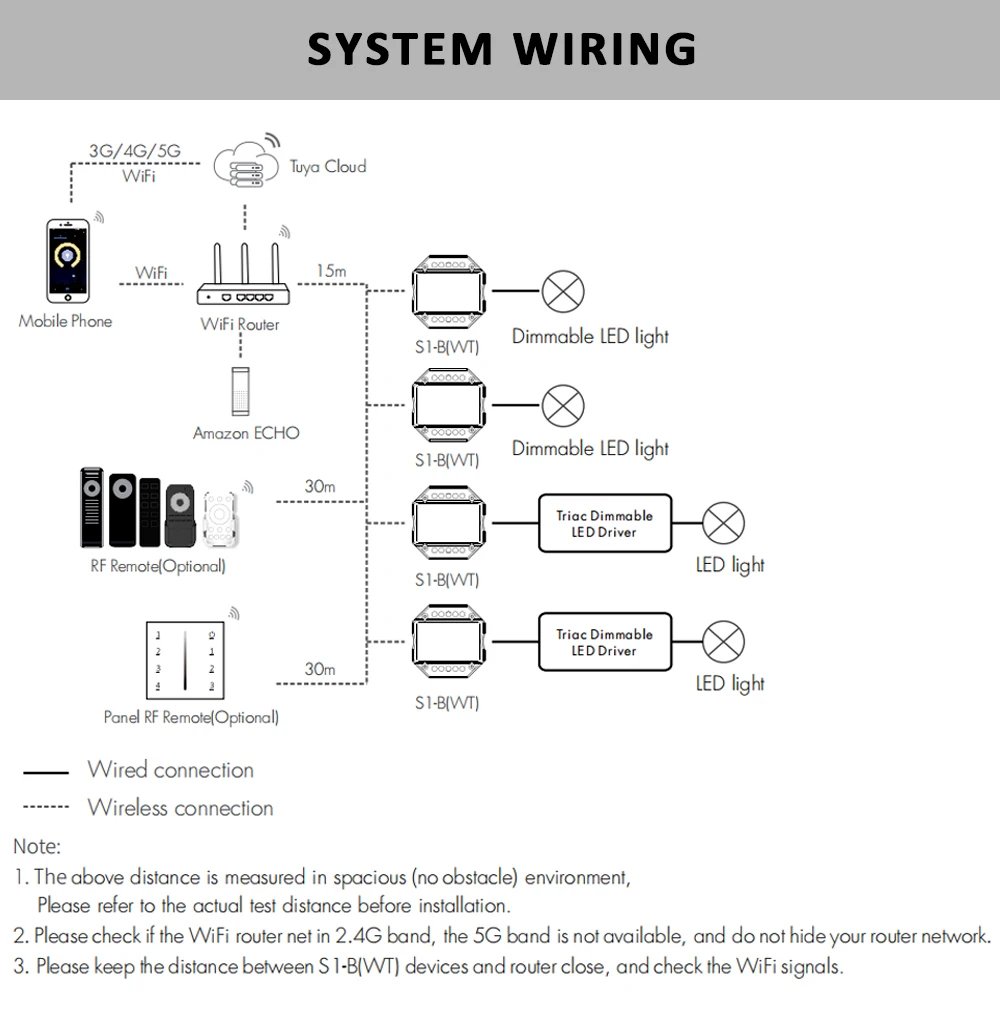

How to Work ?
The MJJC-S1-B(WT) Tuya dimmer work with Tuya app, 2.4G remote control, compatiable with smart speaker,like amazon alexa,echo, google assistant,etc.

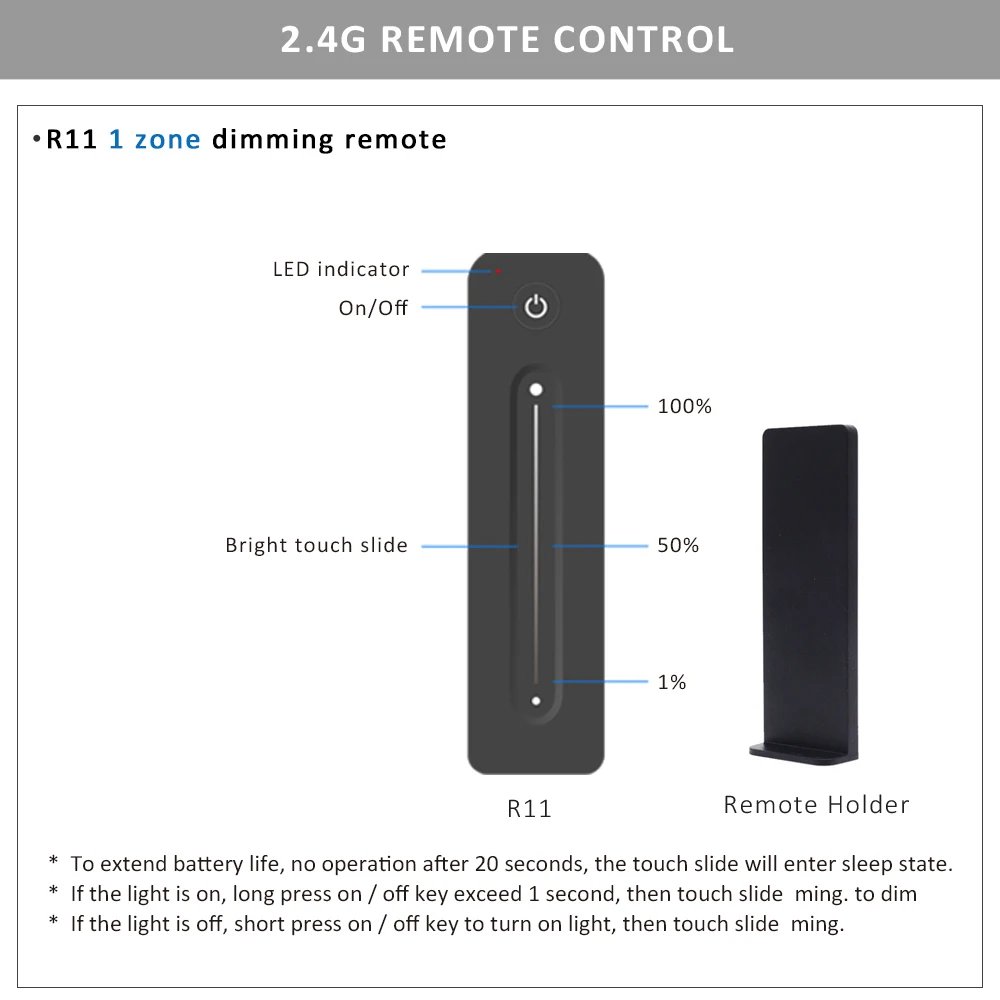

2.4G RF Wireless Remote Control Optional:

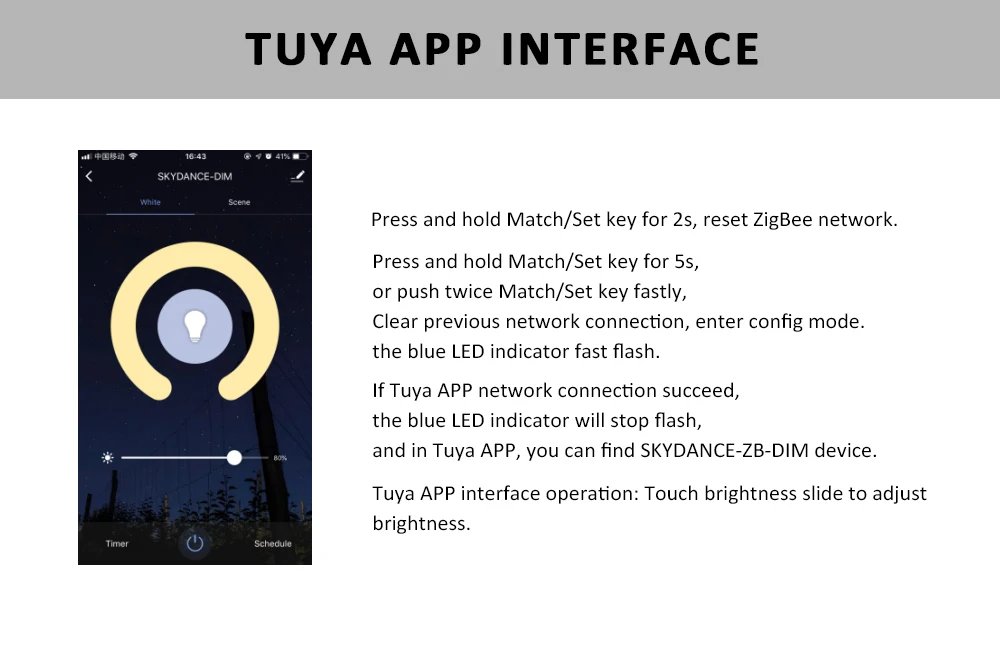

Tuya APP network connection and operation:
* Press and hold Match/Set key for 2s, or push twice Match/Set key fastly, Clear previous network connection, enter Smart config mode, the blue LED indicator fast flash.
* Press and hold Match/Set key for 5s: Clear previous network connection, enter AP config mode, the blue LED indicator fast slow.
If smart config failed, please try AP config.
* If Tuya APP network connection succeed, the blue LED indicator will stop flash, and in Tuya APP, you can find SKYDANCE-DIM device.
S1-B(WT) match RF remote control (Optional):
End user can choose the suitable match/delete ways. Two options are offered for selection:
(1). Use the S1-B(WT)’s Match key
***Match:
Short press match key of S1-B(WT), immediately press on/off key (single zone remote) or zone key (multiple zone remote) on the remote.
***Delete:
Press and hold match key of S1-B(WT) for 15s
to delete all match, The light blinks 5 times means all matched remotes were deleted.
(2). Use Power Restart
***Match:
Switch off the power of S1-B(WT), then switch on power again, immediately short press on/off key (single zone remote)or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
*** Delete:
Switch off the power of S1-B(WT), then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
S1-B(WT) work as WiFi-RF converter to match other RF dimming LED controller or driver
End user can choose the suitable match/delete ways. Two options are offered for selection:
(1). Use the controller’s Match key
***Match:
Short press match key of the controller, immediately press on/off key on the Tuya APP. The LED indicator fast flash a few times means match is successful.
***Delete:
Press and hold match key of the controller for 5s,
The LED indicator fast flash a few times
means all matched remotes were deleted.
(2). Use Power Restart
***Match:
Switch off the power of the controller, then switch on power again,
immediately short press on/off key 3 times on the Tuya APP.
The light blinks 3 times means match is successful.
.
***Delete:
Switch off the power of the controller, then switch on power again,
immediately short press on/off key 5 times on the Tuya APP.
The light blinks 5 times means all matched remotes were deleted.
Package Including:
1 pc S1-B(WT) Dimmer Only

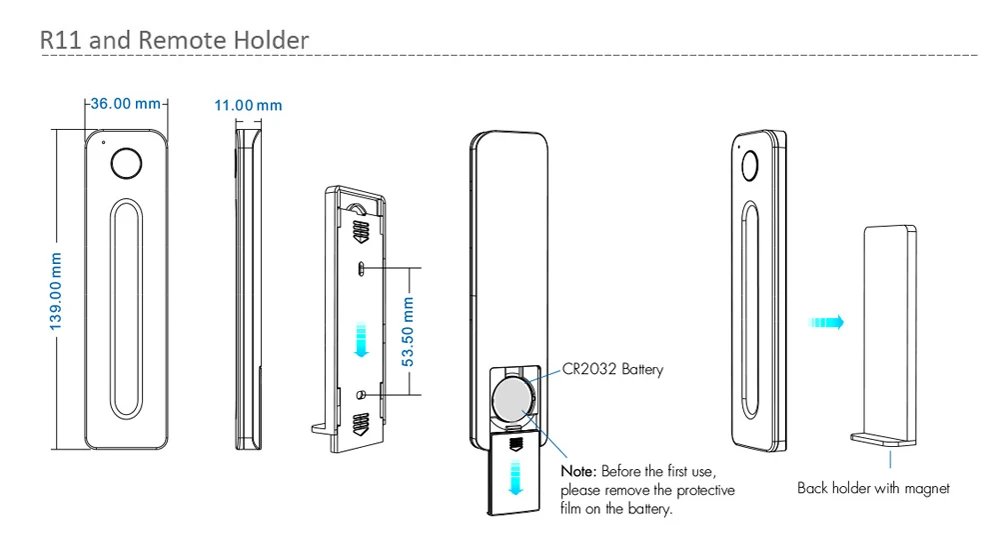

or 1 pc S1-B(WT) and R11 Set(The remote R11 does not include batteries)
