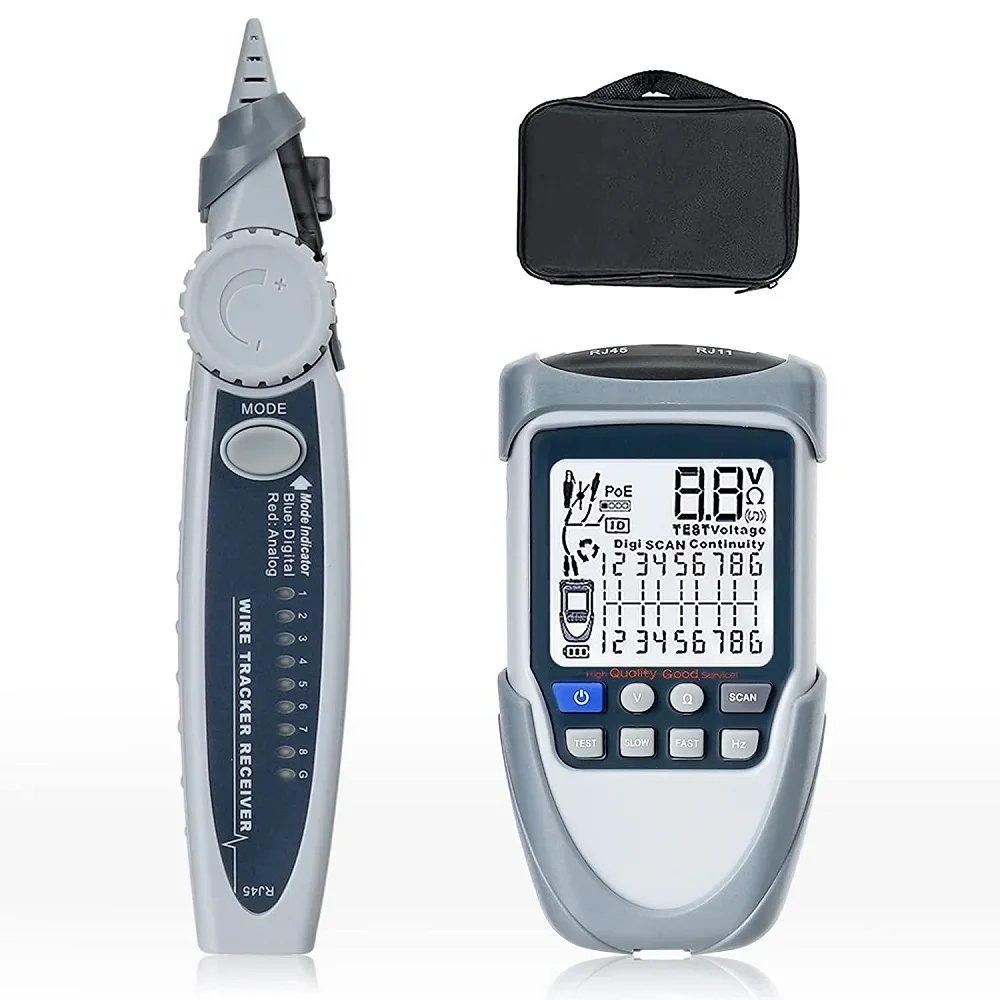

This handheld portable network cable tester is a practical tool for all kinds of communication lines and engineering maintenance personnel. It helps you quickly and efficiently find the cable you need from a large number of cables.
Features:
Support 3 modes freely switch : POE mode, digital mode and analogs mode.
POE testing function: Used for testing standard and non-standard POE device, it can also test POE voltage, power supplys polarity and power supplys mode
Voltagee test function: You can click “V” to enter the voltage test function, which can measure the battery voltage and voltage polarity and you can press “V” again to enter the POE test mode. You can measure the POE power supplys line and voltage.
Adjustable sensitivity:when receiving signal is strong, turn down the sound gear;when receiving sianal is weak, raise the sound gear, which can give you a more accurate testing data.
With LED flashlight function:The flashlight can be turned on in the dark environment to make detection and search more convenient
Large LCD Screen,intuitive and clear display the test result
Widely Application: computers network, video network, optical communication engineering and other metal wire line occasions.
Specifications:
Material: ABS
Type: ET612/ET613 (optional)
Power:
Transmitter: 3*AA battery (NOT INCLUDED)
Receiver: 9V (NOT INCLUDED)
Analogue cable tracing: √
Digitalized cable tracing: √
Tracking cables with PoE support: √
Identity wire peers & quality of wire connections: √
Battery voltage polarity checking: √
Battery Voltage measurment (for reference only): √
PoE voltage polarity checking: √
PoE Voltage measurment (for reference only): √
Split pair: √
Breakpoint checking: √
Continuity test: √
Tracing signal transmission distance: 3Km
Output signals level: ~15Vp-p
Vibration indication: ONLY ET613
Flashlight: √
Loudness adjustable: √
Low battery indicator: √
Package size: 220*148*50mm/8.7*5.8 * 2.0in
Package weight: 389g / 13.7ounce
Notice:
1. Do not directly search for cables that have been connected to strong current (such as wires at home), otherwise it may cause personal injury and equipment damage.
2. The host LCD screen or line finder POWER light flashes, indicating that the battery voltage is low, please replace the battery.
Packing list:
1 * Transmitter
1 * Receiver
3 * Cables
