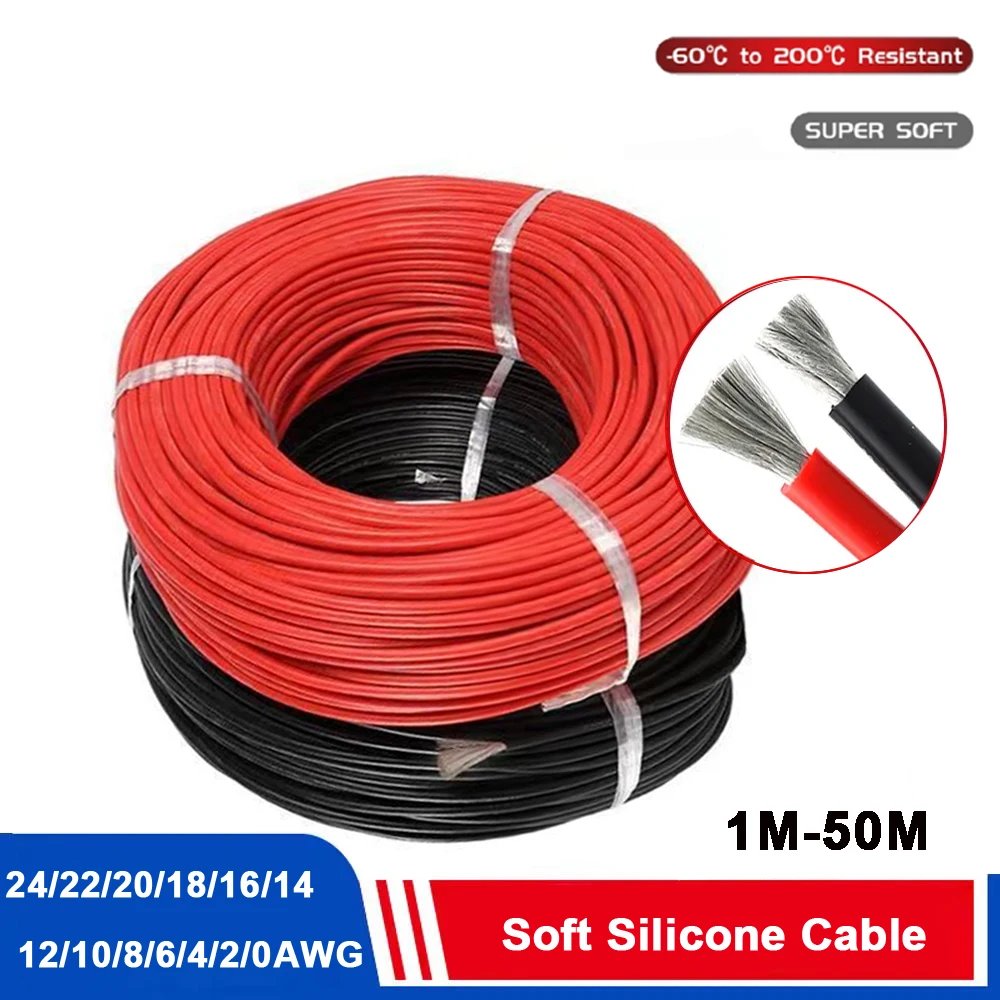

Super Soft Silicone red black Wire 12 14 16 18 20 22 24 AWG Heat-resistant Car Battery Electrical Power Cable 10 8 6awg
Products are widely used in electronics, batteries, model aircraft battery, model wiring harness, electric appliance and equipment instrument internal connections,
Large transformer and lamps and lanterns and motor lead wire connection wire,ups,inverter,battery etc.

Description :
Insulation material:silicone
Conductor material:tinned copper
Rated voltage:600V
Wire gauge:24/22/20/18/16/14/12/10/8/6/4/3/2AWG
Inner-core diameter:0.08mm
Temperature range:-60°C~+200°C
Test Voltage : 2000 V
Application:Products are widely used in car battery,Lithium battery, inverter, model airplane, audio, industrial robot arm, LED light, spotlight,high-speed motor,etc.
Specification table:
|
Specifications (AWG) |
Copper wire shares (compos.NO./OD) |
Insulation thickness (mm) |
Diameter (mm) |
Overall diameter (mm) |
Conductor resistance (Ohm/km) |
Sectional area (mm2) |
Carrying current (ampere) |
packing (M/coils) |
|
50 |
10000/0.08TS |
2.4 |
9.24 |
14 |
0.63 |
50 |
300 |
50 |
|
2AWG |
6700/0.08TS |
2.6 |
7.73 |
12.5 |
0.89 |
35 |
250 |
50 |
|
4AWG |
5000/0.08TS |
2.4 |
6.53 |
11 |
1.25 |
25 |
200 |
50 |
|
6AWG |
3200/0.08TS |
1.65 |
5.23 |
8.5 |
1.9 |
16 |
150 |
100 |
|
8AWG |
1650/0.08TS |
1.5 |
3.75 |
6.3 |
3.7 |
8.3 |
90 |
100 |
|
10AWG |
1050/0.08TS |
1.3 |
3 |
5.45 |
6.3 |
5.3 |
70 |
100 |
|
12AWG |
680/0.08TS |
1 |
2.41 |
4.5 |
9.8 |
3.4 |
40 |
100 |
|
14AWG |
400/0.08TS |
0.9 |
1.85 |
3.5 |
15.6 |
2 |
25 |
200 |
|
16AWG |
252/0.08TS |
0.75 |
1.47 |
3 |
24.4 |
1.27 |
15 |
200 |
|
18AWG |
150/0.08TS |
0.55 |
1.13 |
2.3 |
39.5 |
0.75 |
10 |
200 |
|
20AWG |
100/0.08TS |
0.45 |
0.92 |
1.8 |
62.5 |
0.5 |
6 |
400 |
|
22AWG |
60/0.08TS |
0.45 |
0.72 |
1.7 |
88.6 |
0.3 |
4 |
400 |
|
24AWG |
40/0.08TS |
0.5 |
0.58 |
1.6 |
97.6 |
0.2 |
2 |
400 |
Product Details

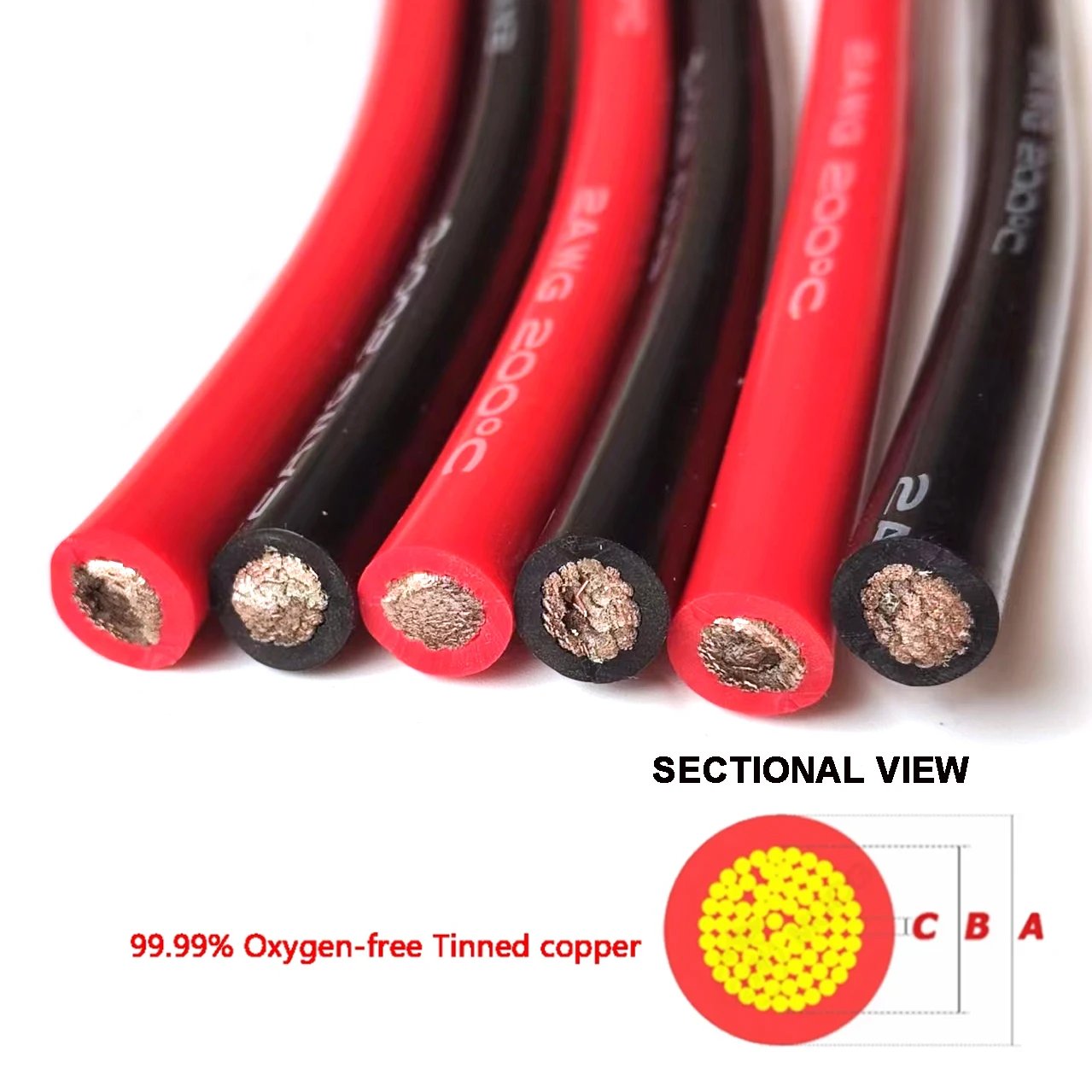

Silicone Insulator
Silica gel has excellent high temperature and low temperature resistance, excellent high pressure resistance, aging resistance,acid and alkali resistance,long service life, soft and flexible, and easy to install.

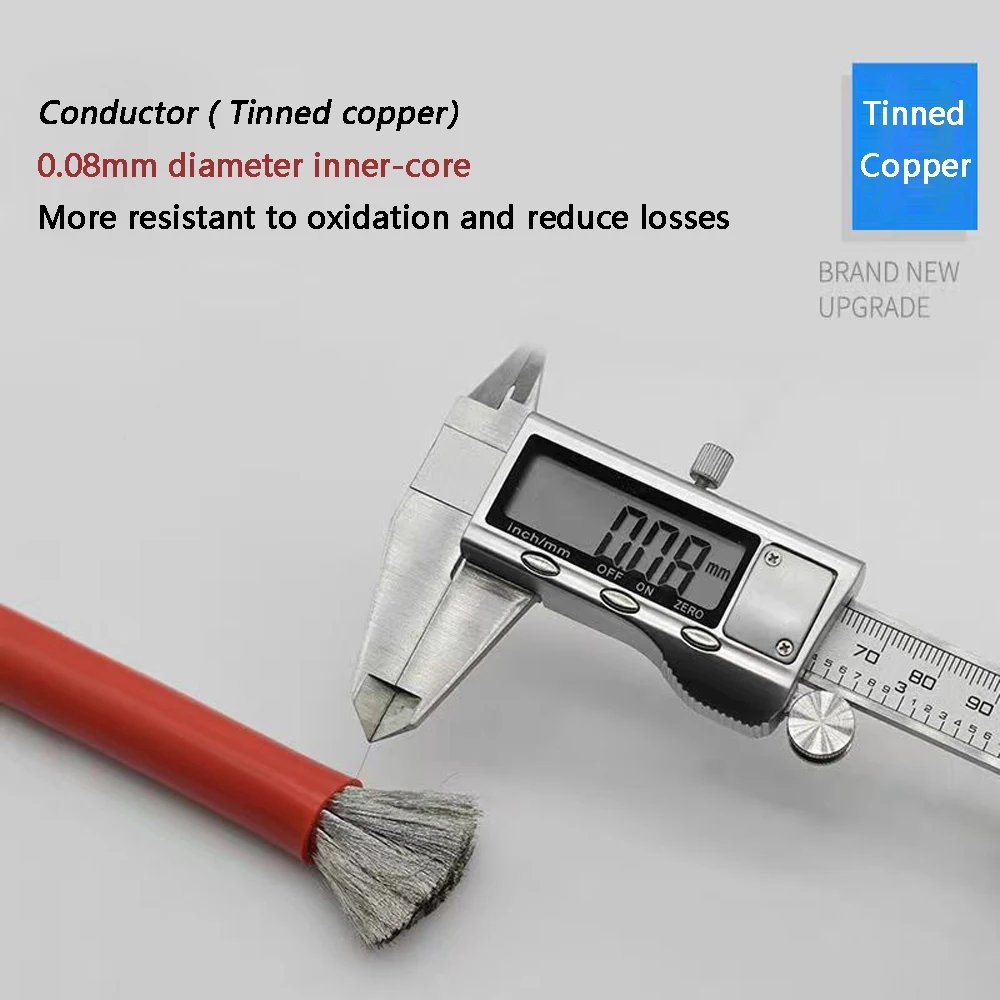

0.08mm Tinned Copper Core
The tin plated copper wire is made by coating the tinlayer concentrically on the copper core.it combines thecharacteristics of two metals with good electrical conductivity and bright and glossy surfaces,and the tinlayer has high corrosion resistance and making it easier to solder.

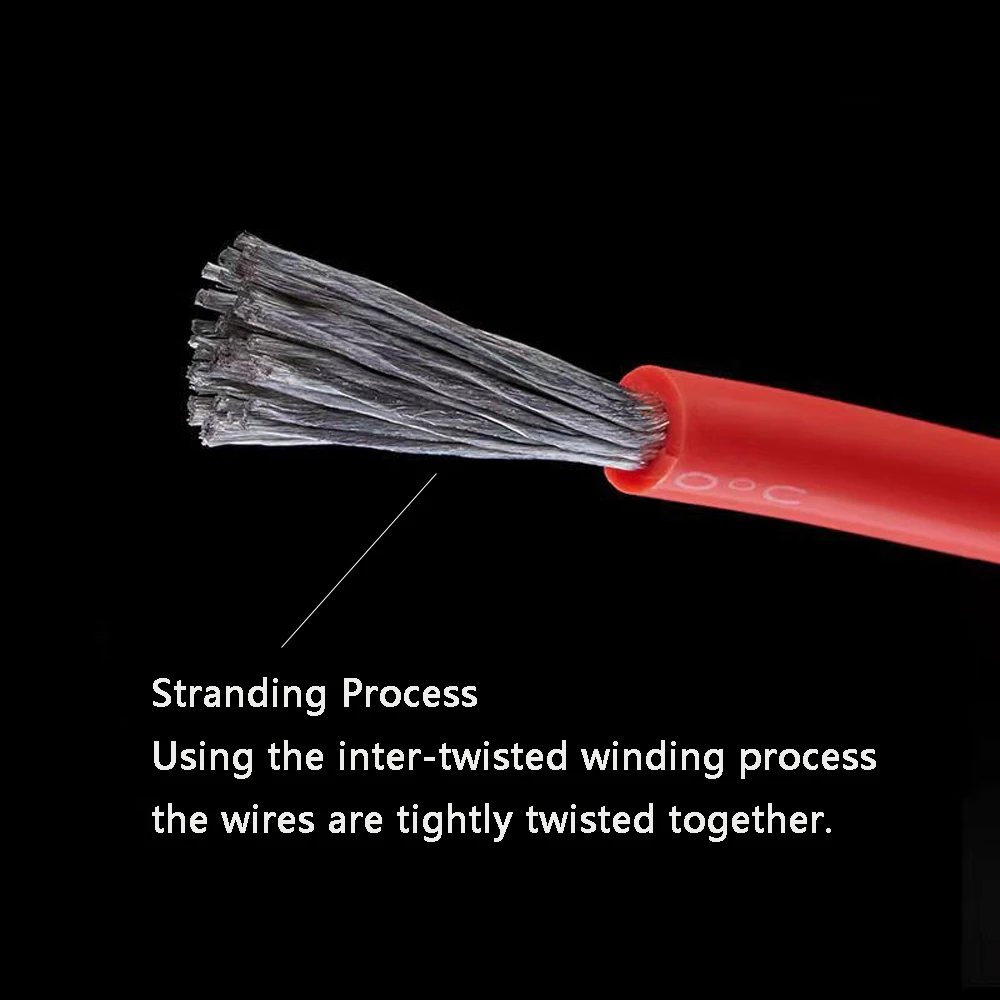

Stranding Process
Using the inter-twisted winding process, the wires are tightly twisted together to reduce signal interference and improve electrical conductivity.

Resistant To High And Low Temperature
Silicone wire can withstand the temperature of -60℃ to 200℃.
Product Shows
