Product Details

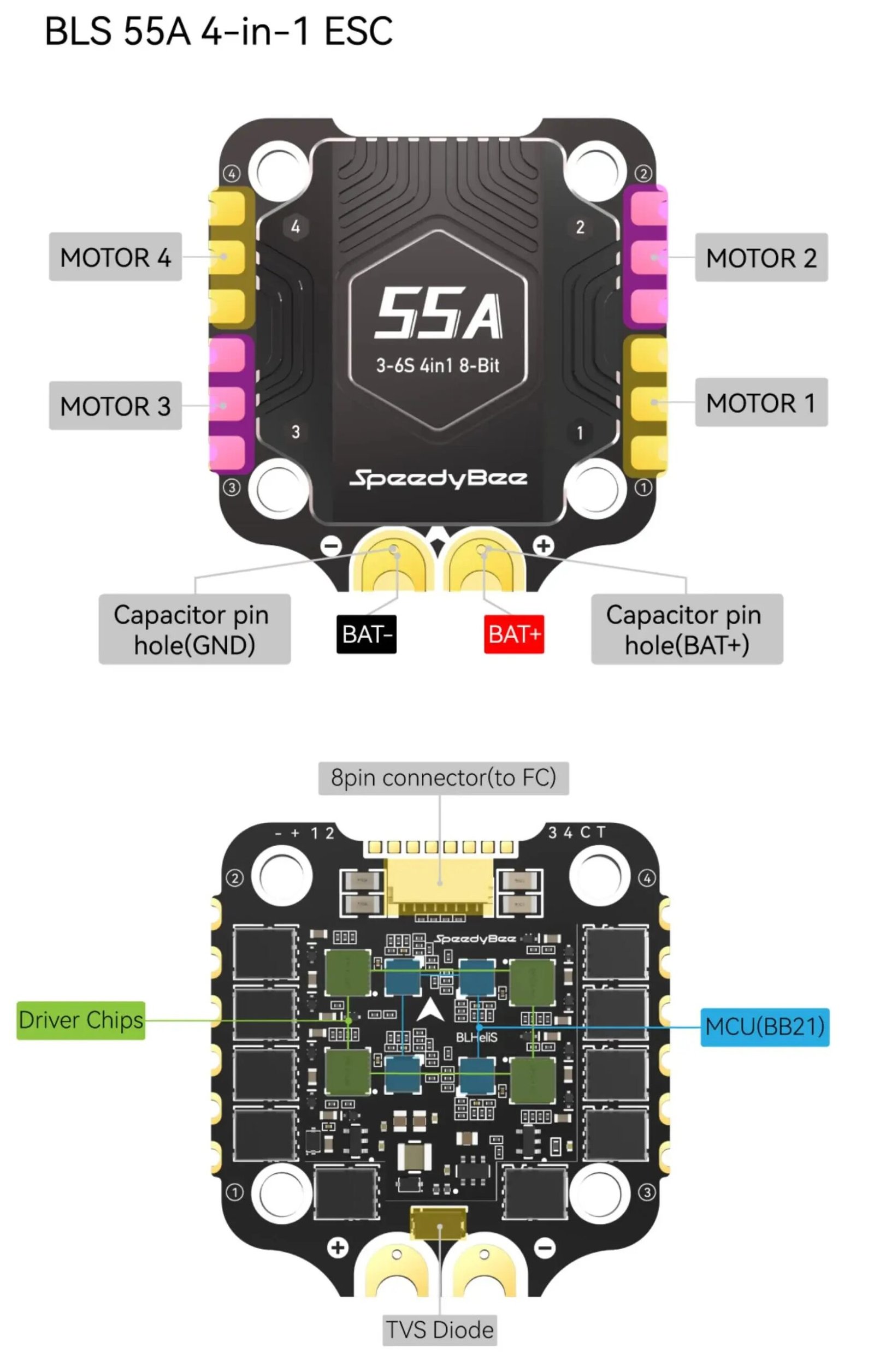

Product Name	SpeedyBee BLS 55A 30×30 4-in-1 ESC
Firmware	BLHeli_S J-H-40

Continuous Current	55A * 4
Burst Current	70(10 seconds)
TVS Protective diode	Yes
External Capacitor	1000uF Low ESR Capacitor(In the package)
ESC Protocol	DSHOT300/600
Power Input	3-6S LiPo
Power Output	VBAT
Current Sensor	Support (Scale=400 Offset=0)
ESC Telemetry	Not supported
Mounting	30.5 x 30.5mm( 4mm hole diameter)
Dimension	45.6(L) * 44(W) *8mm(H)
Weight	23.5g

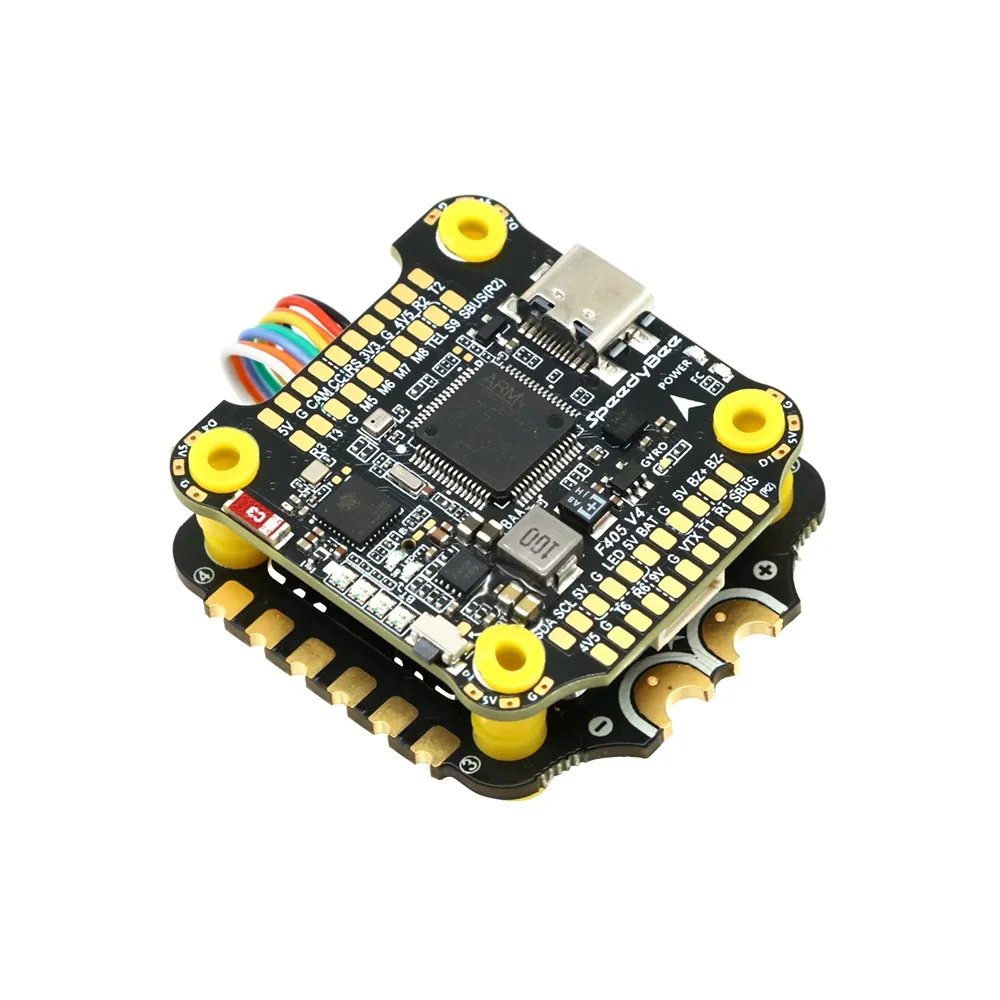

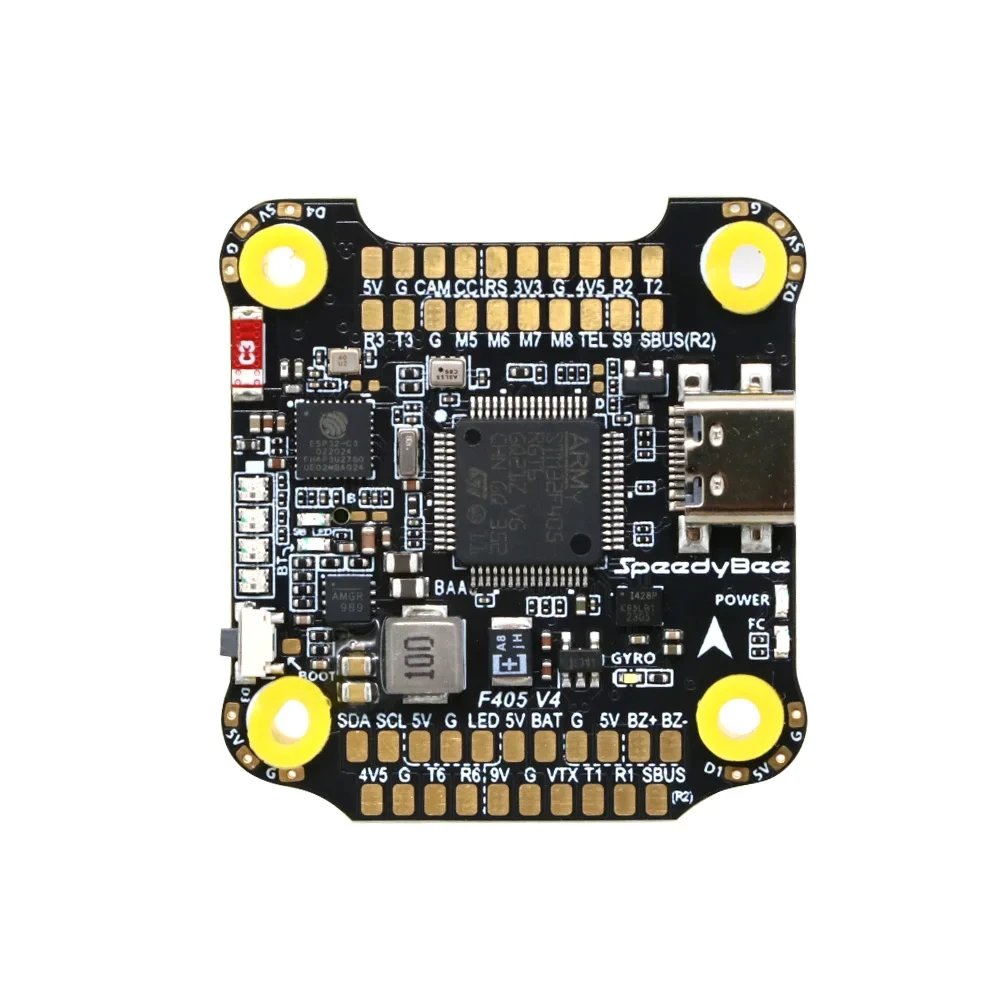

Product Name	SpeedyBee F405 V4 30×30 Flight Controller
MCU	STM32F405

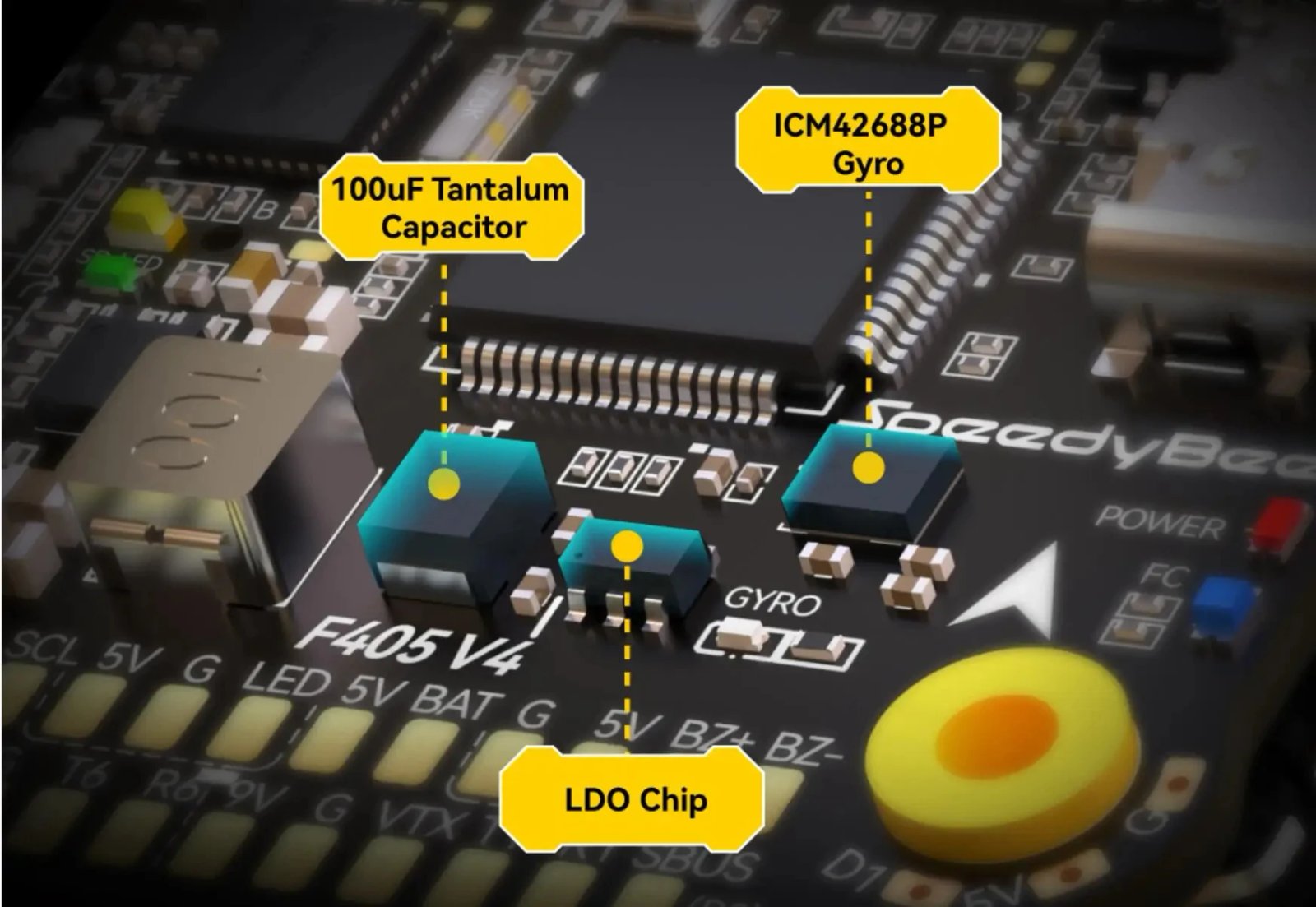

IMU(Gyro)	ICM42688P
USB Port Type	Type-C
Barometer	Built-in
OSD Chip	AT7456E chip

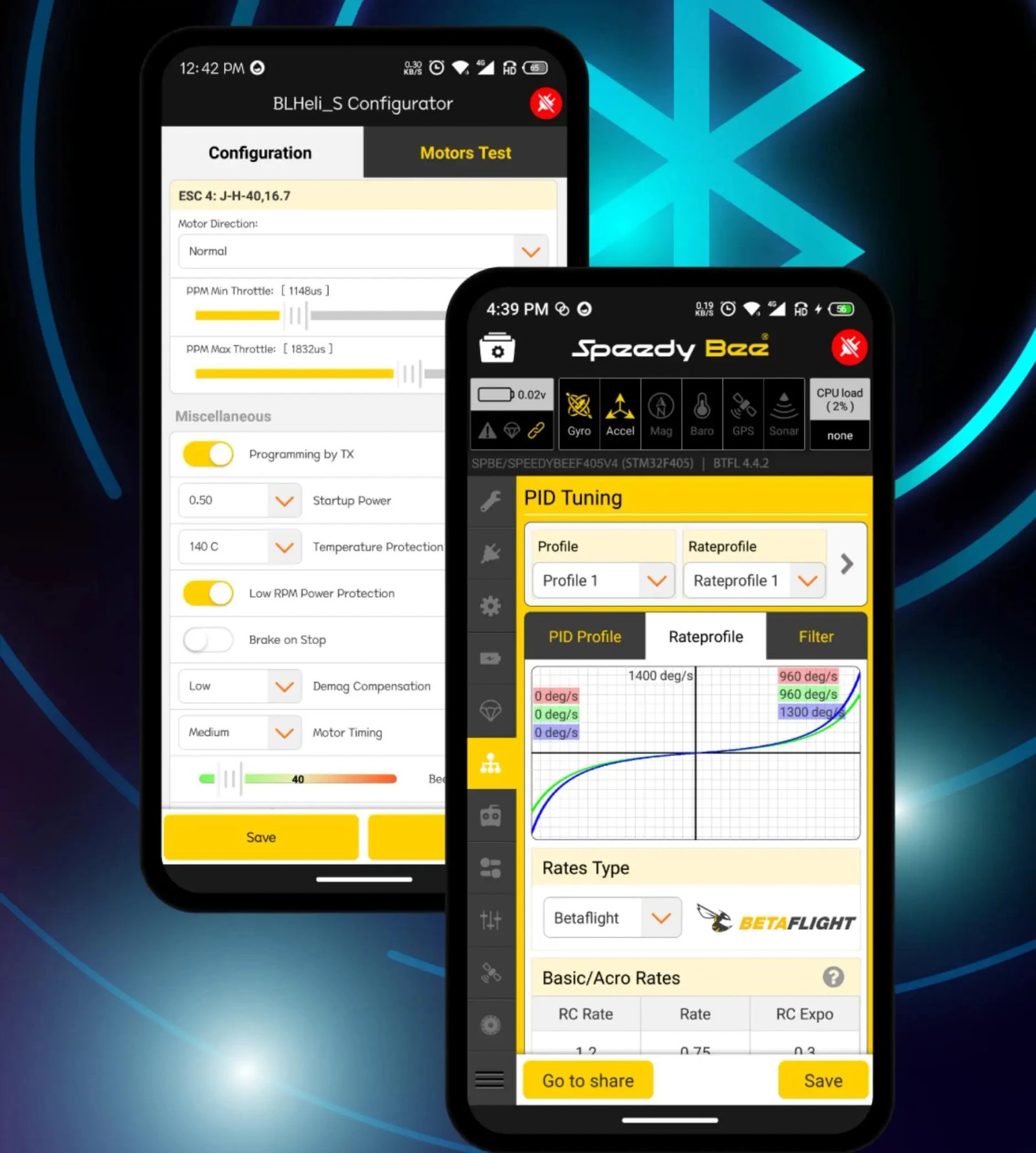

BLE Bluetooth	Supported. Used for Flight Controller configuration(MSP should be enabled with Baud rate 115200 on UART4)
WIFI	Not supported

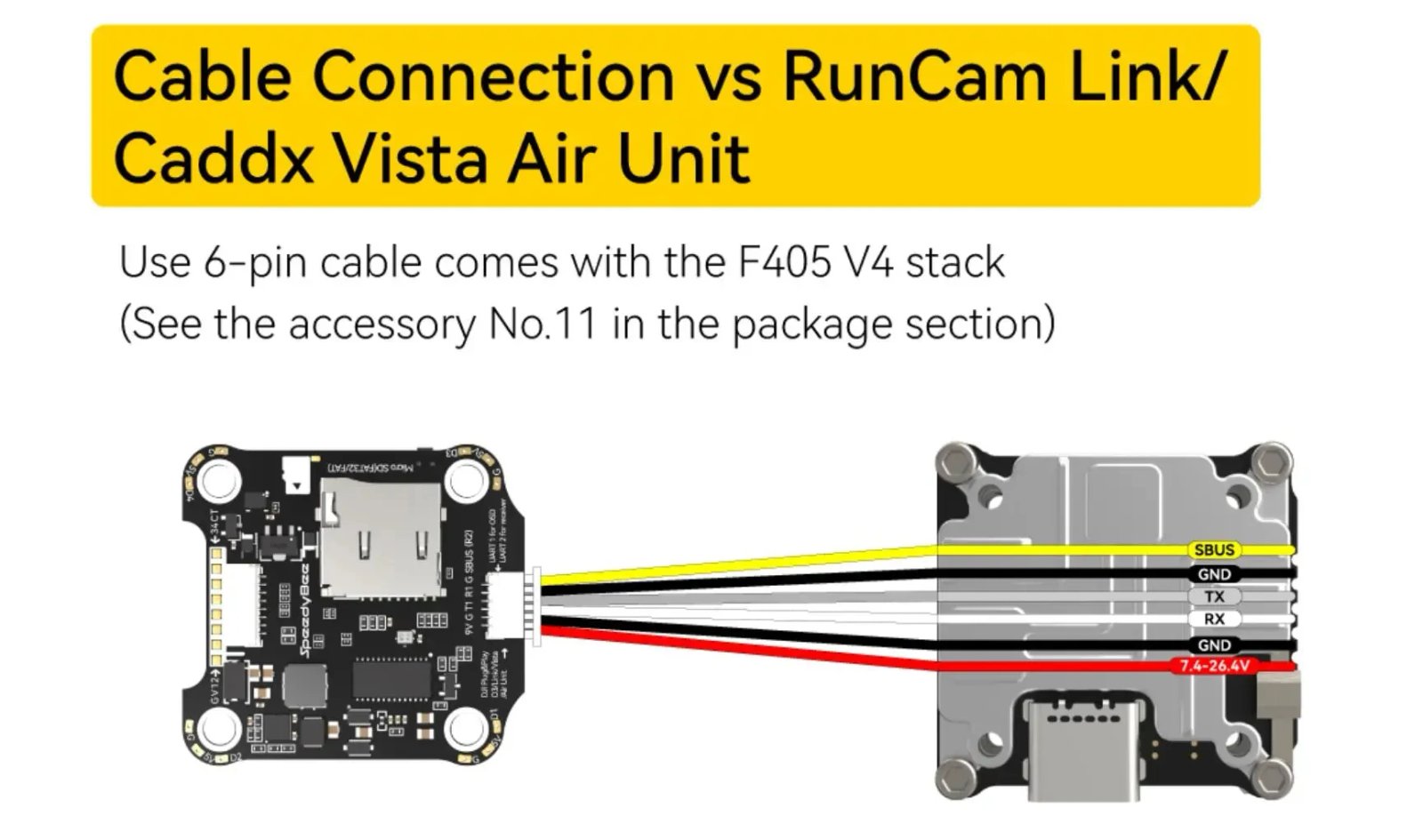

DJI Air Unit Connection Way	Two ways supported: 6-pin connector or direct soldering.

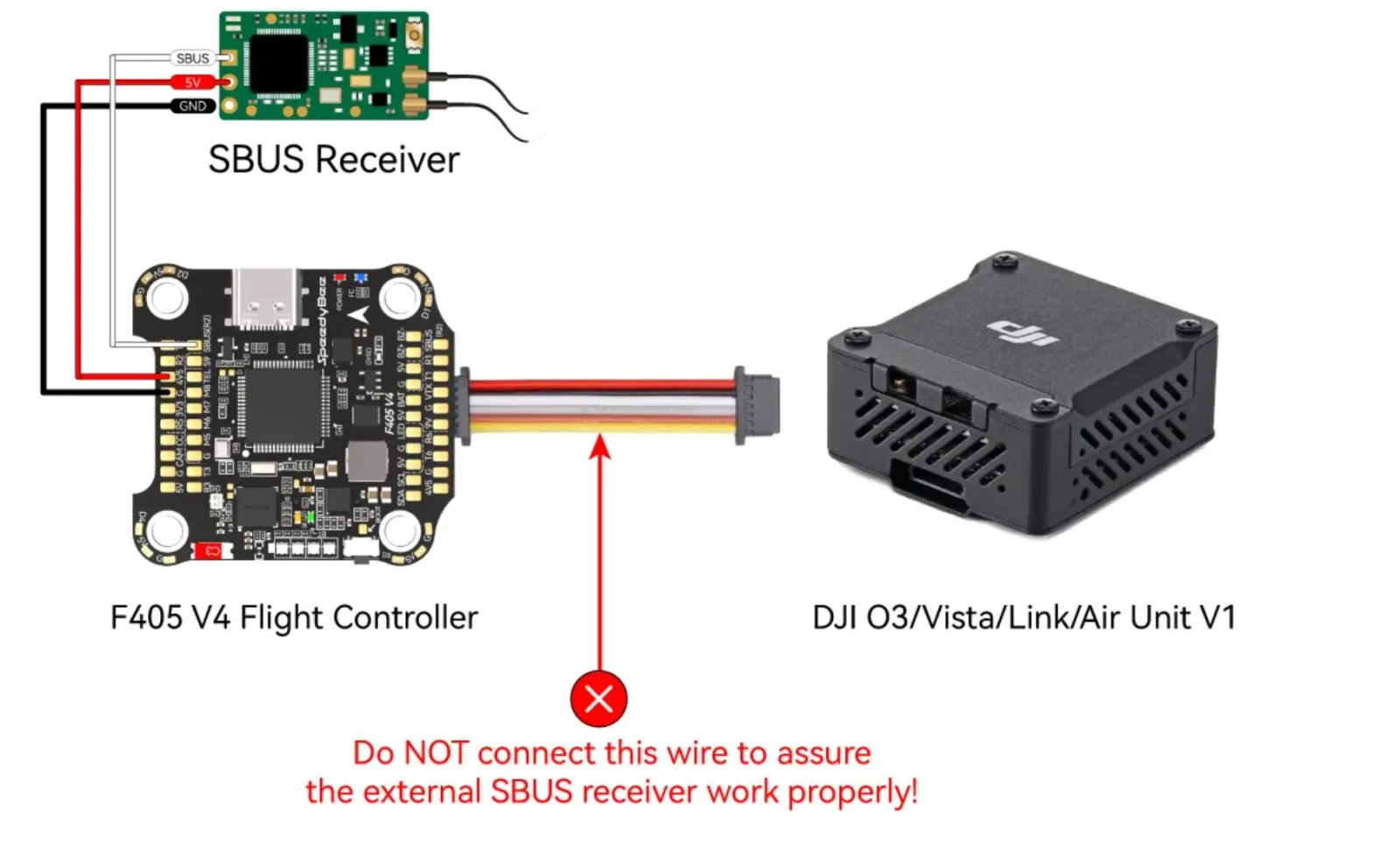

6-pin DJI Air Unit Plug	Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.

Current Sensor Input	Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.
Power Input	3S – 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output	9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.
9V Output	2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.
3.3V Output	Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V Output	Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal	M1 – M4 on bottom side and M5-M8 on front side.
UART	6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
ESC Telemetry	UART R5(UART5)
I2C	Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad	Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer	BZ+ and BZ- pad used for 5V Buzzer
BOOT Button	Supported. [A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked. [B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input	Supported. Named as RS on the front side.
Smart Port / F.Port	Not supported
Supported Flight Controller Firmware	BetaFlight(Default), INAV
Firmware Target Name	SPEEDYBEEF405V4
Mounting	30.5 x 30.5mm( 4mm hole diameter)
Dimension	41.6(L) x 39.4(W) x 7.8(H)mm
Weight	10.5g

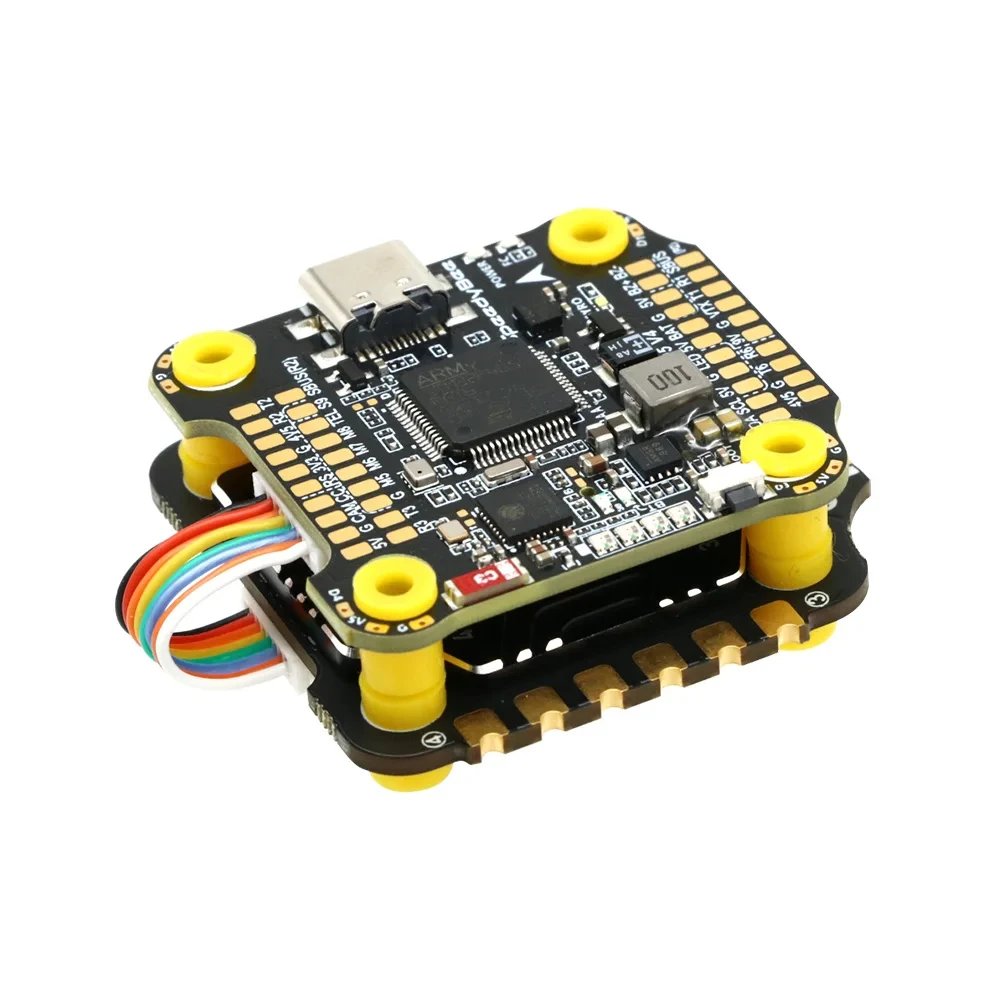

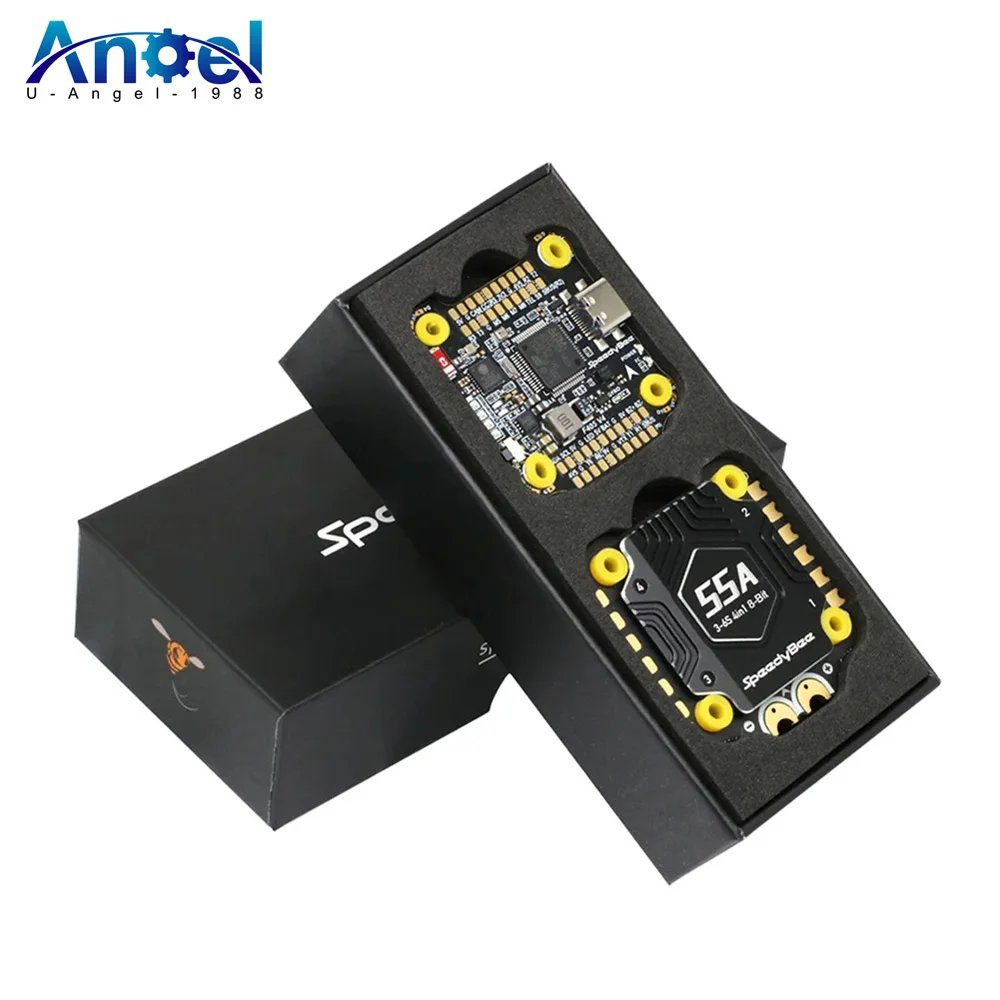

Speedybee F405 V4 Stack BLS 55A 4-in-1 ESC&FC 30x30 RC iNAV Betaflight Configure Bluetooth 3-6S FPV 5-8 inch frame Drone Parts

Specifications

Brand Name:

U-Angel-1988

Hign-concerned Chemical:

none

Is Electric:

No battery

Origin:

Mainland China

Material:

Metal

Recommend Age:

14+y

RC Parts & Accs:

Speed Controllers

Size:

30.5*30.5mm

For Vehicle Type:

Airplanes

Use:

Vehicles & Remote Control Toys

Upgrade Parts/Accessories:

speedybee f405 v3 50a stack

Remote Control Peripherals/Devices:

ESC

Tool Supplies:

Speedybee F405 V4 Stack

Quantity:

1 pcs

Technical parameters:

value 2

Model Number:

RUM034

Four-wheel Drive Attributes:

speedybee f405 v4 55a stack

Wheelbase:

Screws

Choice:

yes
