Product Details

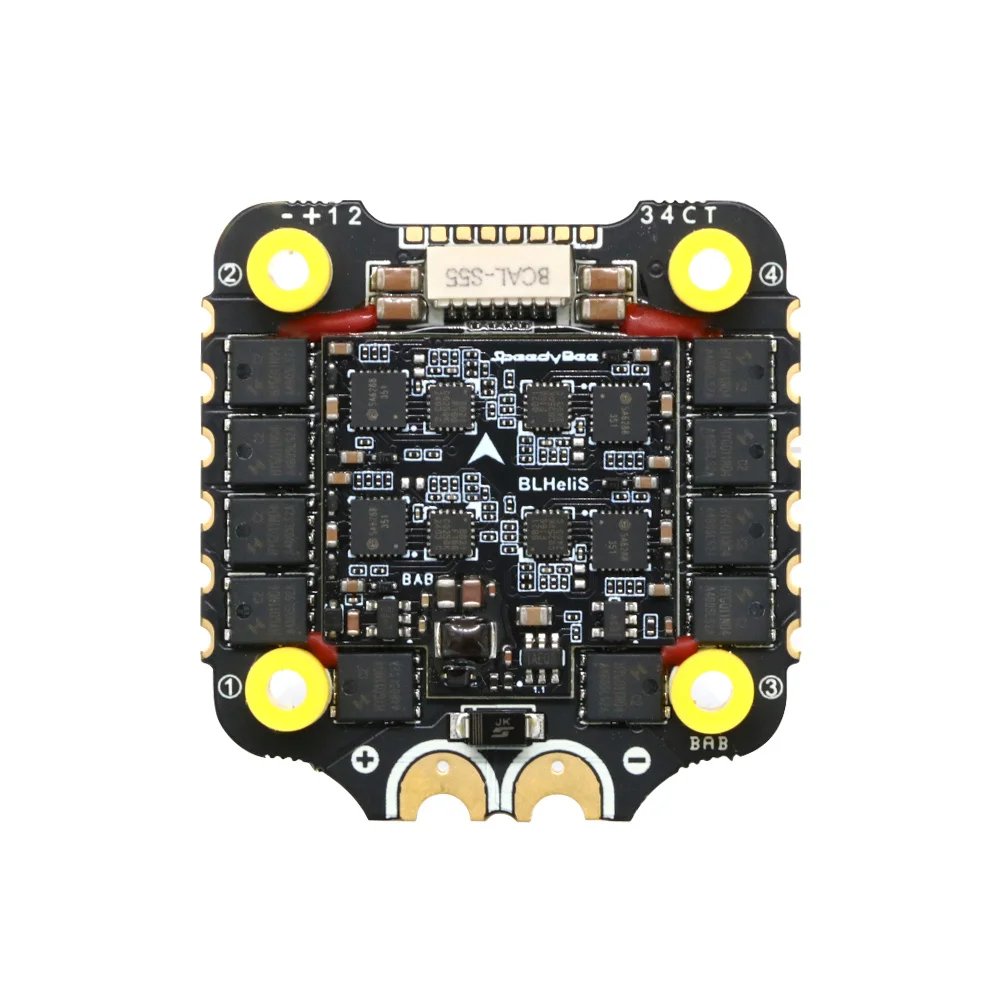

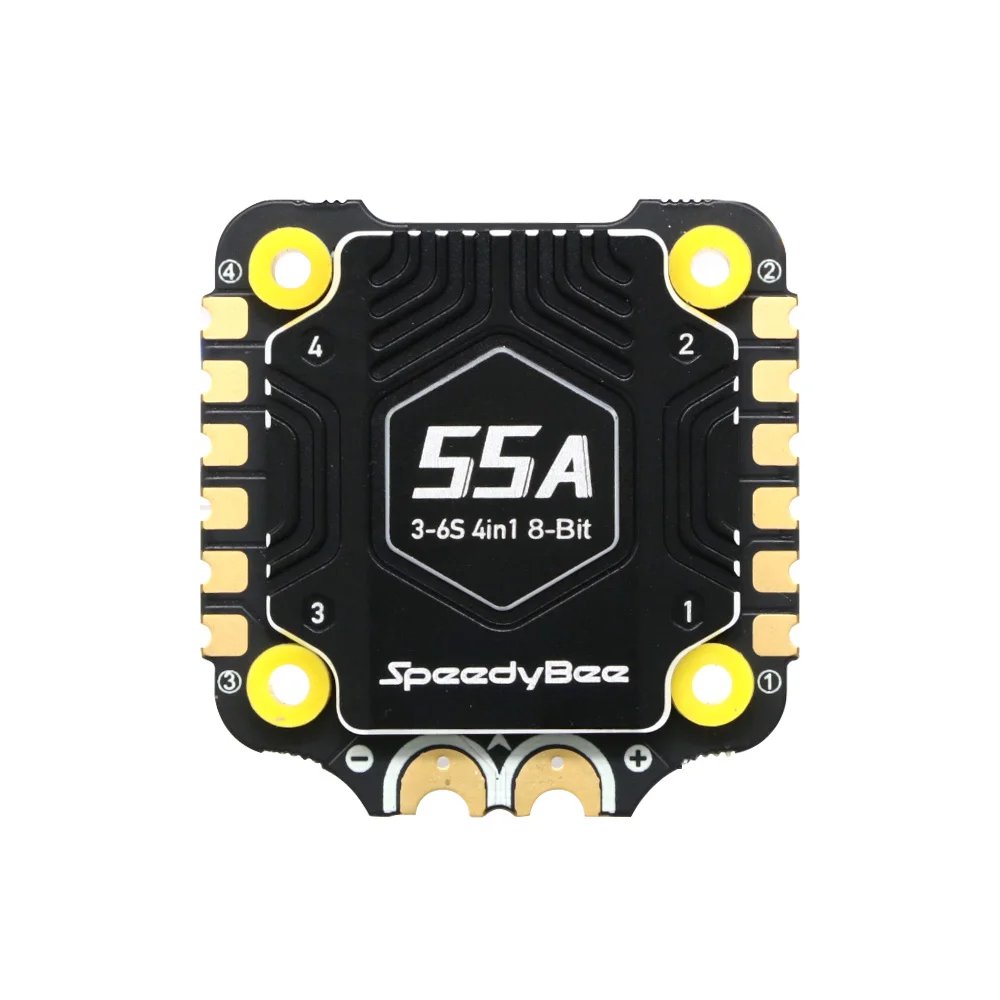

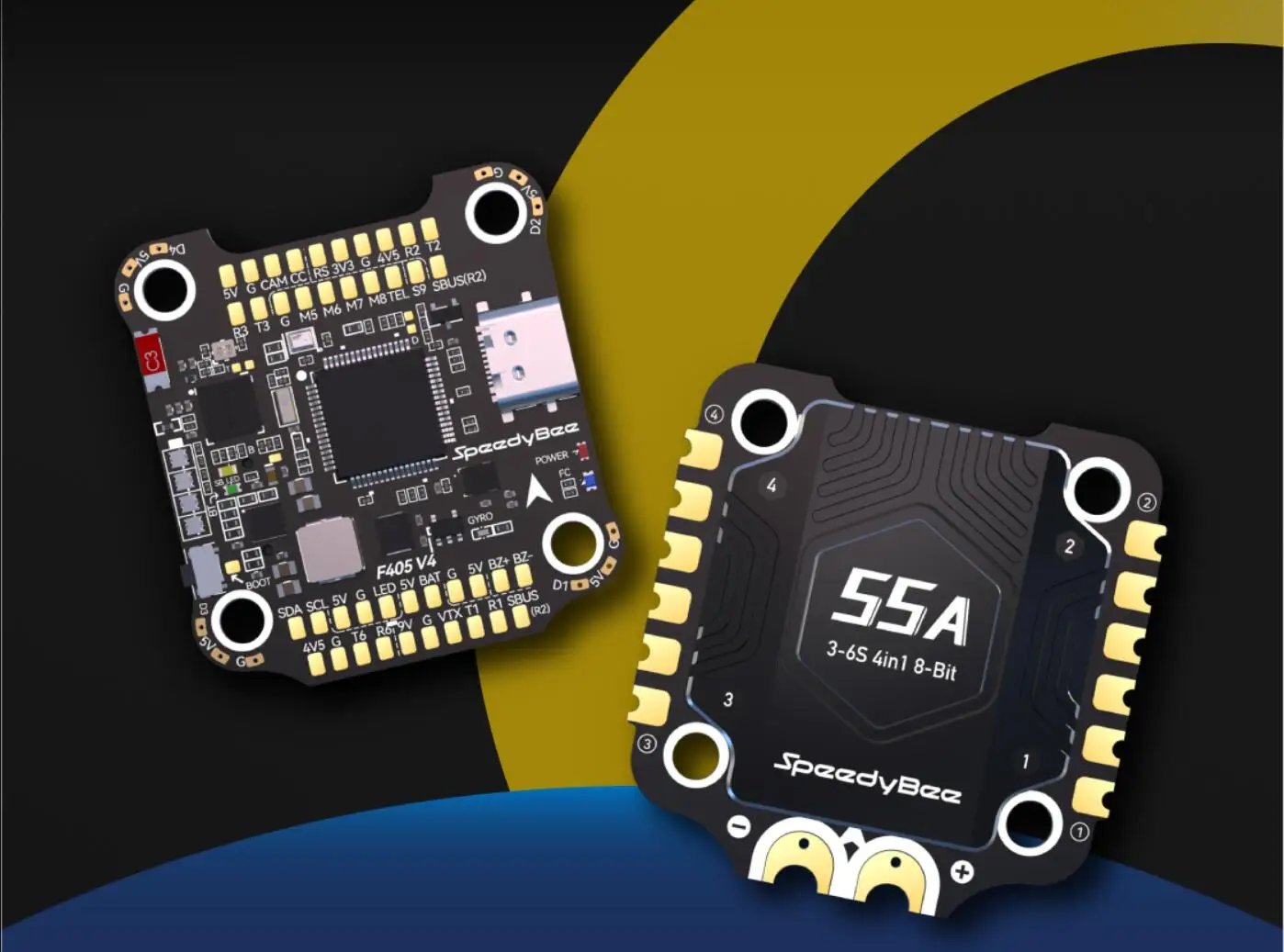

Product Name SpeedyBee BLS 55A 30×30 4-in-1 ESC
Firmware BLHeli_S J-H-40
Continuous Current 55A * 4
Burst Current 70(10 seconds)
TVS Protective diode Yes

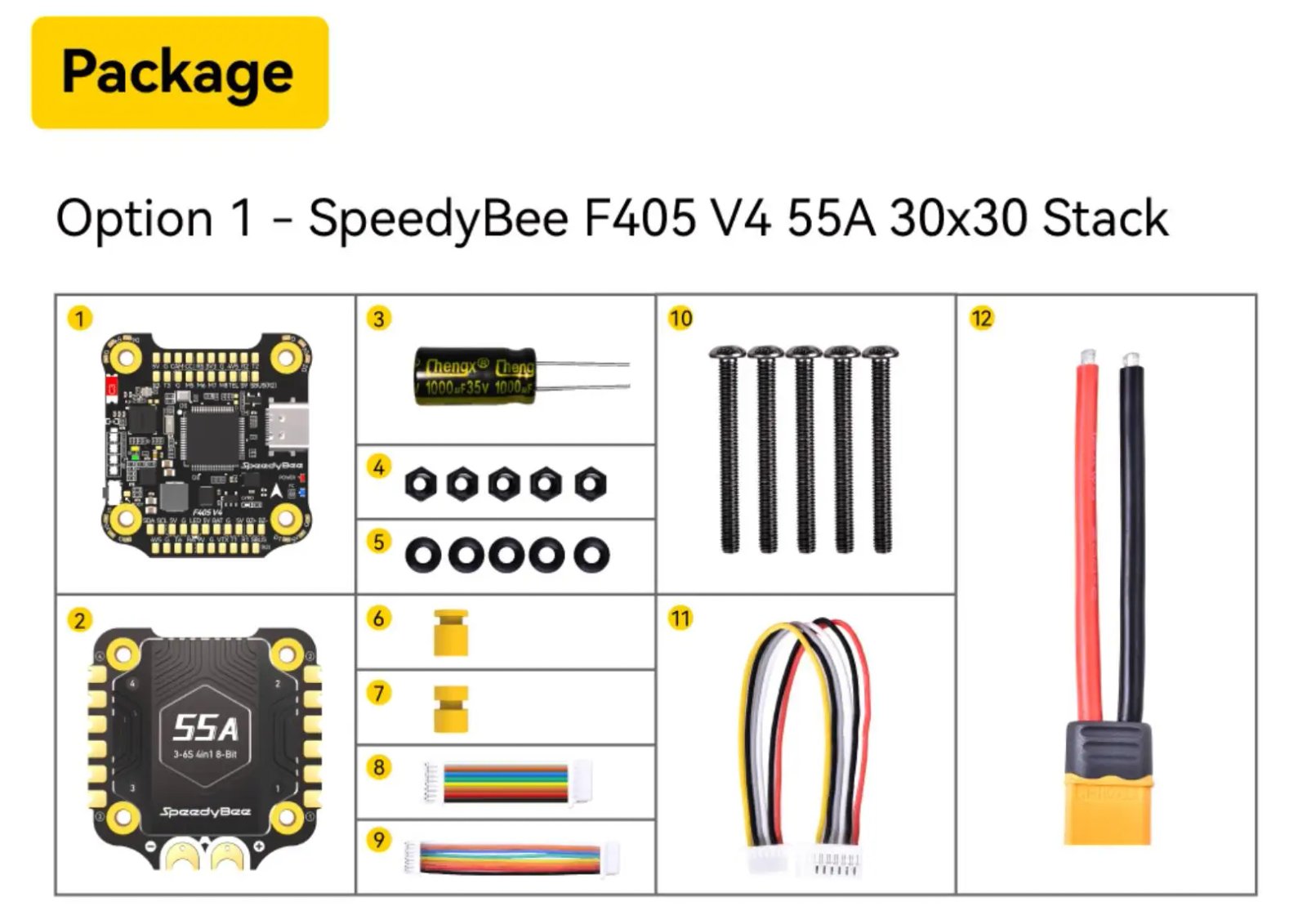

External Capacitor 1000uF Low ESR Capacitor(In the package)
ESC Protocol DSHOT300/600
Power Input 3-6S LiPo
Power Output VBAT
Current Sensor Support (Scale=400 Offset=0)
ESC Telemetry Not supported
Mounting 30.5 x 30.5mm( 4mm hole diameter)
Dimension 45.6(L) * 44(W) *8mm(H)
Weight 23.5g

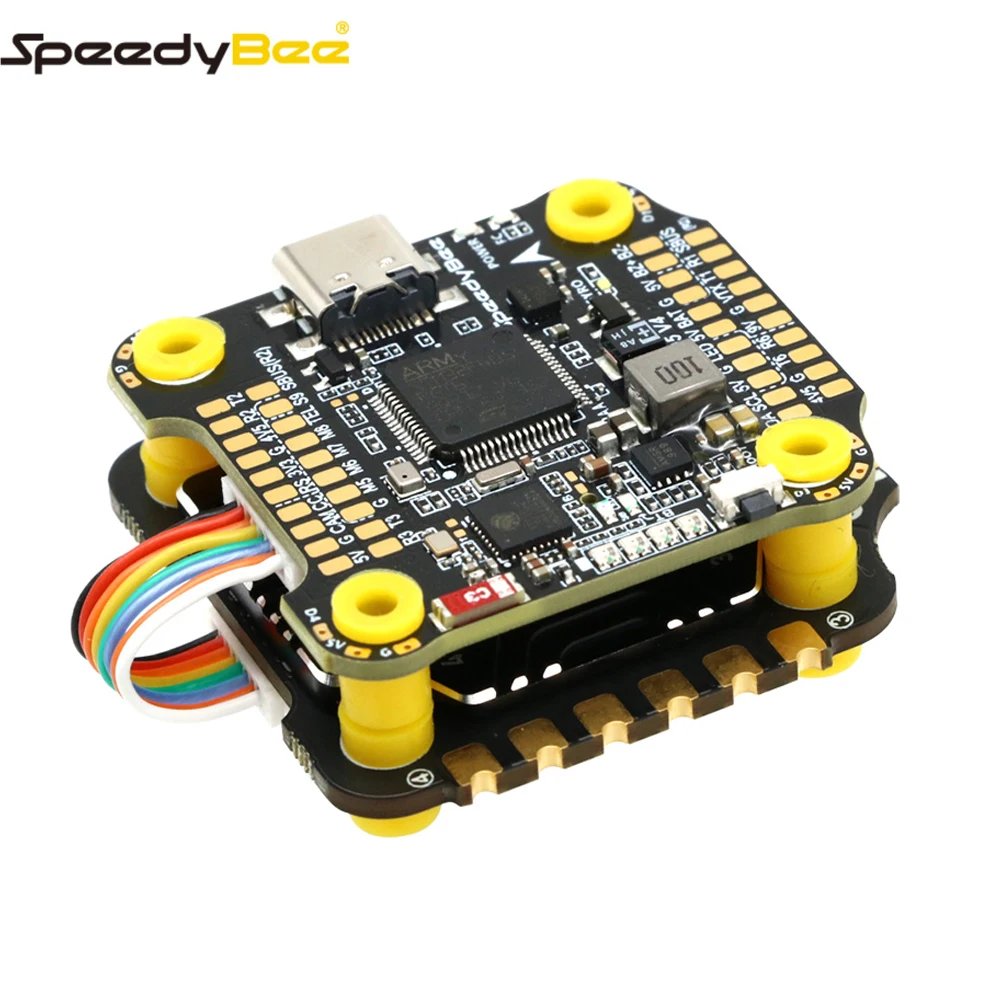

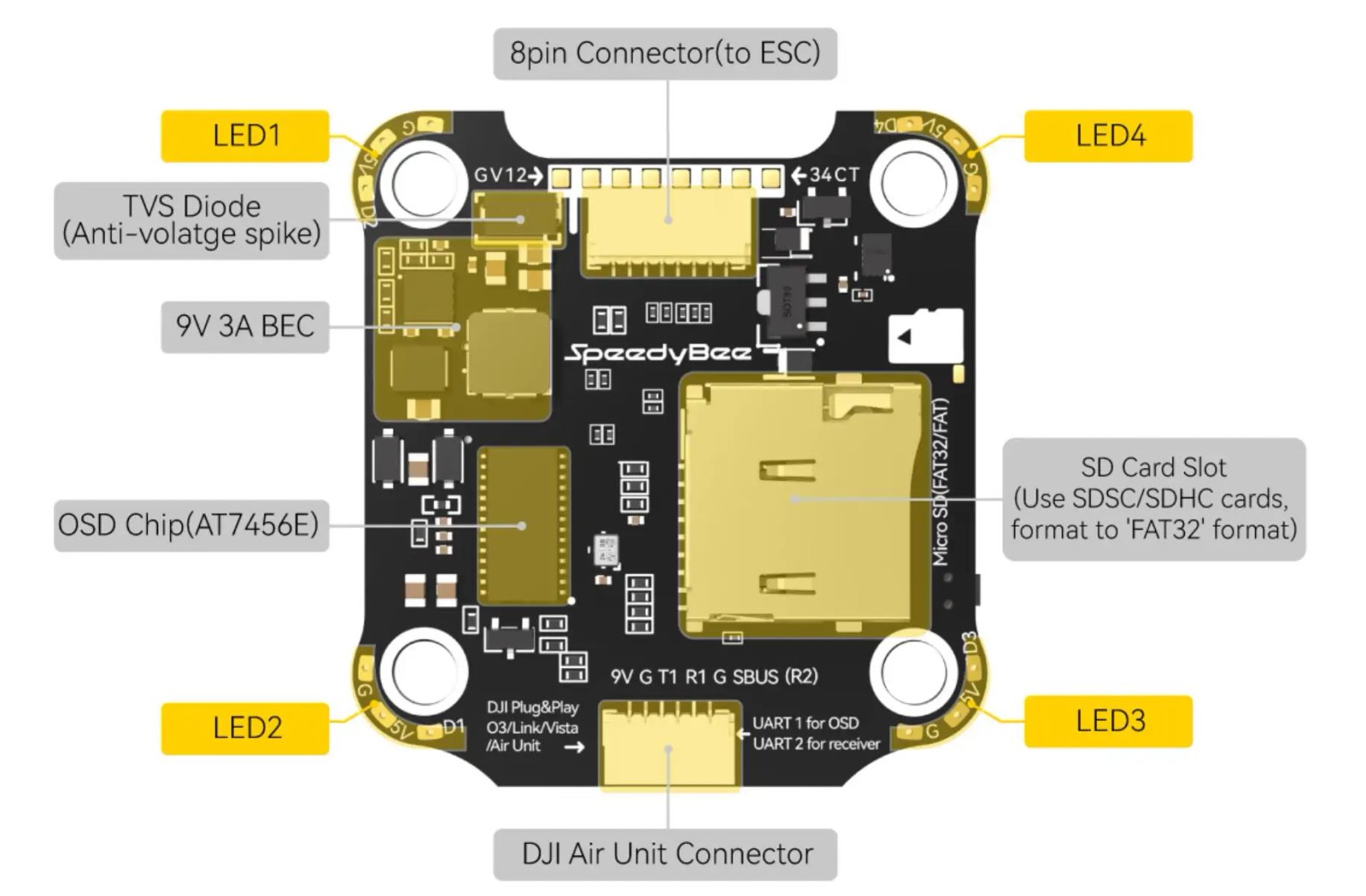

Product Name SpeedyBee F405 V4 30×30 Flight Controller
MCU STM32F405
IMU(Gyro) ICM42688P
USB Port Type Type-C
Barometer Built-in
OSD Chip AT7456E chip

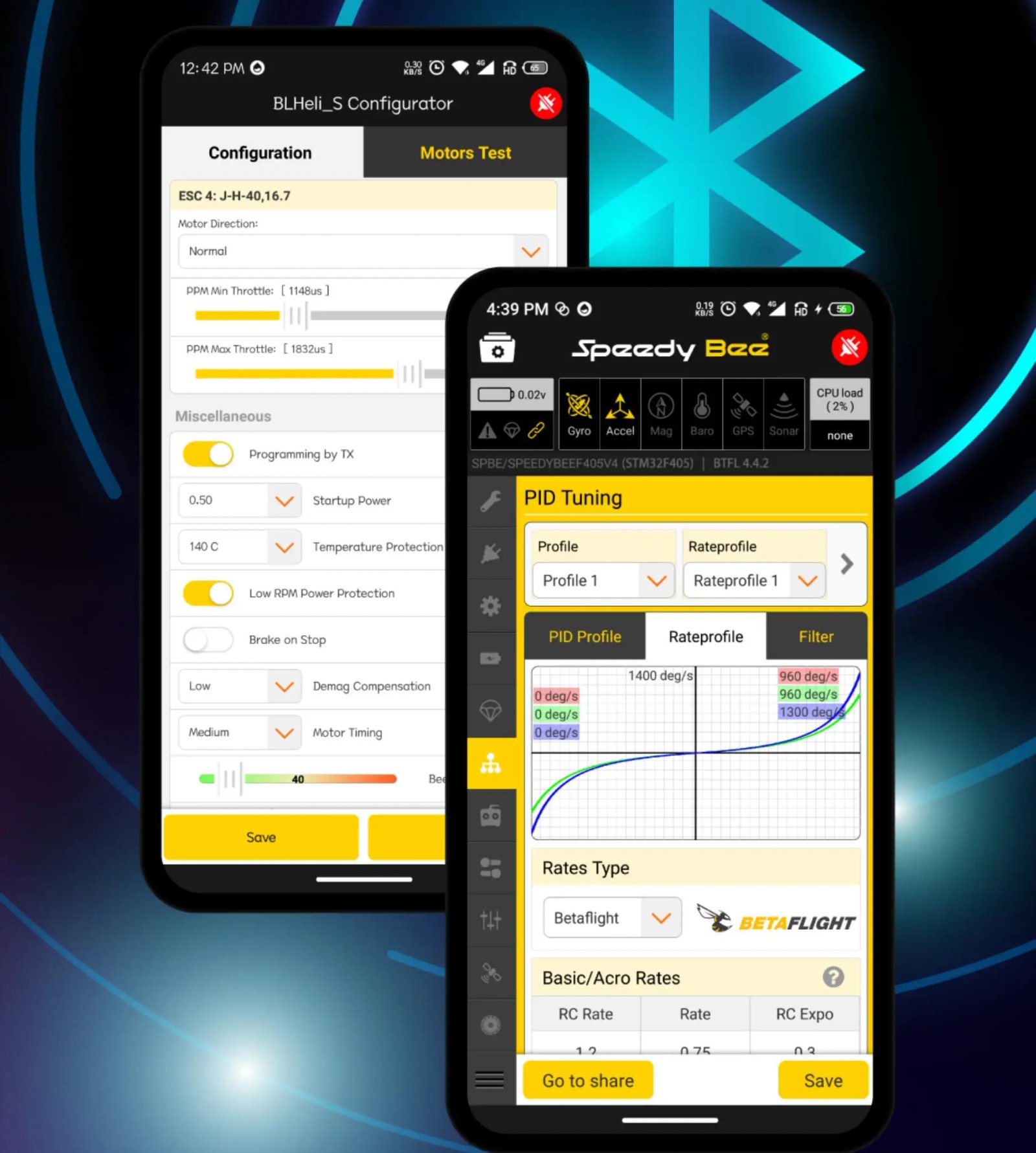

BLE Bluetooth Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
WIFI Not supported

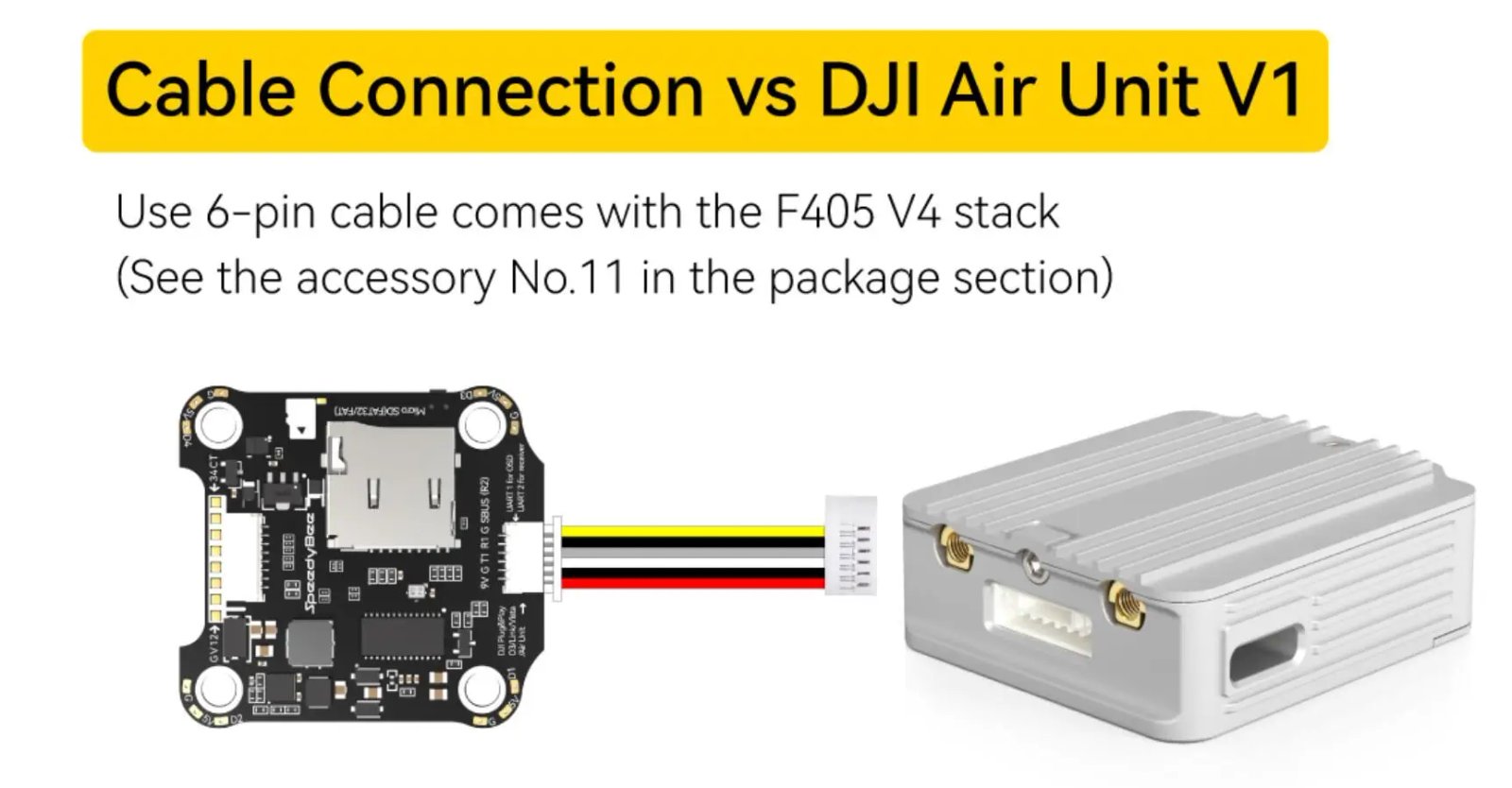

DJI Air Unit Connection Way Two ways supported: 6-pin connector or direct soldering.
6-pin DJI Air Unit Plug Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Current Sensor Input Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.
Power Input 3S – 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.
9V Output 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.
3.3V Output Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V Output Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal M1 – M4 on bottom side and M5-M8 on front side.
UART 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6
ESC Telemetry UART R5(UART5)
I2C Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer BZ+ and BZ- pad used for 5V Buzzer
BOOT Button Supported.
[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI Input Supported. Named as RS on the front side.
Smart Port / F.Port Not supported
Supported Flight Controller Firmware BetaFlight(Default), INAV
Firmware Target Name SPEEDYBEEF405V4
Mounting 30.5 x 30.5mm( 4mm hole diameter)
Dimension 41.6(L) x 39.4(W) x 7.8(H)mm
Weight 10.5g
