• Long Range :Communicate over a distance of up to 5km with this walkie talkie, making it perfect for outdoor activities and emergency situations.
• Portable :Take this lightweight and compact walkie talkie with you wherever you go, ensuring that you’re always connected.
• Am Fm Two Way Radio :Enjoy crystal-clear audio with the AM and FM radio features, making it easy to stay entertained while on the go.
• VHF Station K5 Receiver :The VHF station K5 receiver ensures that you can communicate with other walkie talkies in your area, even in remote locations.
[ 200 Channel ] – [ Cross-Band Intercom ]
[ 1750HZ Call Tone ] – [ Program On Site ]
[ Emergency Alert ] – [ Reverse Frequency Function ]
[ 10-Group Scrambler ] – [ Multi-Scan ]
[ CTCSS/DCS ] – [ 10 Emergency Weather Channels ]
[ PC Programmable ] – [ Busy Channel Lock ]
[ VOX ] -[ Frequency And Channel Mode Shift ]
[ Time-Out-Timer ] – [ Wireless Radio Replication ]
[ Large LCD Display ] – [ Voice Prompt ]
[ Reminding Switch ] – [ Remote Kill/Revive ]
[ Power-on Password Protection(By PC Programmable)]
[ AM/FM Aviation Band Receiving ] – [ FM Radio ]
[ Charger-Base Charging ] – [ Wide/Narrow Bandwidth ]
[ Offset Frequency Direction Set ] – [ Reset ]
[ Squelch Level Adjustable ] – [ Dual-watch opertion ]
[ Offset Frequency Setting ] – [ Channel Scan And Add ]
[ Automatic Signaling Search ] – [ Multi Step Frequency ]
[ One Key Call Channel ] – [ Keypad Lock ]
[ Backlight Auto Off Time Selective ]- [ Jacklight]
[ DTMF Calling ] – [ DTMF ANI ]
[ DTMF Select Call (single call, group call, all call) ]
[ Repeater Forwarding Confirmation Function ]
[ Multi Display Of Channel No./Channel Frequency/Channel Name ]
[ H (High)，M (Medium)，L (Low) Output Power Selective ]
[ Multi-Band Transmitting & 50∽600MHz Receiving ]
[ Receive/Transmit Code Setting Separately ]
[ High Capacity BatteryLong Standby Time ]
[ Fast Copy One Channel（ACT AS FREQUENCY METER (FOR TWO-WAY RADIO & SOME OTHER DEVICES) ]
Fast Copy Frequency .
Fast Copy One Channel .
Act As Frequency Meter For Two-Way Radio & Some Other Devices .
F+4, Turn On Frequency Copy .
Large LCD Display.
The large screen is clear, intuitive,and good-looking,with a clean button layout and easy to understand operation.

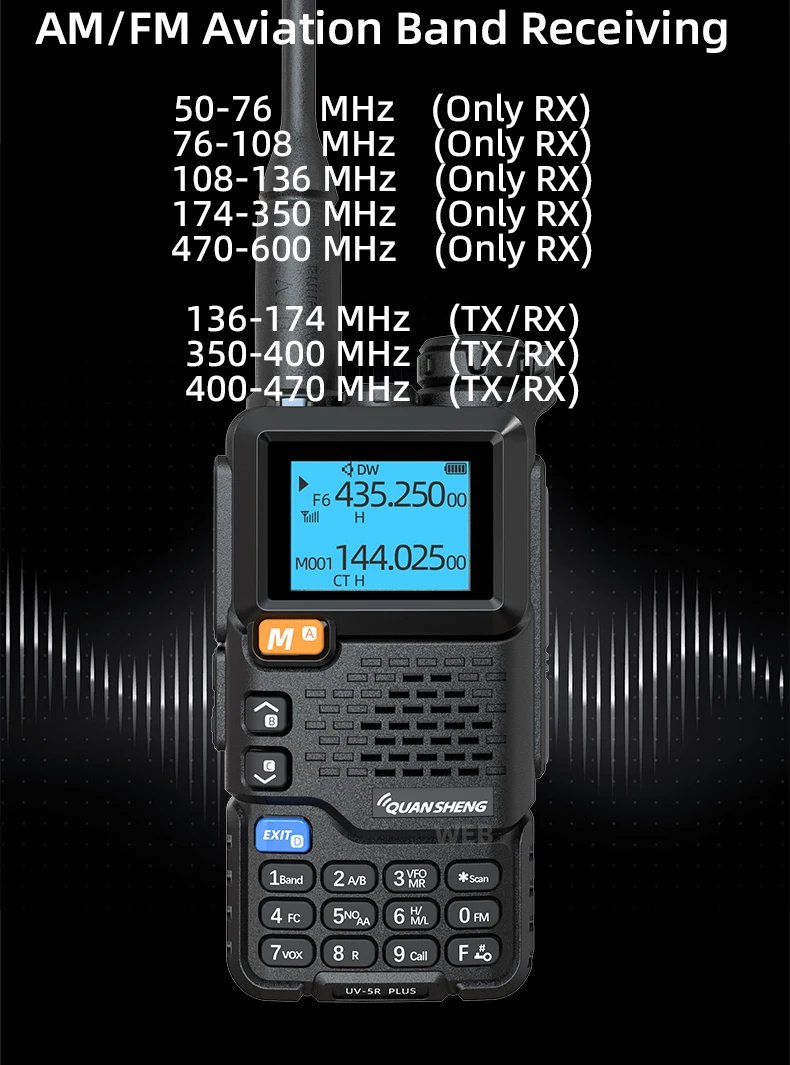

AM/FM Aviation Band Receiving .
10-Group Scrambler .Encrypted Communication .
Multiple security encryption , Protect your call privacy and communication security .
Power-on Password Protection （By PC Programmable）.
Frog sound ending tone .
Frog Sound Tail Tone .
After the walkie talkie transmission is completed, the receiving console emits a “Frog sound ” tail tone signal to indicate the end of the call .
DTMF.
Dual tone multi frequency signal , Simplefast and reliable transmission technology .
Many ways to scan .
Detect without knowing the frequency and ct/dcs used by the other party .
Cross-Band Receiving/Transmitting .
General Specifications:
Channel：200；
Stored FM Radio Channel Quantity：20；
NOAA Channel：10；
Frequency Stability：±1ppm；
Modulation Mode: FM: 11K / F3E(25KHz);
Dimension：115mmX60mmX37.5mm；
Weight：234g；
Kessys: 20 inches
Antenna Impedance:50 Oh?
RECEIVING:
Sensitivity:FM(12dB SINAD);
F1(50 ∽ 76):-121dBm
F2(108 ∽ 135.9975):-121dBm
F3(136 ∽ 173.9975):-123dBm
F4(174 ∽ 349.9975):-123dBm
F5(350 ∽ 399.9975):-123dBm
F6(400 ∽ 469.9975):-123dBm
F7(470 ∽ 599.9975):-121dBm
WFM(20dB SINAD):
AM(10dB S/N):F2(108
Audio Frequency：≥0.5W
Audio Distortion: < 10%
TRANSMITTING:
Output power: ≤ 5W;
Emissions current: ≤1.5A;
Maximum frequency Deviation: ≤ 5KHz (25 KHz), ≤ 2,5 KHz (12,5 KHz);
Distorzzjoni tal-modulazzjoni: <5%;
For the purposes of this Regulation, the following definitions shall apply:
Adjacent Channel Power：70dB(25KHz),60dB(12.5KHz)；
Residual Modulation：40dB；
