Product Details

Hybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine Wave
Hybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine WaveHybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine WaveHybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine Wave

Hybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine Wave

Hybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine Wave

Hybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine WaveHybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine WaveHybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine WaveHybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine Wave

Table 1 Line Mode Specifications
INVERTER MODEL 12V 2KVA 1.6KW 24V 3.2KVA 3KW
Input Voltage Waveform Sinusoidal (Utility or Generator)
Nominal Input Voltage 230Vac
Max AC Input Voltage 300Vac
Nominal Input Frequency 50Hz/ 60Hz (Auto detection)
Output Short Circuit Protection Circuit Breaker
Efficiency (Line Mode) >95% ( Rated R load, battery full charged )
Transfer Time 10ms Typical (UPS); 20ms Typical (Appliances)
Table 2 Inverter Mode Specifications
INVERTER MODEL 12V 2KVA 1.6KW 24V 3.2KVA 3KW
Rated Output Power 2000VA/1600W 3200VA/3000W
Output Voltage Waveform Pure Sine Wave
Output Voltage Regulation 230Vac±5%
Output Frequency 50Hz
Peak Efficiency 0.94
Overload Protection 5s@≥150% Ioad; 10s@≤100%〜150% Ioad
Surge Capacity 2* rated power for 5 seconds
Nominal DC Input Voltage 12Vdc 24Vdc
Cold Start Voltage 11.5Vdc 23.0Vdc
High DC Recovery Voltage 14.0Vdc 32Vdc
High DC Cut-Off Voltage 16.0Vdc 33Vdc
No Load Power Consumption <25W <35W
Table 3 Charge Mode Specifications
Utiity Charging Mode
    INVERTER MODEL 12V 2KVA 1.6KW 24V 3.2KVA 3KW
Charging  AIgorithm        3-Step
Ac Charging  Current (Max)        60Amp
(@V /P=230vac)
Floating Charging Voltage 13.5vdc 27vdc
MPPT Solar Charging  Mode
        ERTER MODEL 12V 2KVA 1.6KW 24V 3.2KVA 3KW
Max P.V Array Power 2000W          3000W
Nominal  PV Voltage        240vdc

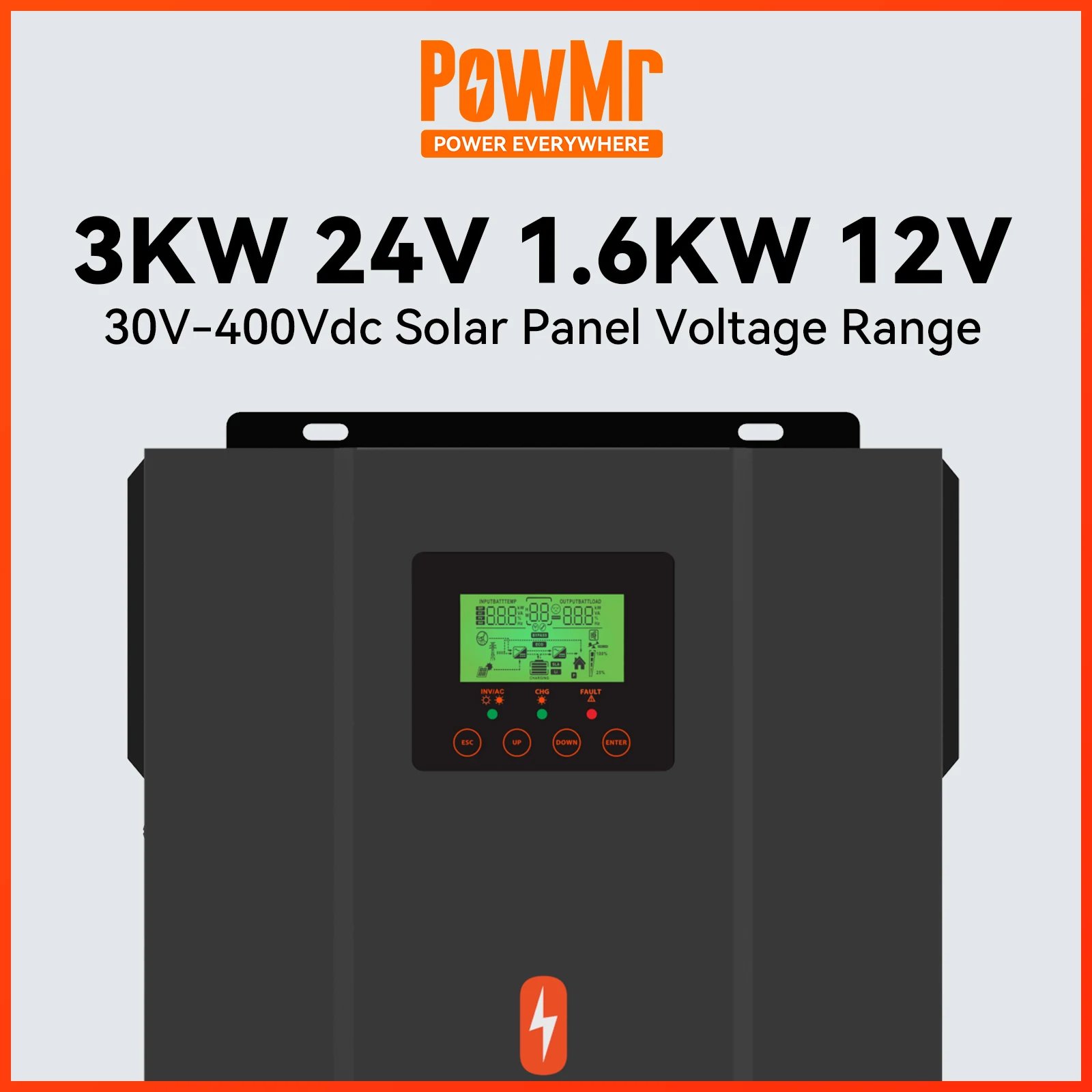

PV Array MPPT Voltage Range        30~400vdc
Max.PV Array Open Circuit Voltage        400vdc
Max Charging Current
(AC Charger+Solar charger)
       80Amp

Hybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine WaveHybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine WaveHybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine WaveHybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine WaveHybrid Solar Inverter 12V 24V 3KW 2KW 1.5KW MPPT 80A 220v 230V Converter for Battery Lithium Lead-Acid Pure Sine Wave

Specifications
Origin:
Mainland China
Certification:
CE
Certification:
FCC
Certification:
RoHS
Output Frequency:
50Hz/60Hz(Auto sensing)
Output Type:
SINGLE
is_customized:
Yes
Output Current:
80A
Output Power:
1 - 200KW
Weight:
6KG
Is Smart Device:
YES
Model Number:
POW-HVM-H Series
System Configuration:
Hybrid Solar Inverter 24V 3KW MPPT
Type 1:
Inverter Pure Sine Wave
Type 2:
Solar Inverter Hybrid
DC Input Voltage:
12V 24V
Max. PV Array Power:
2000W 3000W
Charging Current:
MPPT 80A
AC Charging Current:
MPPT 60A
Optional:

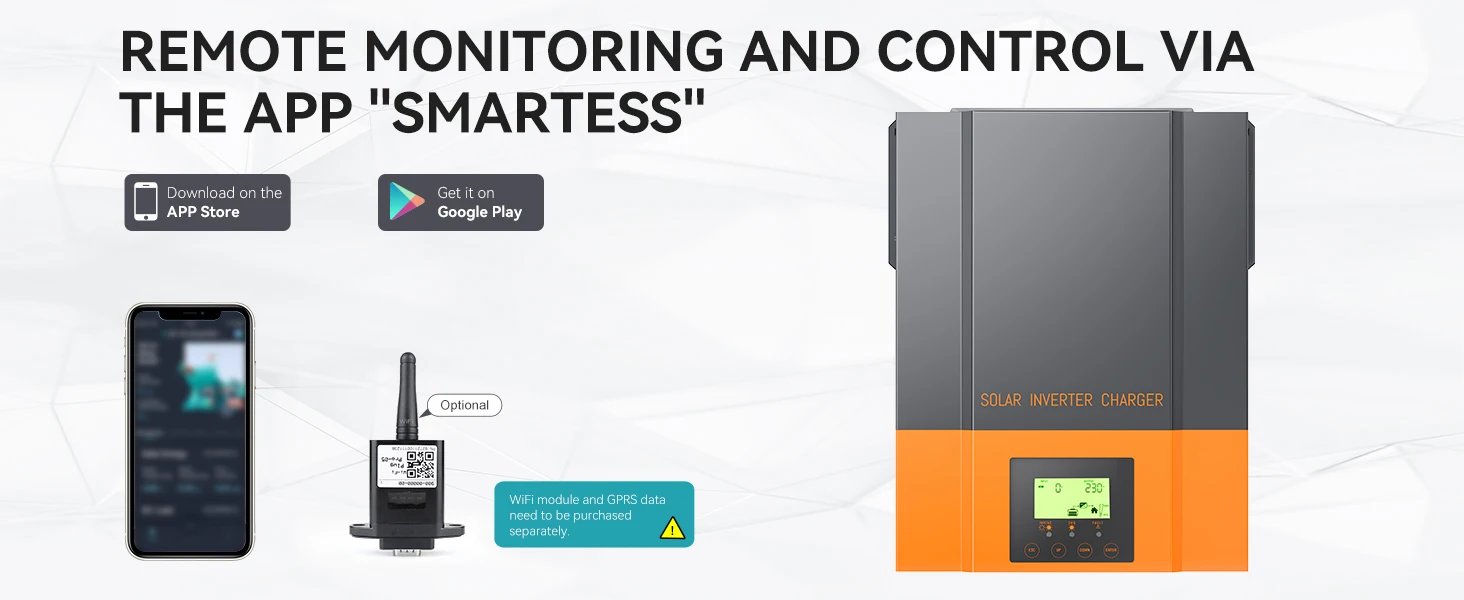

WiFi Connection
Feature 1:
Off Grid
Feature 2:
220V 230V 240V
Feature 3:
inwerter hybrydowy
Feature 4:
onduleur solaire hybride
Feature 5:
inversor senoidal pura
Feature 6:
inverter ibrido fotovoltaico
Feature 7:
hybrid wechselrichter
Feature 8:
inverter ibrido
Feature 9:
inversor hibrido
Feature 10:
inverter solare fotovoltaico
