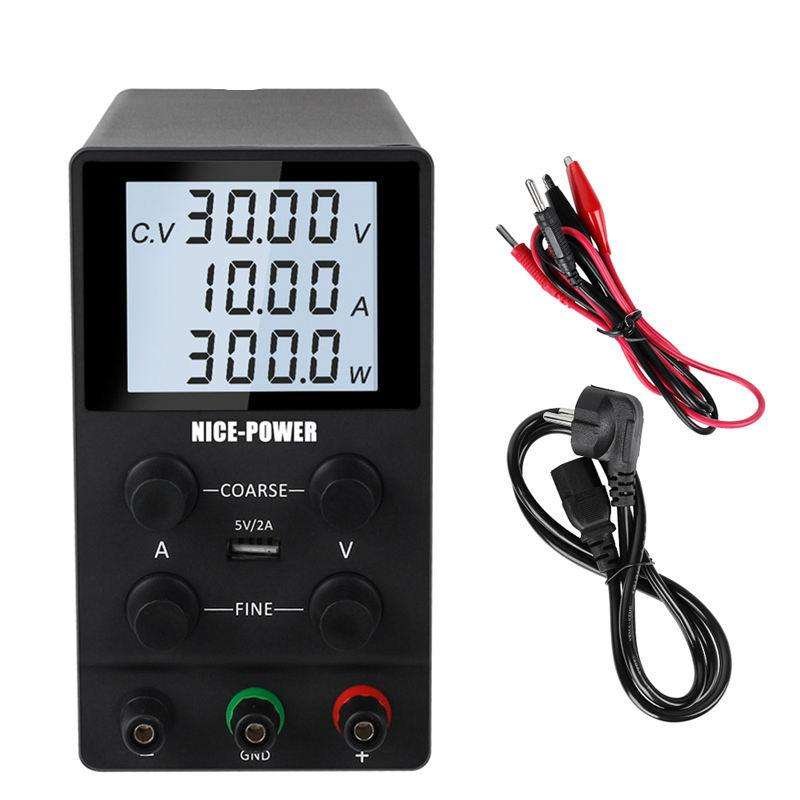

1.SPS-D Series LCD Screen Protect your eyes (24hours Working)
2.Have complete operating protection function(Short circuit protection)

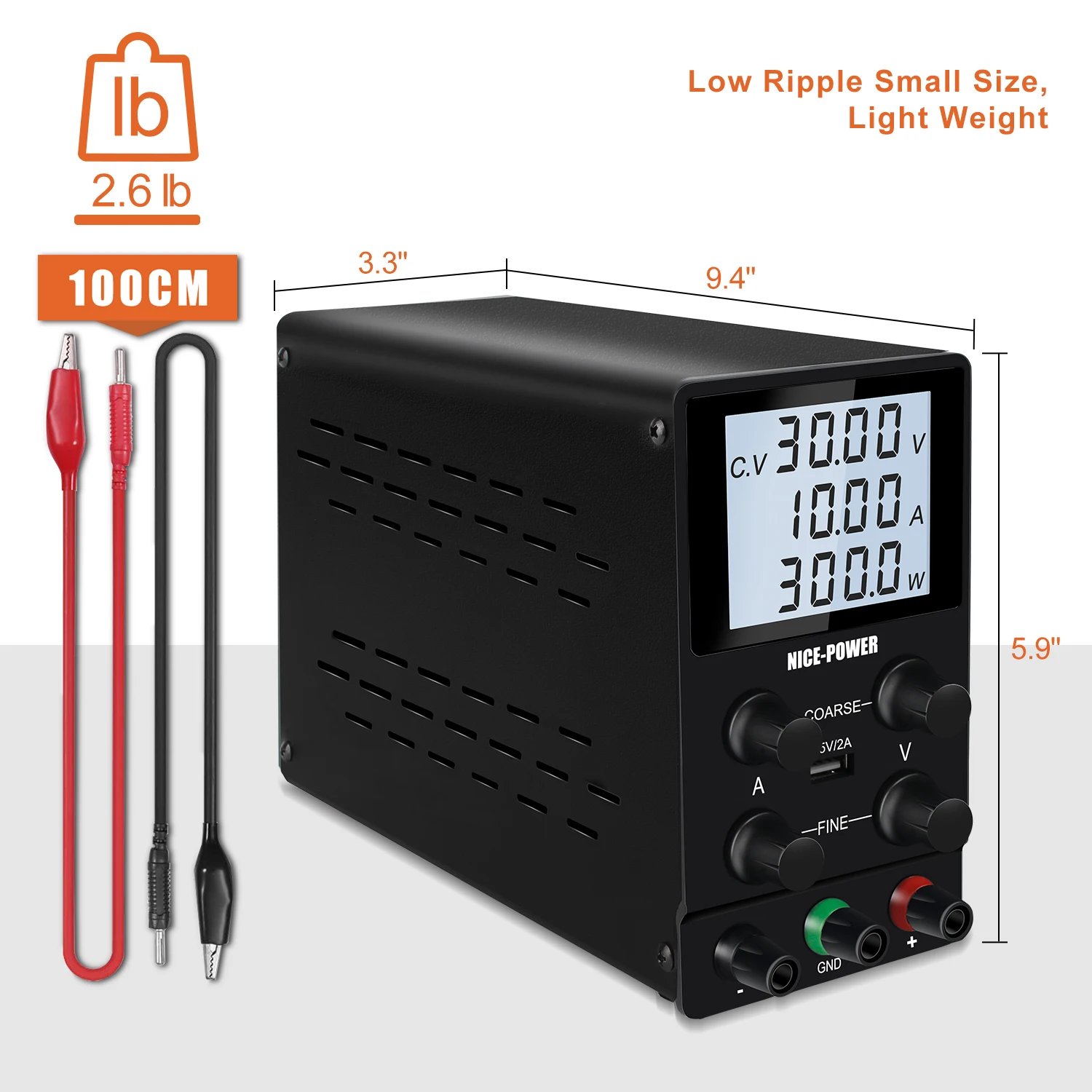

3.Highly efficient, low ripple, small volume, light weight
4.Display voltage, current,power, high precision
5.Voltage stabilization, current limiting, simple operation
6.Single voltage input（Dual voltage input easily destroys power supply）We will Send
the correct input voltage power supply according to your country

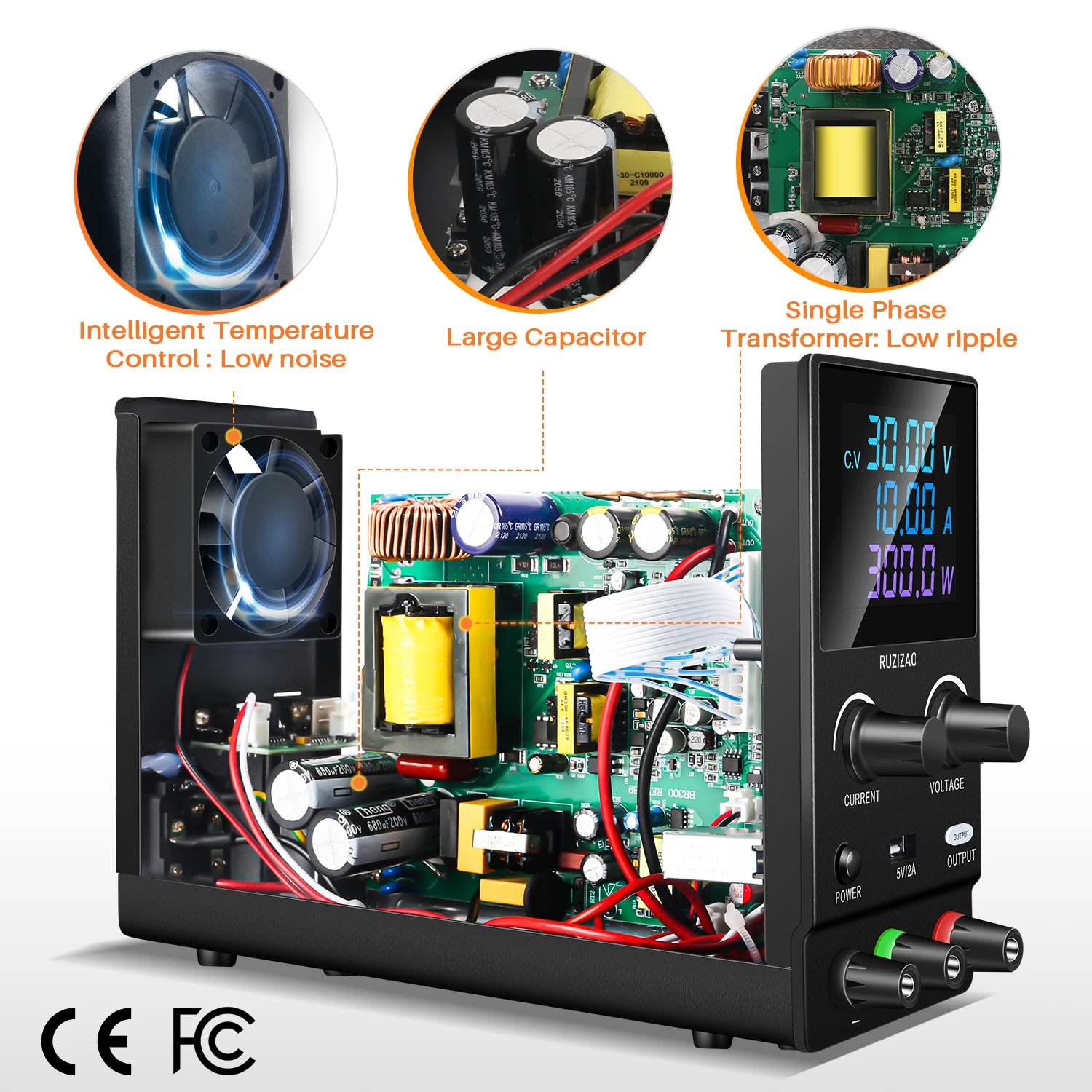

7.Temperature control fan heat dissipation, low noise
8.Double potentiometer more precise adjustment
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment
10.Output current ranges from 0 to rating current with continuous adjustment
1. For Factory Production line test.
2. For Mobile phone ,computer repair, electrical appliance maintenance,Car DVD, car audio, etc.

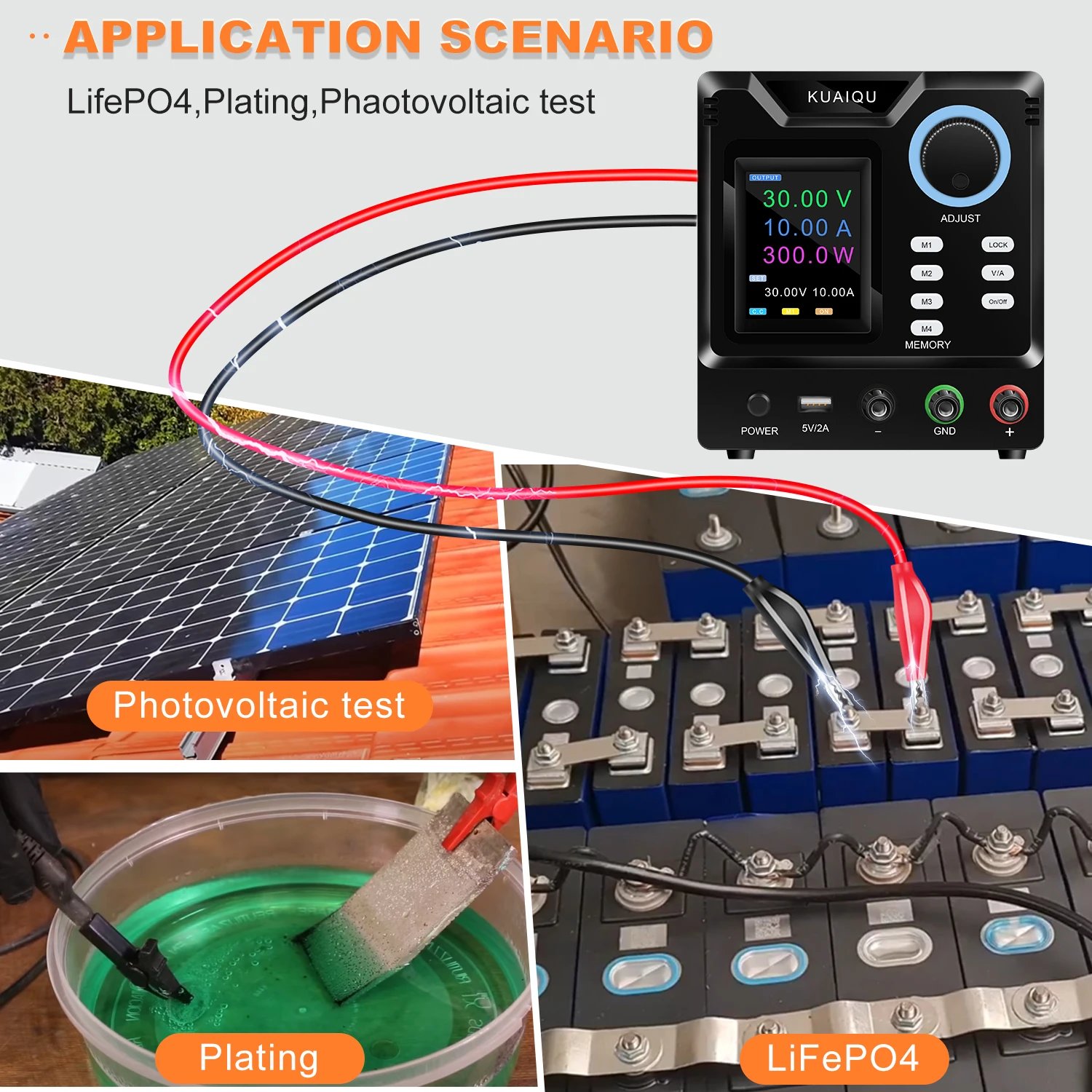

3. For Product aging, electroplating,titanium oxide,electrolysis,such as resistors, jewelry,capacitors, relays, DC motors, LEDs, etc.
4. For Charge the battery (Include car battery).
5. For Laboratory, scientific research teaching,factory, maintenance power supply,school ,scientific research , production line use,etc.
6. For Security monitoring system, fire protection system, building automation system

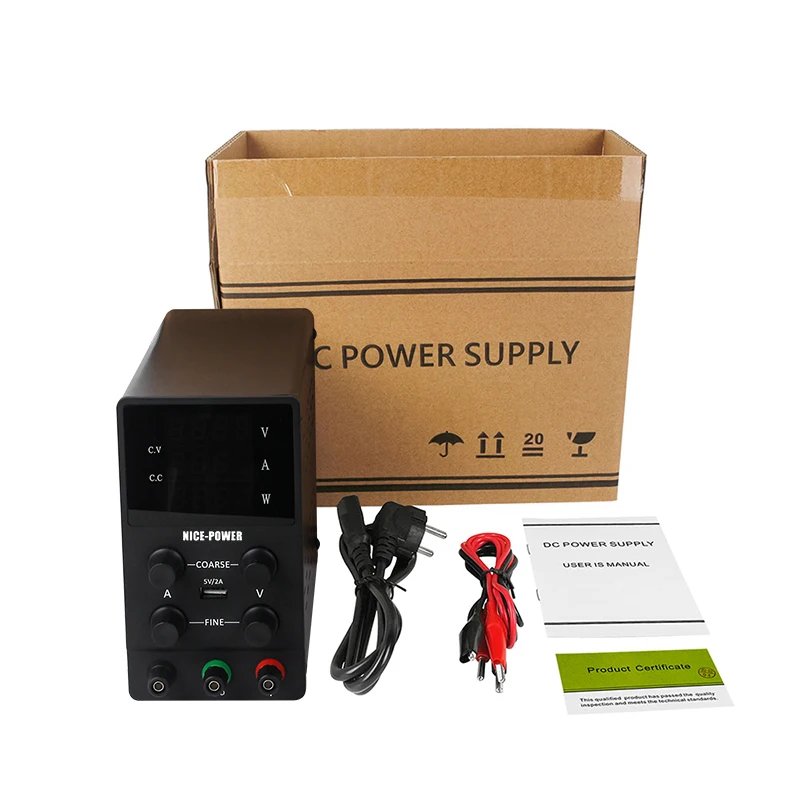

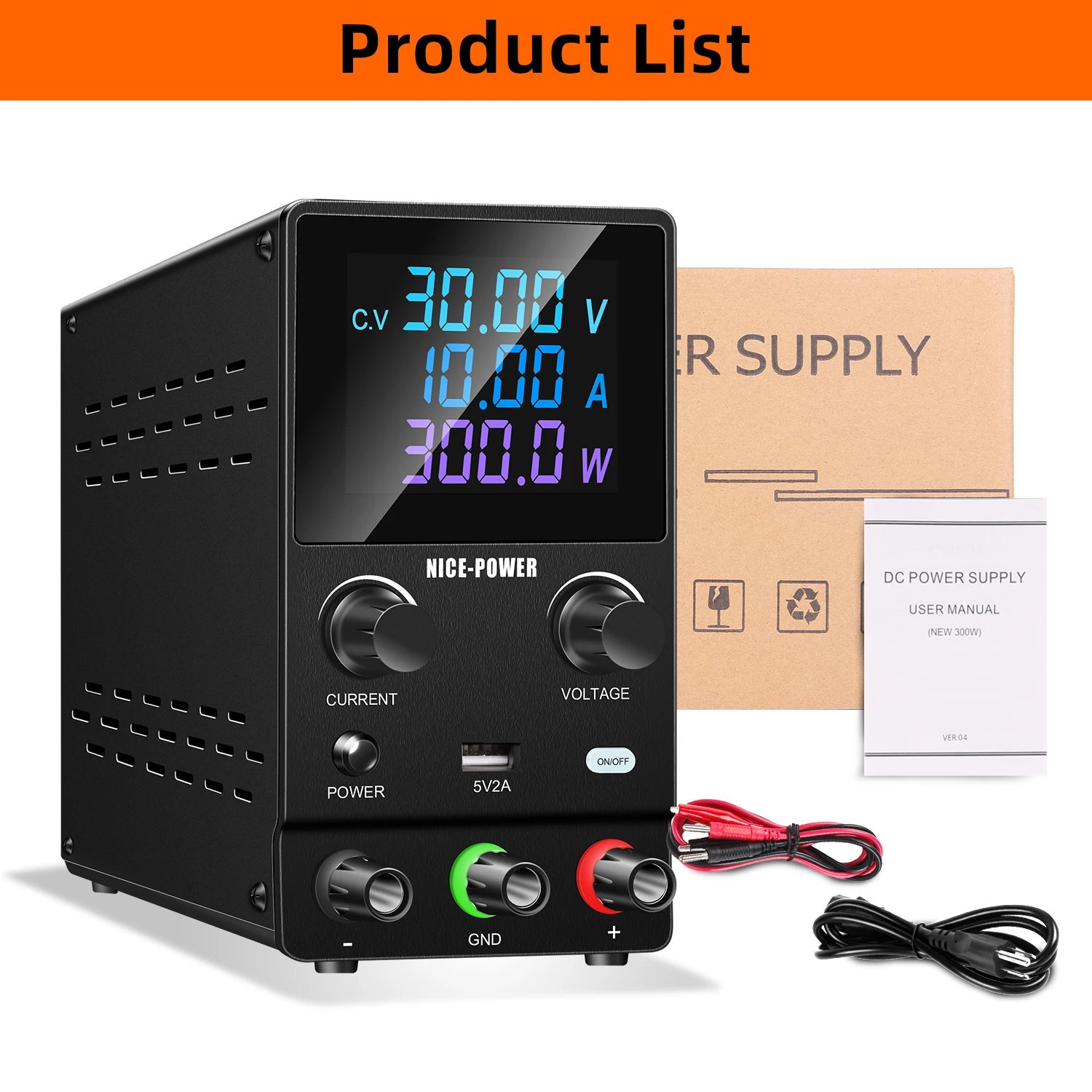

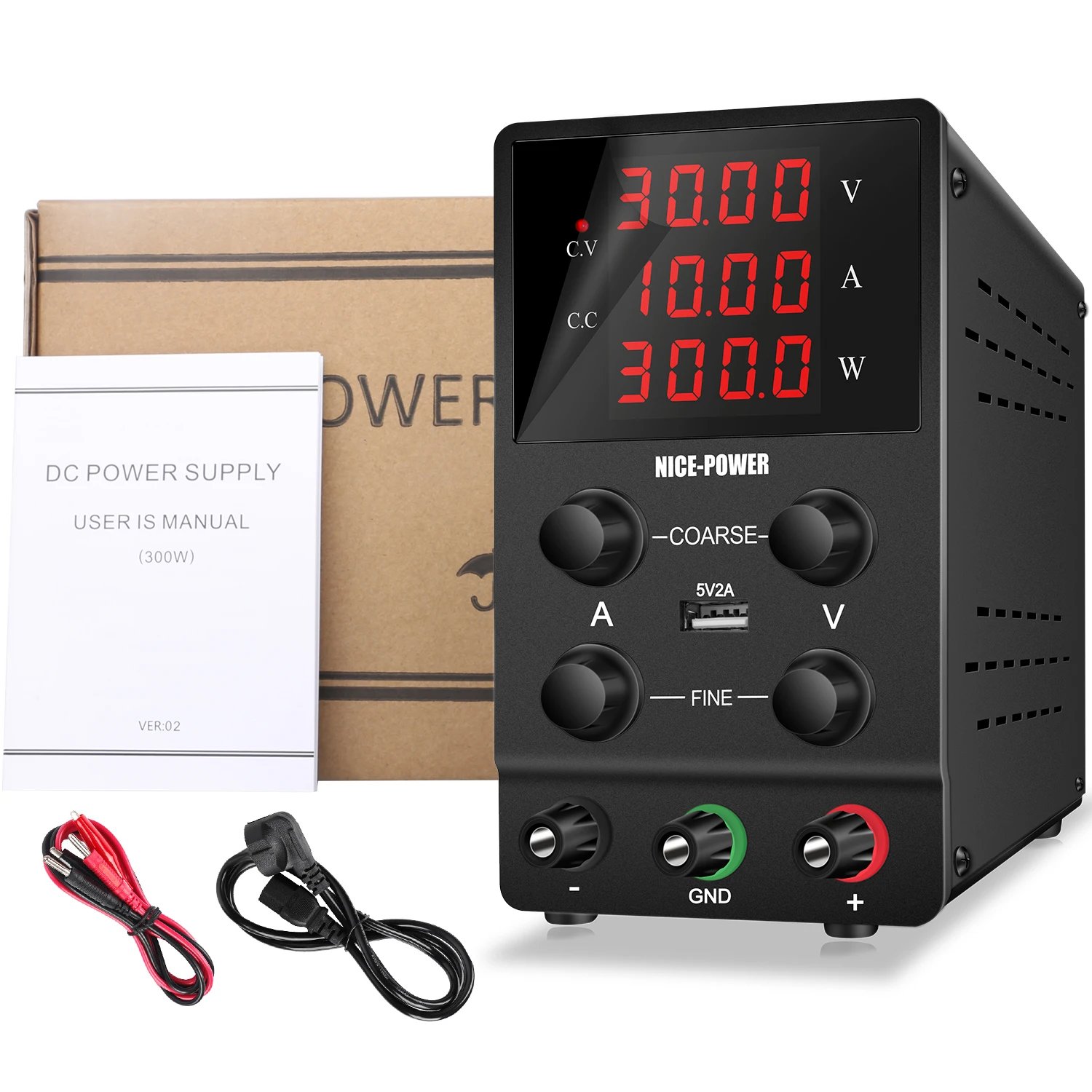

1X DC Power Supply
1X Power Adapter(EU/AU/UK/US we will send according to you country)
1X Black Output Line
1X Red Output Line
1X Instruction Book (English)
1X Pakcgae Box（Hard）
2X Protective Sponge
1X Certificate of Conformity(1 Year)
Battery Model 30V10A As Below:
Product Features

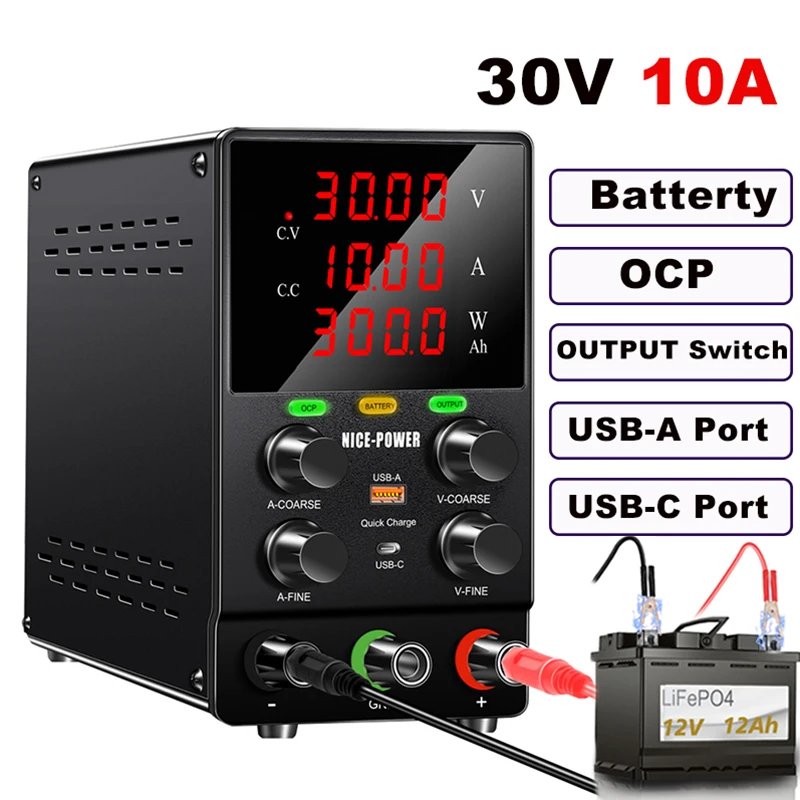

【 New feature, first released in 2024 】abor power supply has added a charging request indicator. When the “Battery” button is pressed, the indicator light on the panel lights up. If it is not connected properly or is not connected to the battery that needs to be charged, the “Battery” button will display a yellow light and flicker, and the “output” button cannot be pressed. When the “Battery” button displays a yellow light and stops flashing, it indicates normal charging. If the “Better” button shows a green light, the output can be turned off after charging is completed. Full loading prompt provides peace of mind for you.
【Multiple protection and fast charging】High-performance laboratory power supply has a maximum rated voltage of 30V, which can charge your 6V/12V/24V battery. With a maximum rated current of 10A, it can bring a maximum power of 300W. It quickly replenishes the battery’s energy and adds multiple protection functions such as over-temperature protection, over-current protection and short circuit protection, so you can charge with more safety.
【New update of OCP function】:Laboratory power supply improved OCP function and additional “OCP” button. If you use the laboratory power supply while pressing the “OCP” button, when there is a short circuit, the LED screen will automatically switch to OCP and stop power output, which further protects the laboratory power supply and provides a safer user experience!

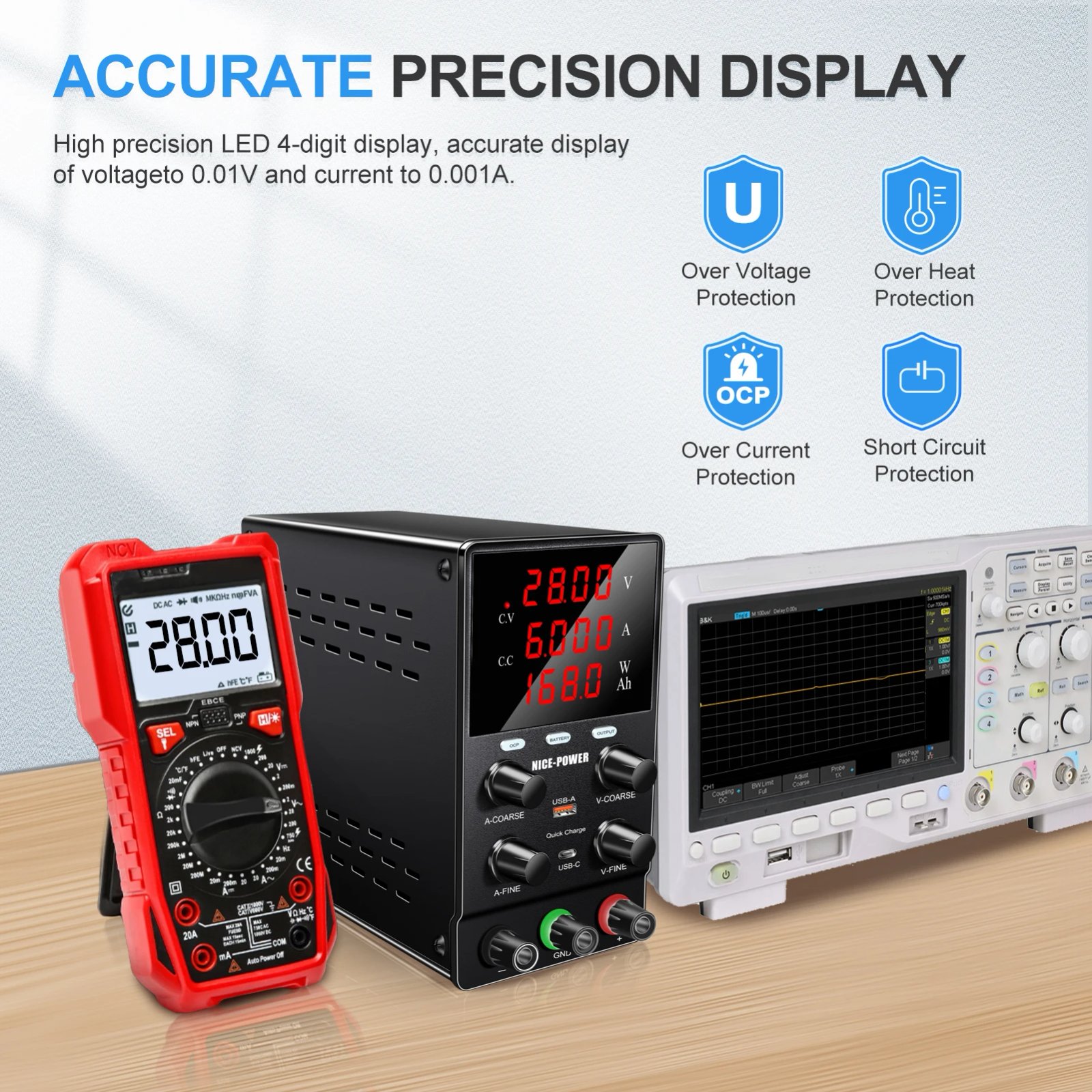

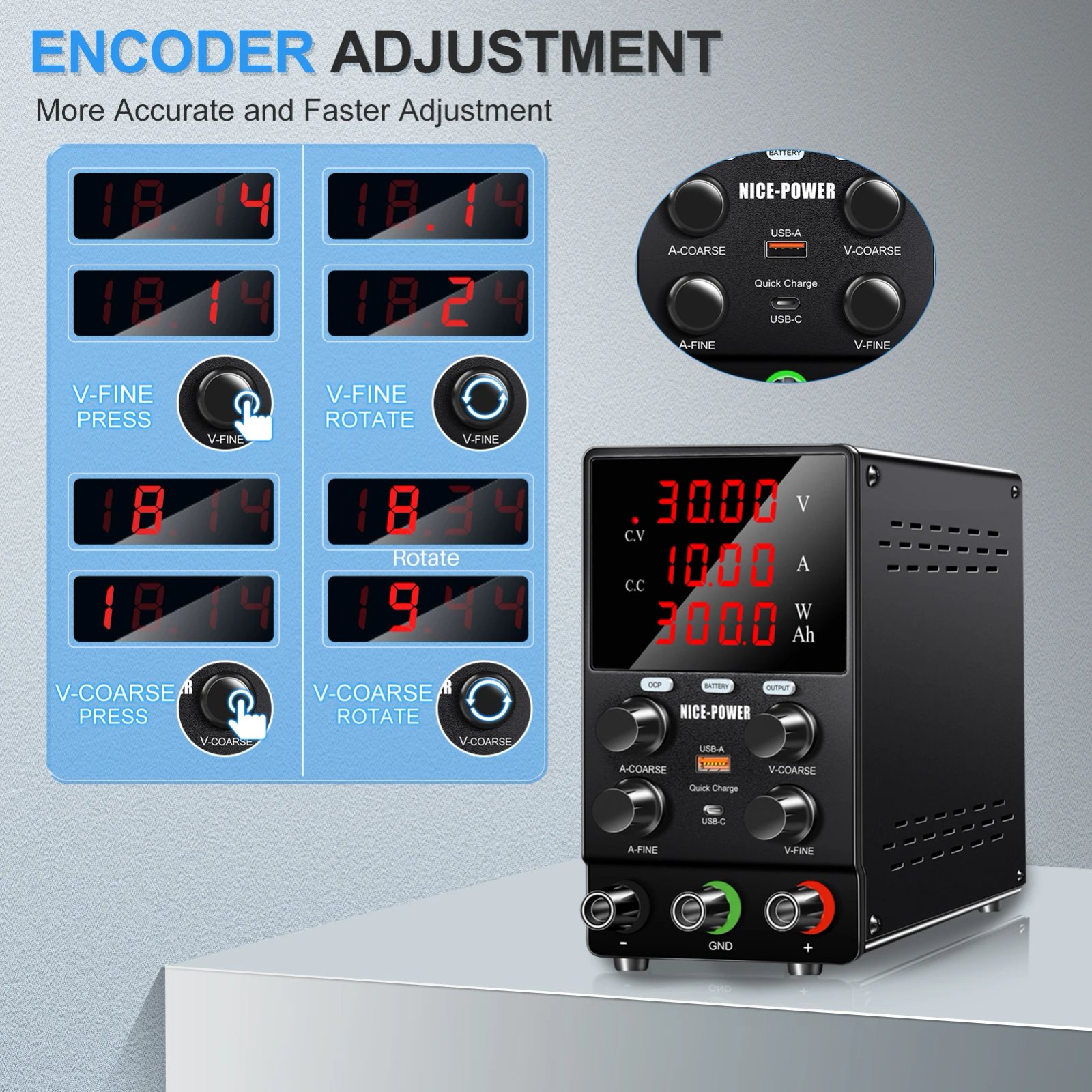

【Encoder Setting, Output Switch】: Laboratory DC power supplies adopts encoder setting, which can be precise to 0.01V and 0.001A, ensuring the most accurate adjustment of data. In order to make it easier to use after the setting is completed, we added an output switch that only outputs energy when the output switch is turned on, making your use more reassuring.
【Instructions for use】: ！Please note！: If the laboratory power supply is too hot, please stop using it and wait for it to cool down before use to avoid irreversible damage to the power supply.
【High-quality products and efficient after-sales service】: When you buy a laboratory power supply, you will receive 1*laboratory power supply, 1*set of output power cable, 1*input power cable and 1*user manual. We offer a 12-month warranty and 24-hour technical support. If you have any questions, please do not hesitate to contact us at any time.

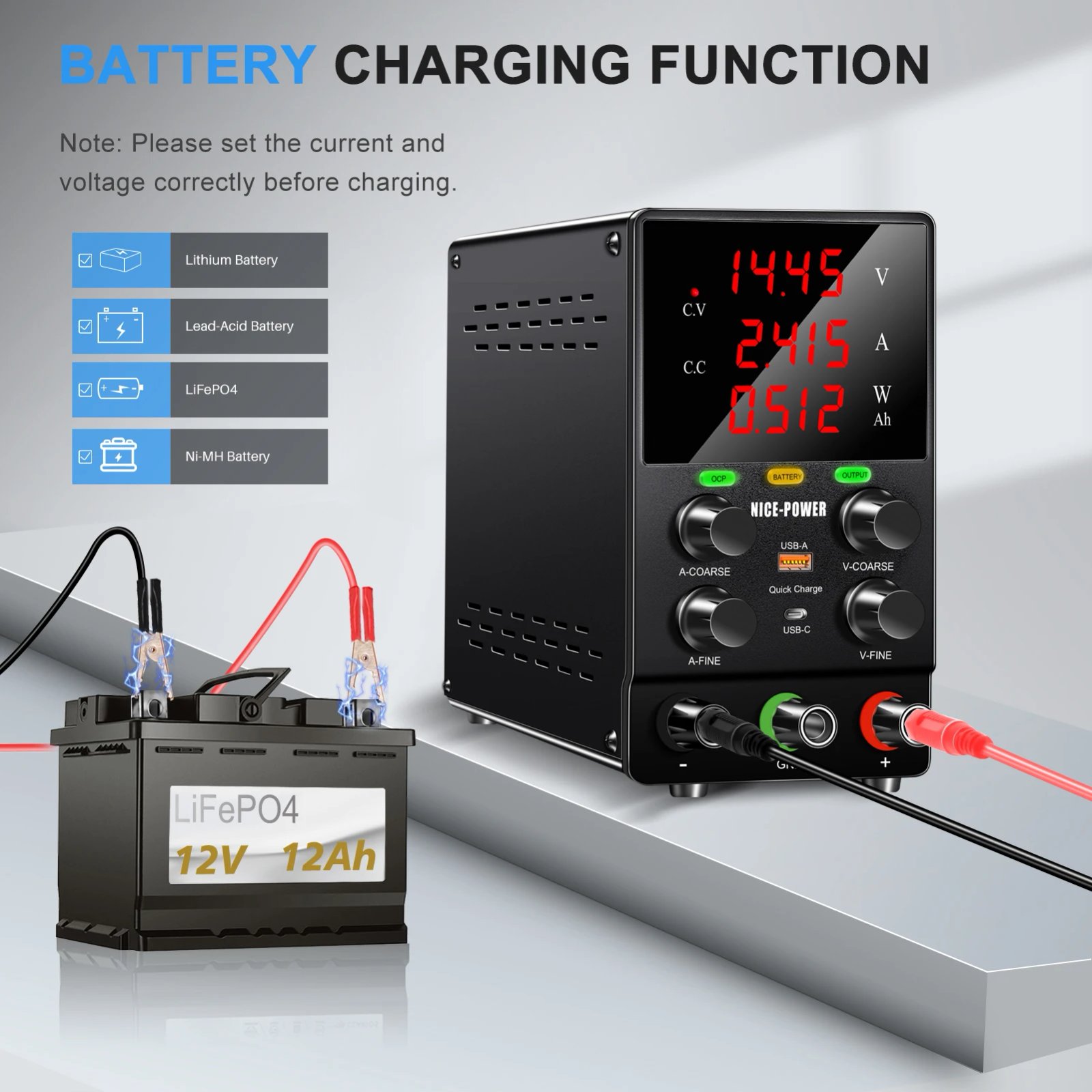

Reference voltage settings for various battery charging
Various battery charging voltage specifications (actual specifications are subject to battery manufacturer’s regulations!)
The charging voltage of lithium batteries, lead-acid batteries, and lithium iron batteries is 1.15 times the nominal voltage, and the charging voltage of nickel-metal hydride batteries is 1.17 times the nominal voltage.
Step 3 explains how to use the charging function:
1. Turn on the power, press the “Battery” button (at this time the “Check” indicator light on the panel starts to flash), and adjust the voltage and current adjustment knobs to the required voltage and current values.
Note: Generally, the charging voltage is set to 1.15 times the nominal voltage of the rechargeable battery; the charging current should be set to 0.2C (C = total battery capacity Ah). If the total battery capacity is 5000mAh, the charging current should be set to 1A
2. Use the output wires to connect the positive and negative poles of the power supply host and the rechargeable battery respectively. After connecting,
The “Battery” indicator light is solid orange, indicating charging;
The “Battery” indicator light is solid green, indicating that charging is completed;
The “Battery” indicator light keeps flashing orange, indicating whether the battery wiring is correct;
2.1) If the connection cable is not connected correctly (the positive and negative poles are reversed or disconnected) or there is a problem with the battery, charging cannot be started and the “Battery” indicator light will continue to flash. It is necessary to confirm whether the cable is connected correctly or whether the battery is damaged.
(2.2) If any abnormality occurs during the charging process, such as disconnection of the connecting cable, etc., the power supply will stop charging. The “Battery” light starts flashing again. After eliminating the abnormality, press the “OUTPUT” button to continue charging.
“OCP” button can turn off the buzzer at the same time

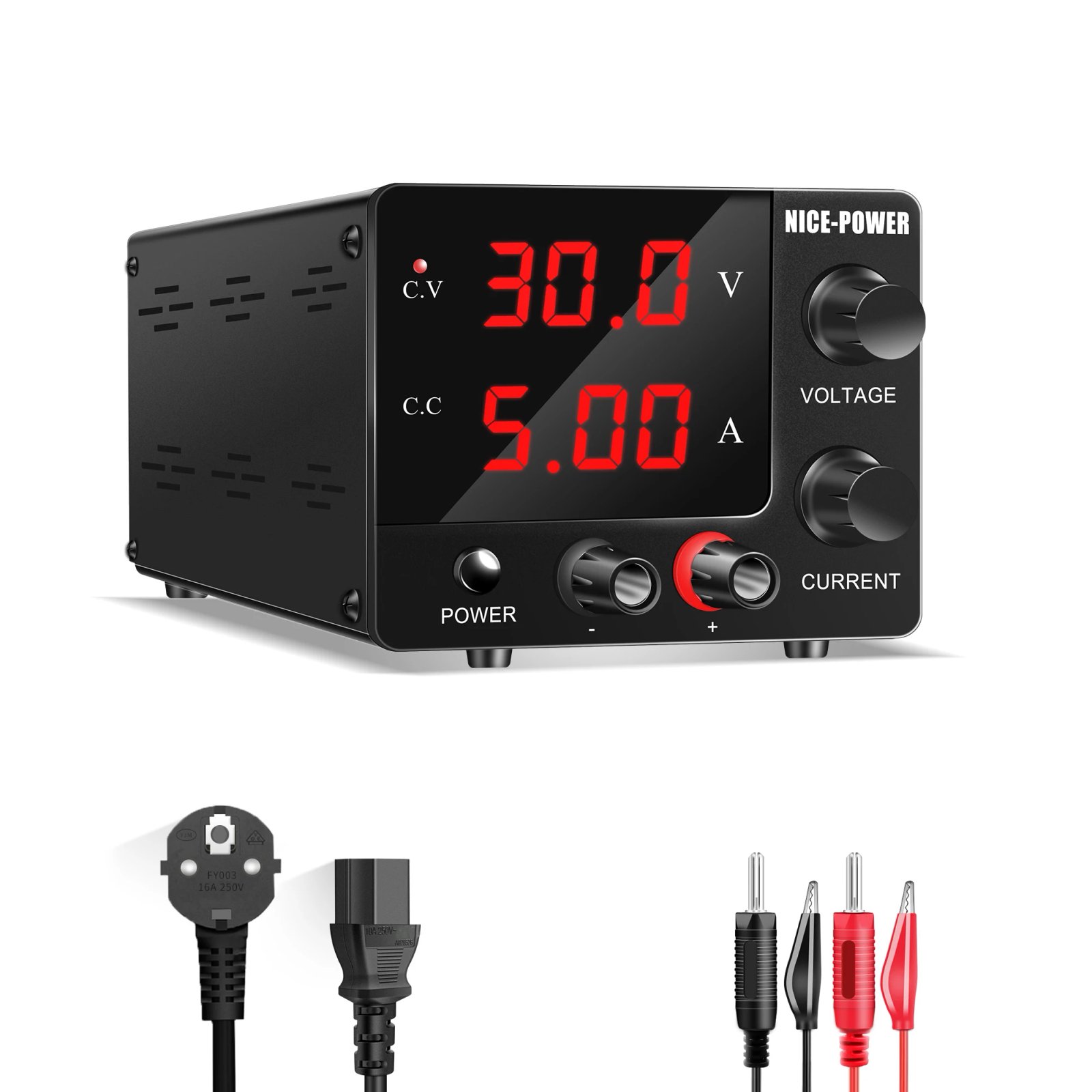

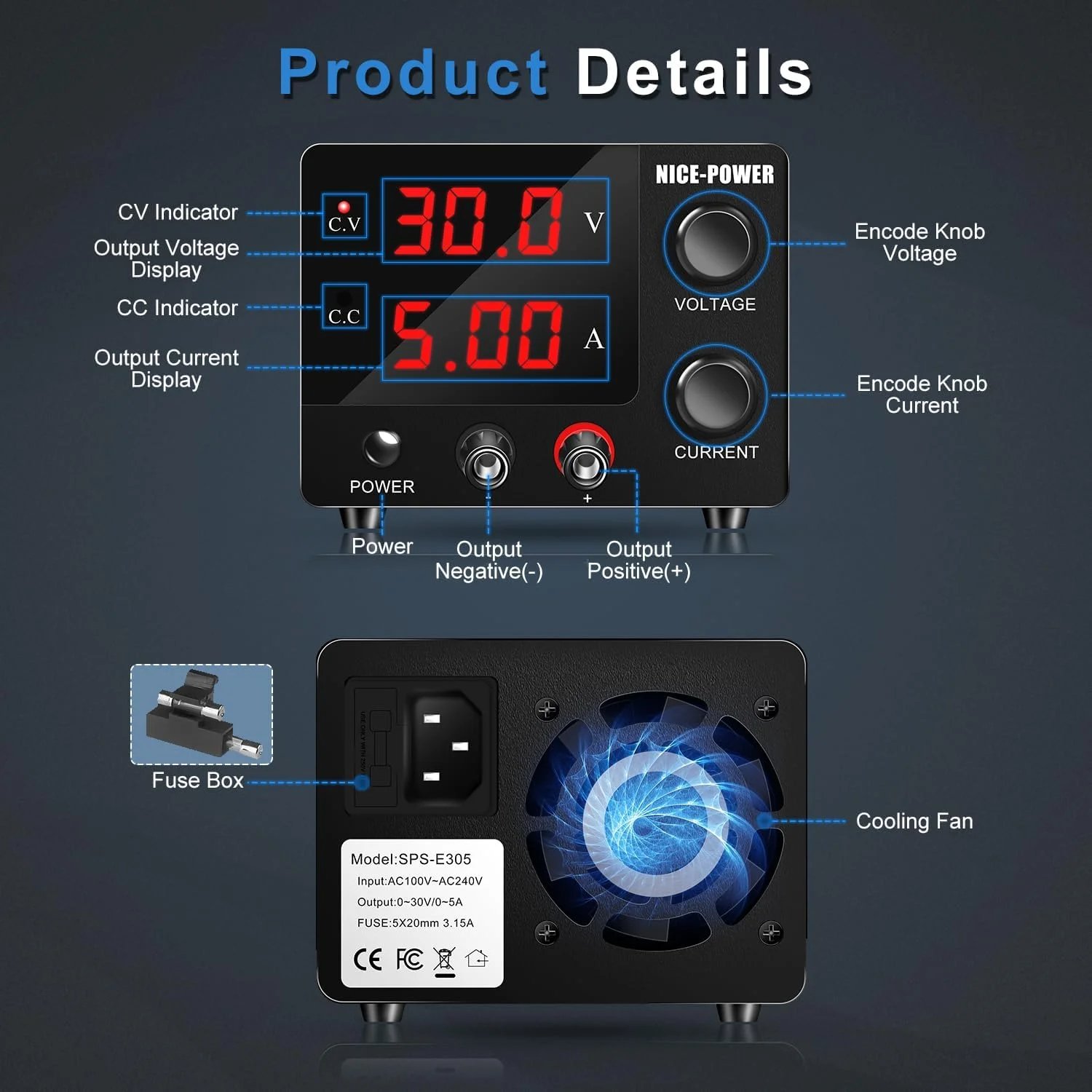

Mini 30V5A or 15V10A, MAX Power 150W, As Below:

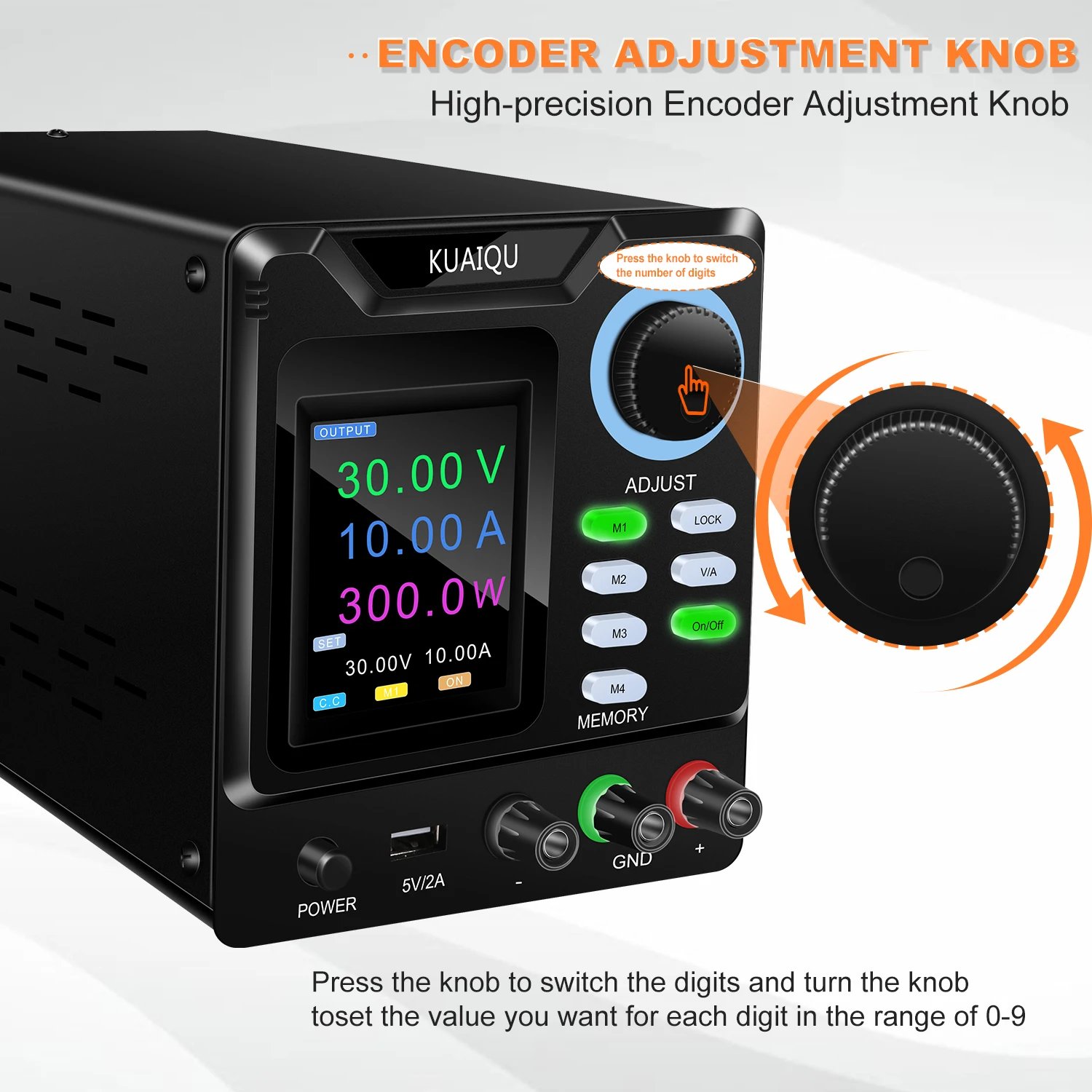

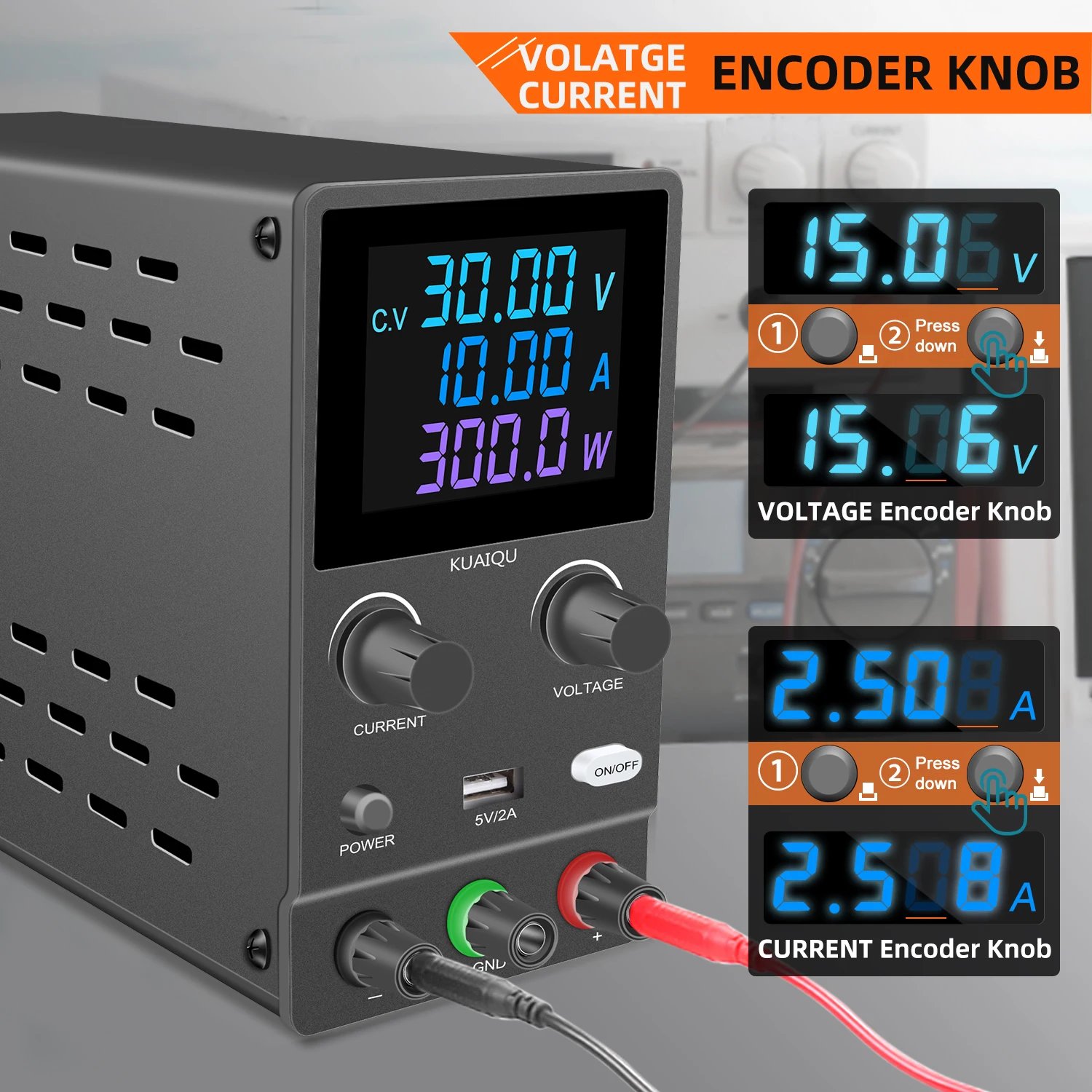

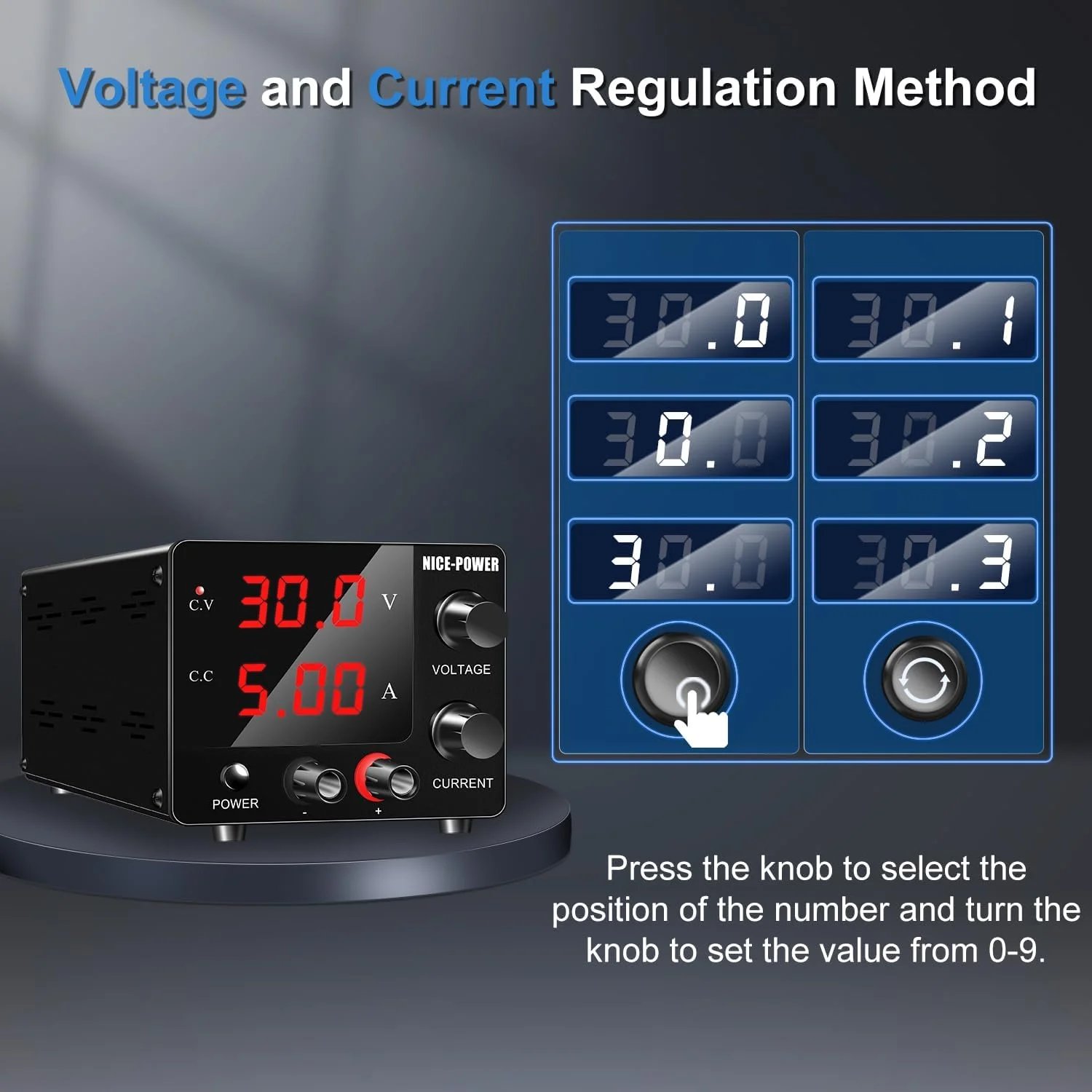

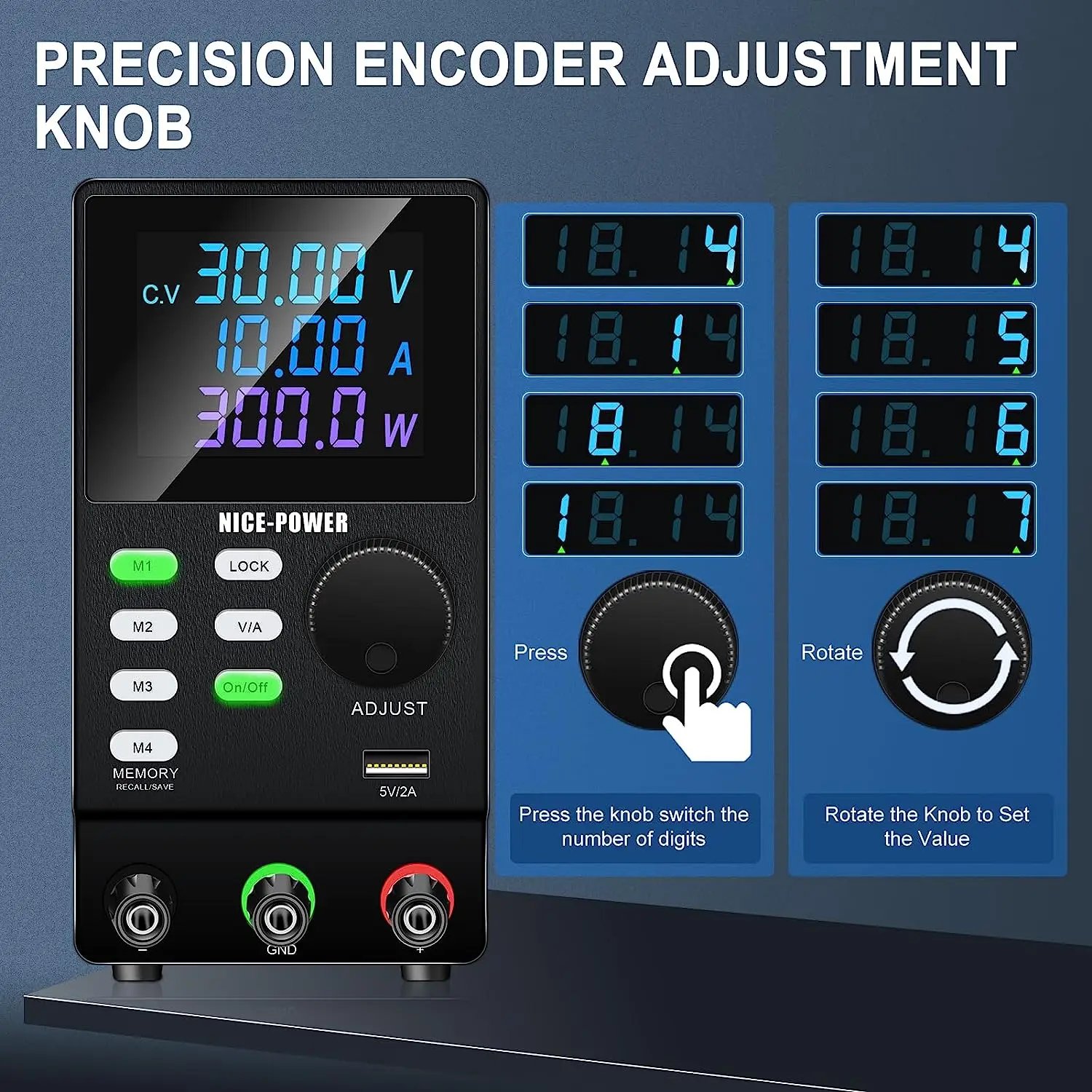

【Upgraded High-precision encoder knob】Just “set” Voltage and Current instead of “adjust”. You can press the Voltage and Current encoder knob to select the Digit you want to adjust, then rotate the knob to set the value from 0-9. Each Digit can be set easily by the accurate encoder knob. The encoder switch replaces the potentiometer switch, making your work easier, more accurate and efficient.
【Precise 3-digit LED Display】The NICE-POWER DC bench power supply has a resolution of 0.1V and 0.01A, and you can easily adjust it in the range of 0-30V and 0-5A. The 3-digit back-lit LED display provides more accurate and clearly visible readings for the voltage and current value, even in conditions of low voltage.

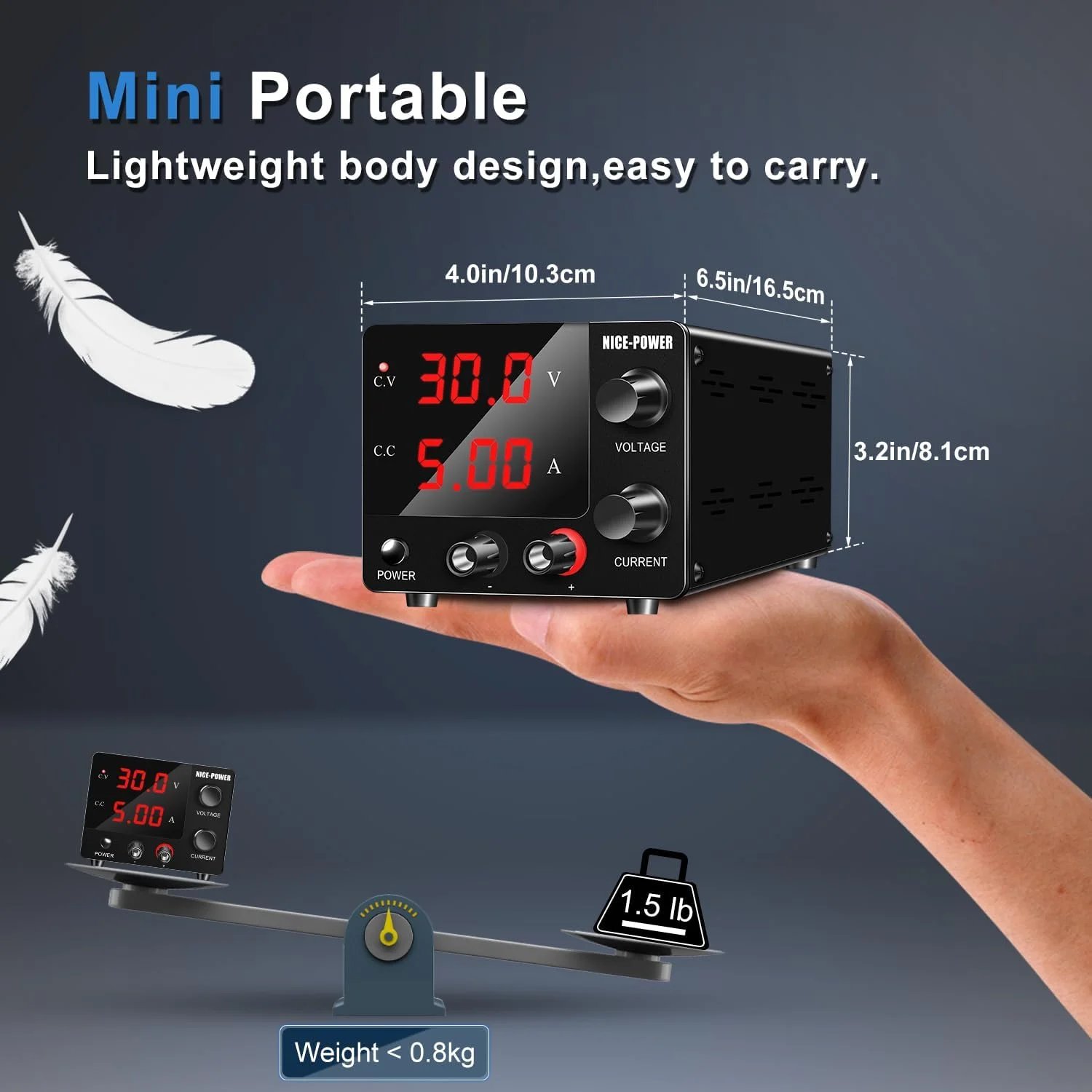

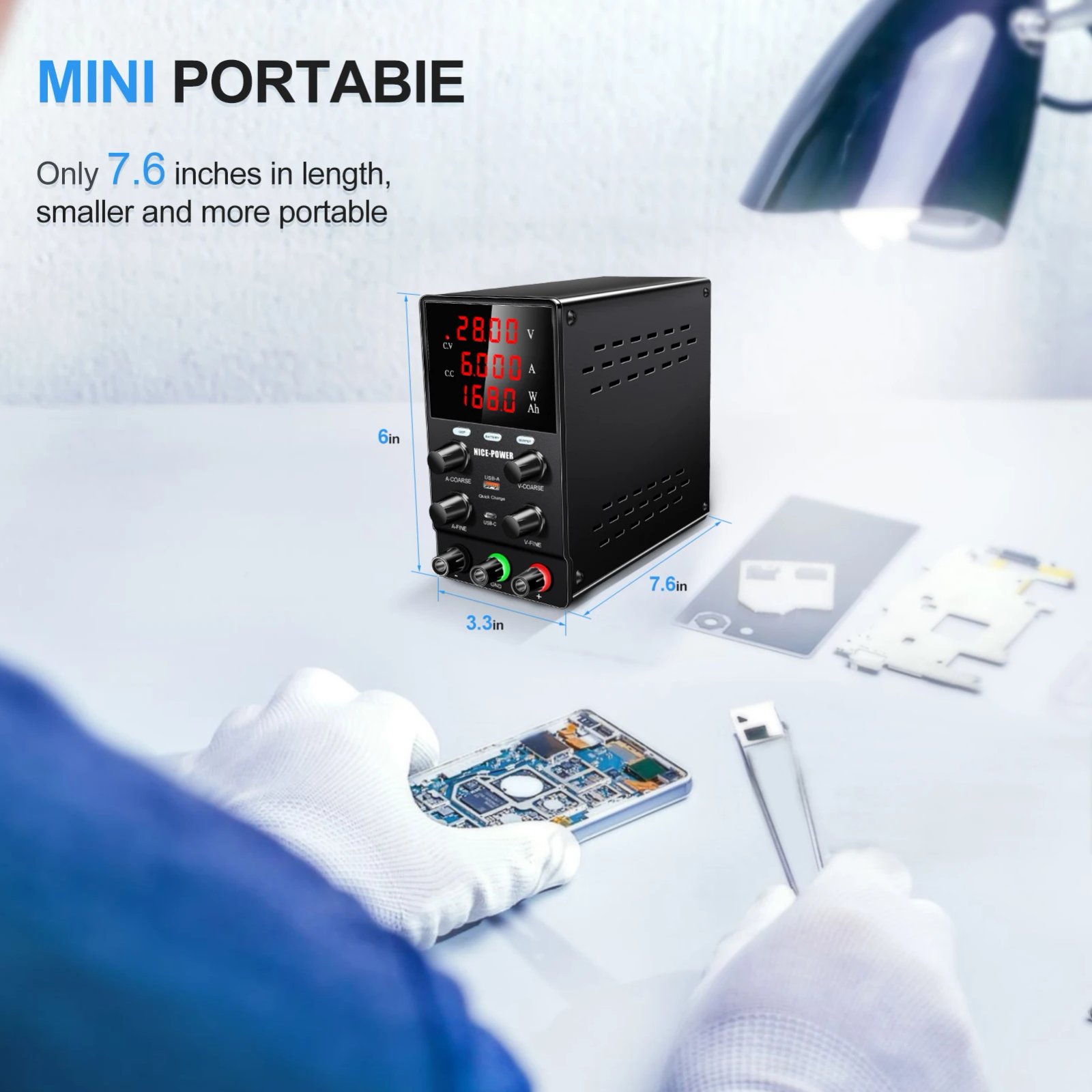

【Small and Diverse Applications】Worried about the bulky power supply? This compact and sophisticated DC power supply weighs much less than a laptop at just 1.54 pounds, saving more space on your workbench. And you can use it in various scenarios such as laboratory, repair, electrolysis, burn-in test, electroplating, brush plating, electronic DIY, etc.

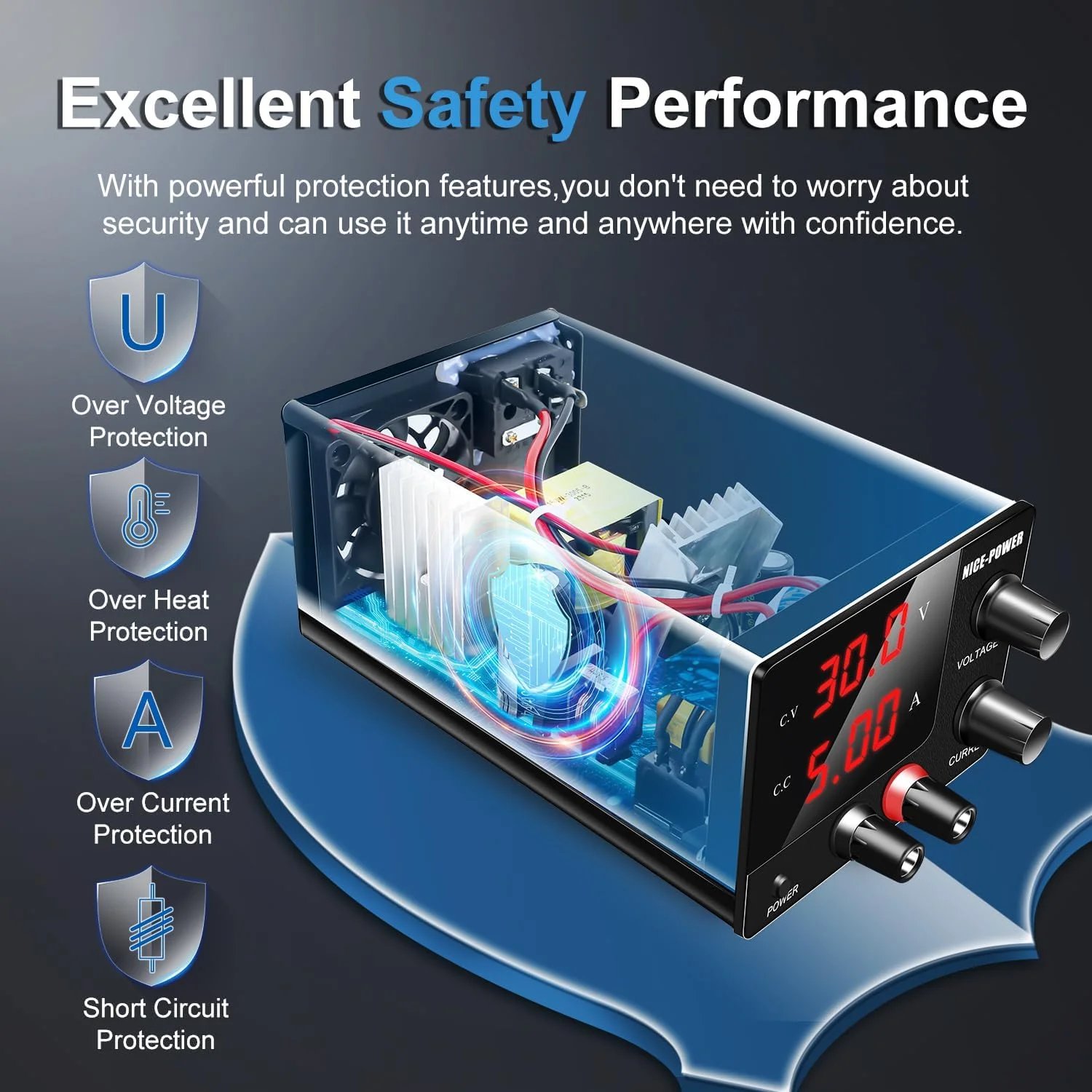

【Safe and Reliable to Use】Safety is our priority. The DC power supply is FCC/CE certified. The built-in fan low arc noise & low ripple,The power supply is durable and compact. Productive work since the power supply comes multiple protection of Over-voltage, over-current, over-power, over-temperature, short-circuit powerful protection function.

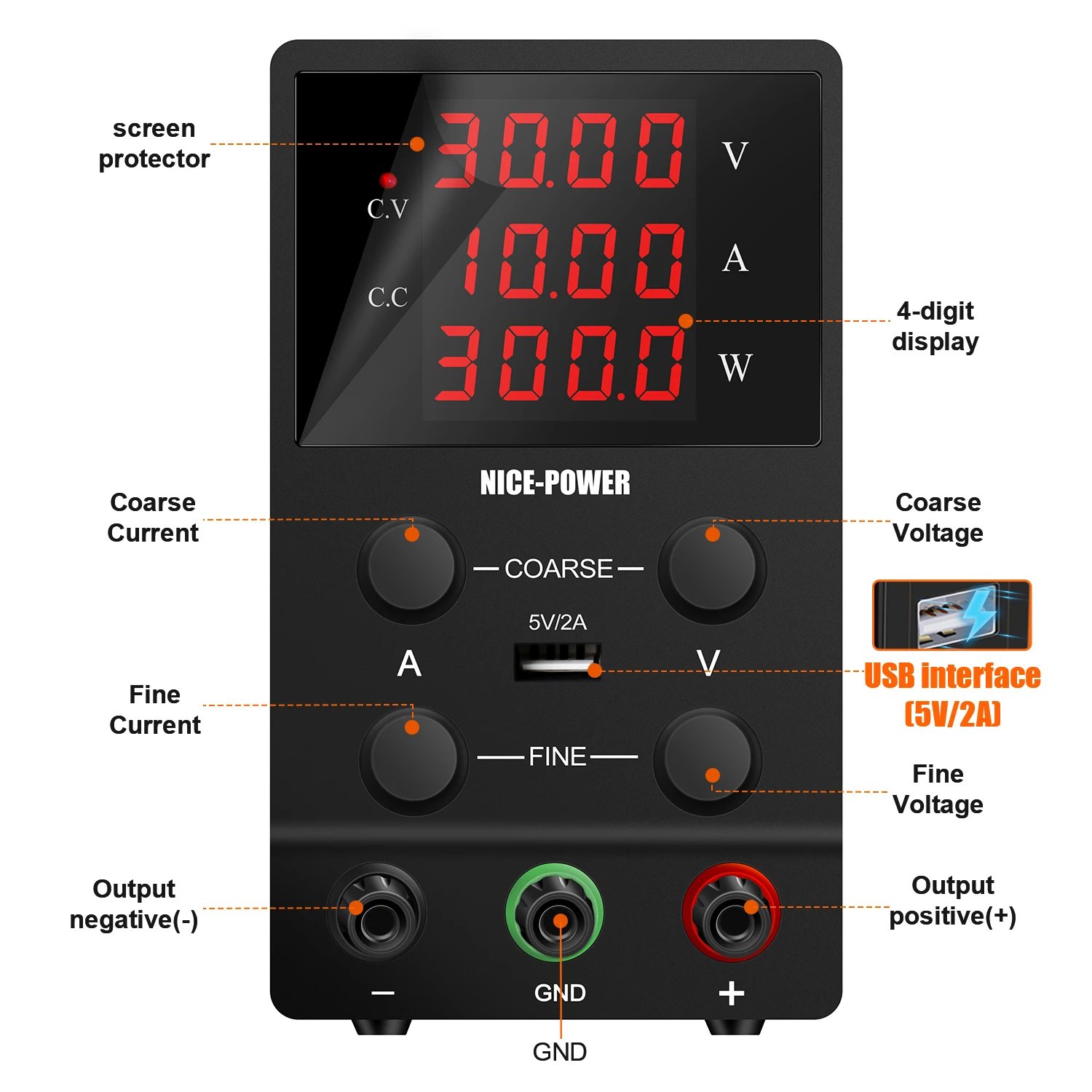

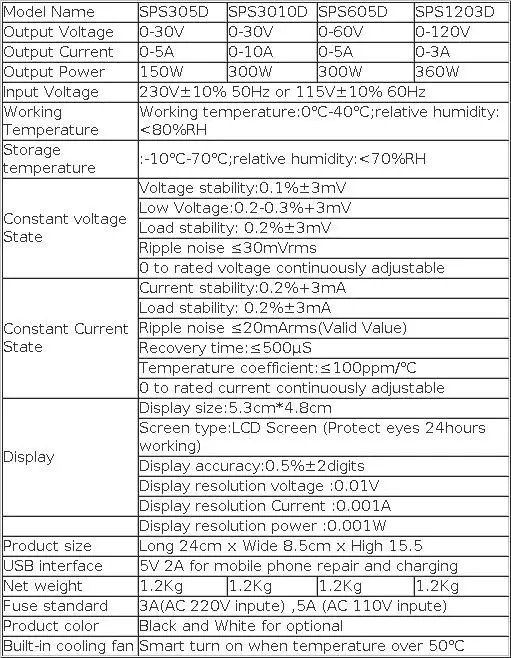

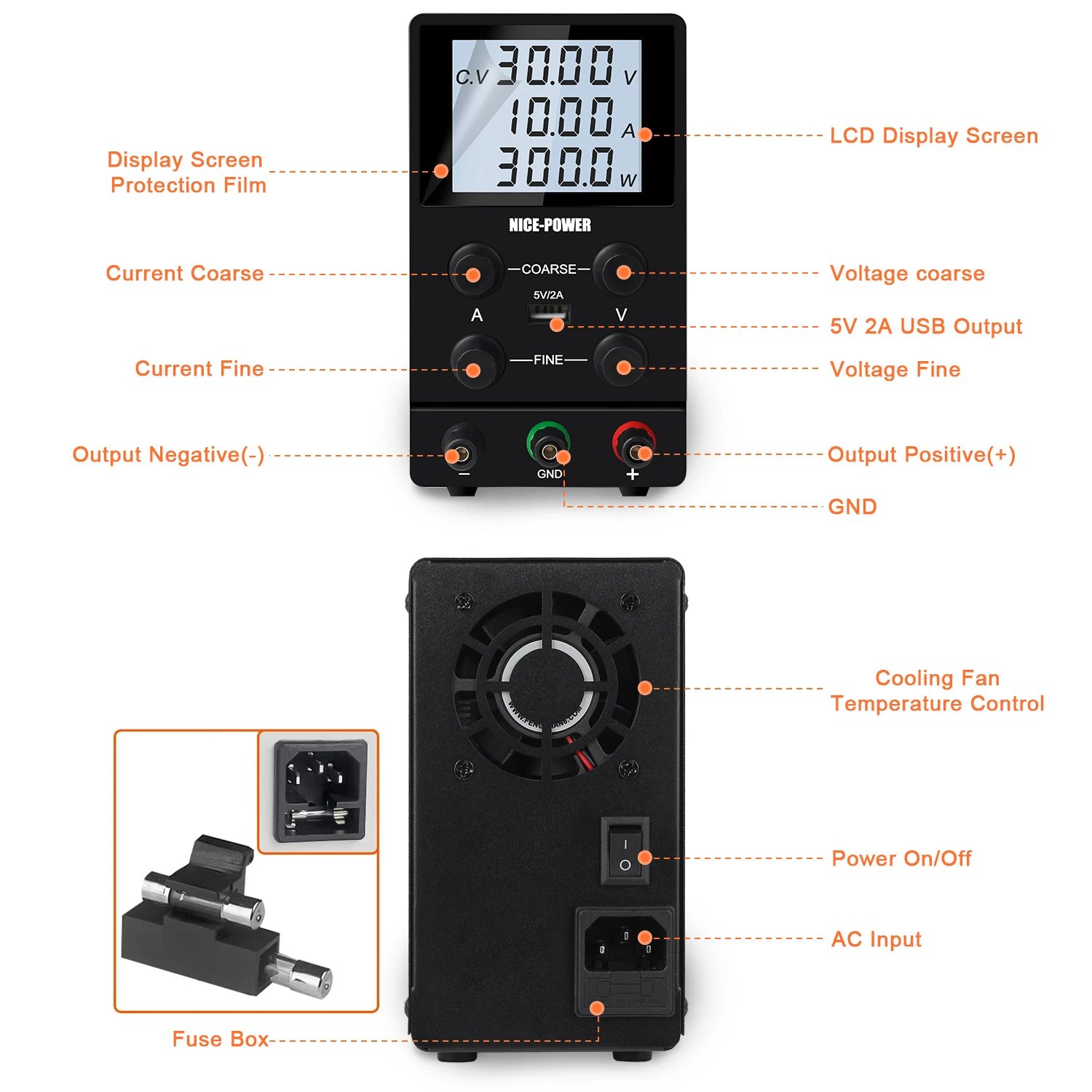

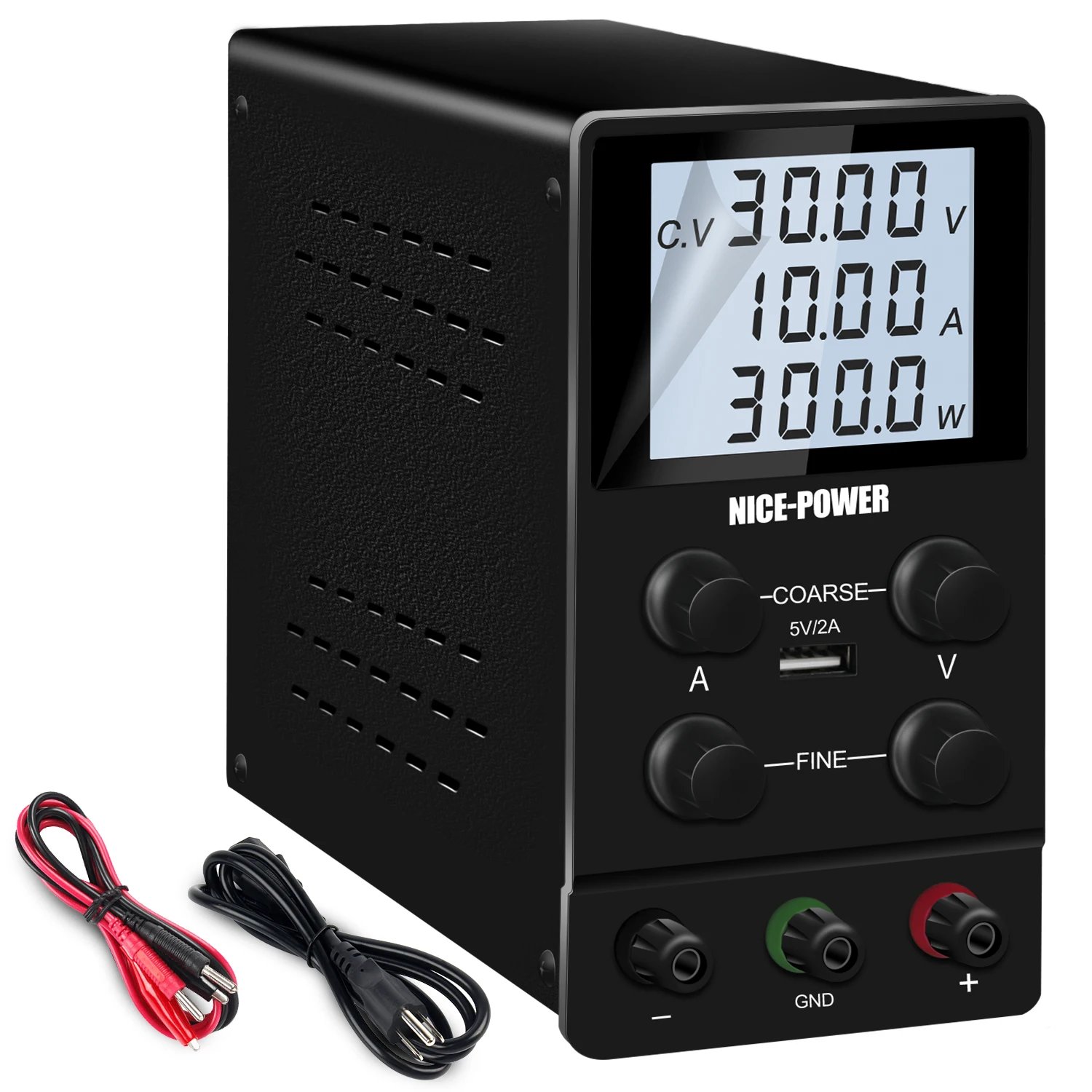

SPS305, SPS3010,SPS605,SPS1203 As Below:

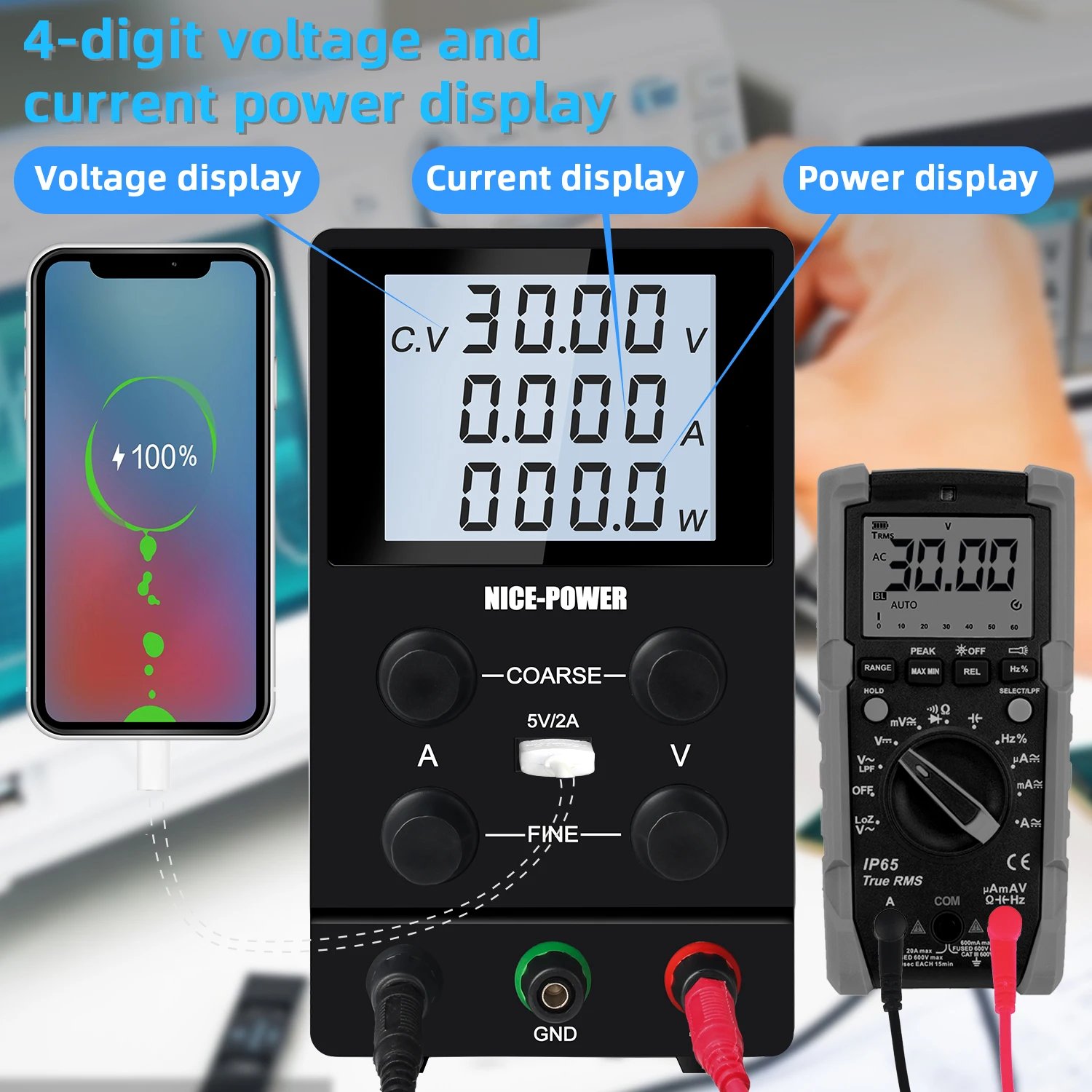

4 digit display
Voltage display
Current display
Power display
Four knobs/fine adjustment
Voltage/current adjustable
CV constant pressure lamp display
CC constant current lamp display

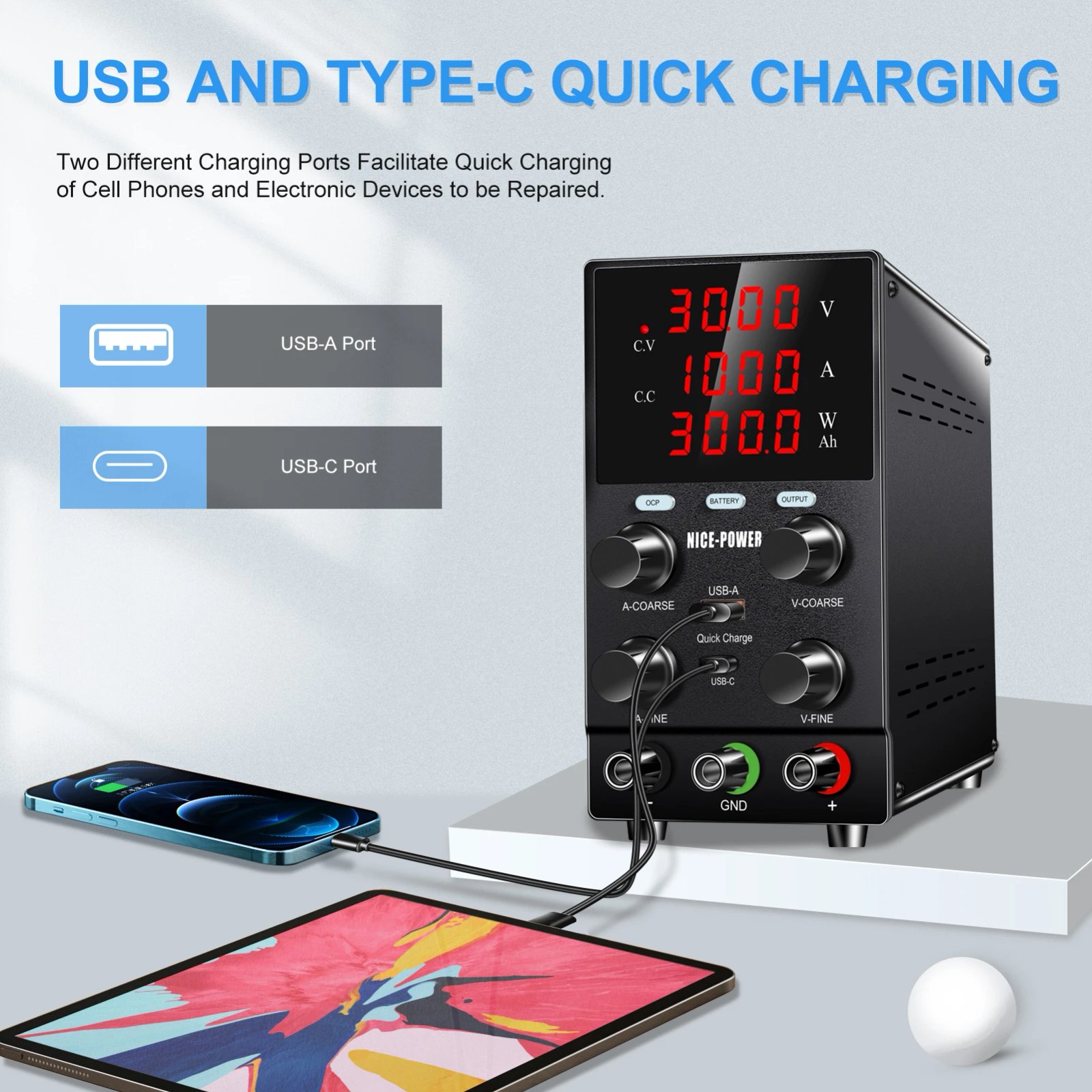

5V 2A USB Interface
Automatic cooling fan
Short circuit protection
Overvoltage protection
Current limiting protection
overload protection

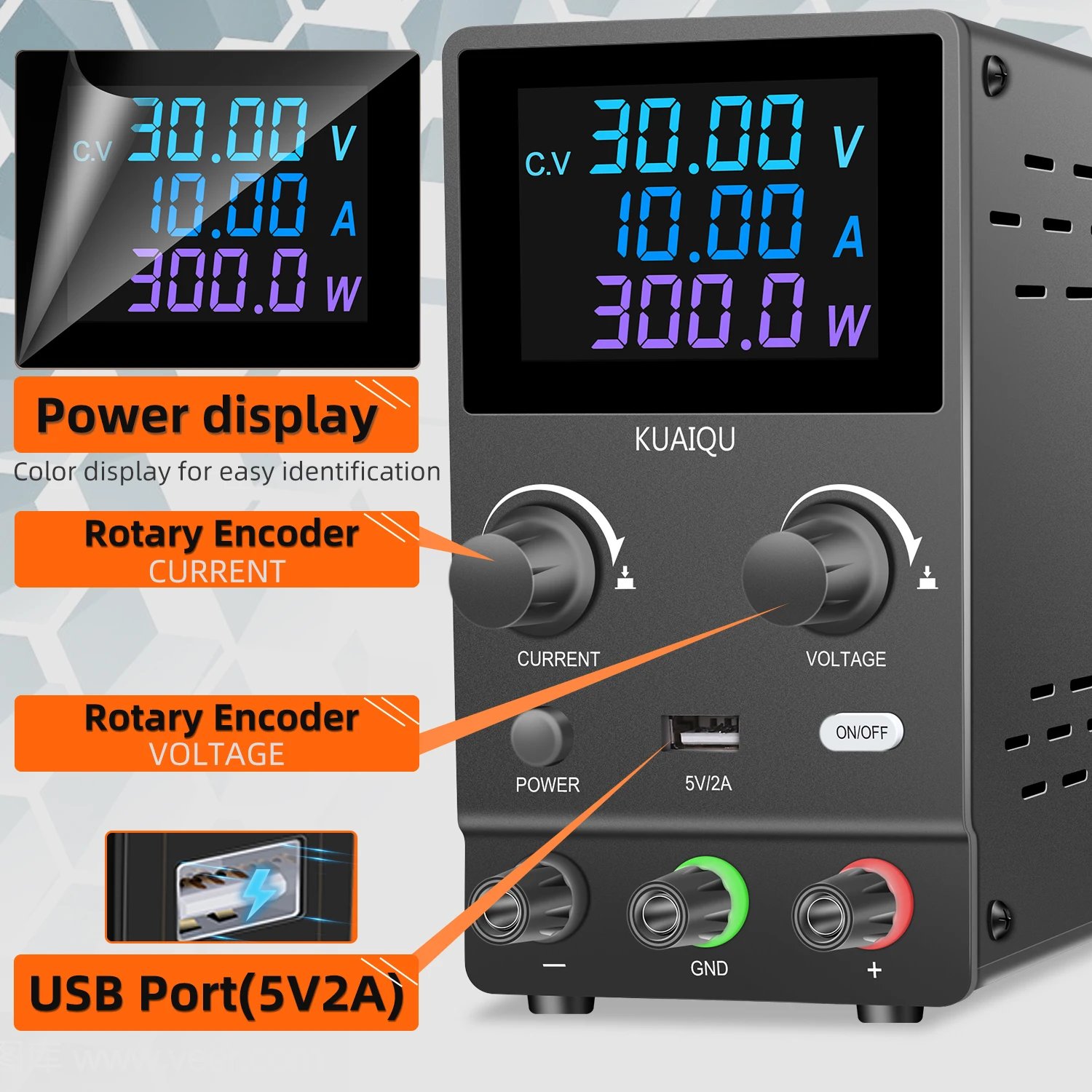

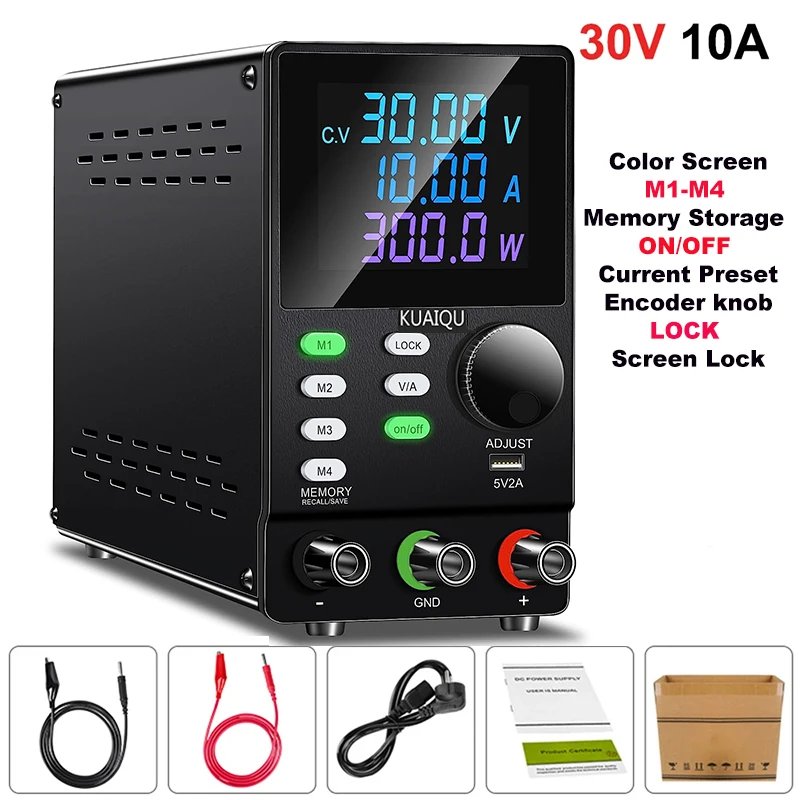

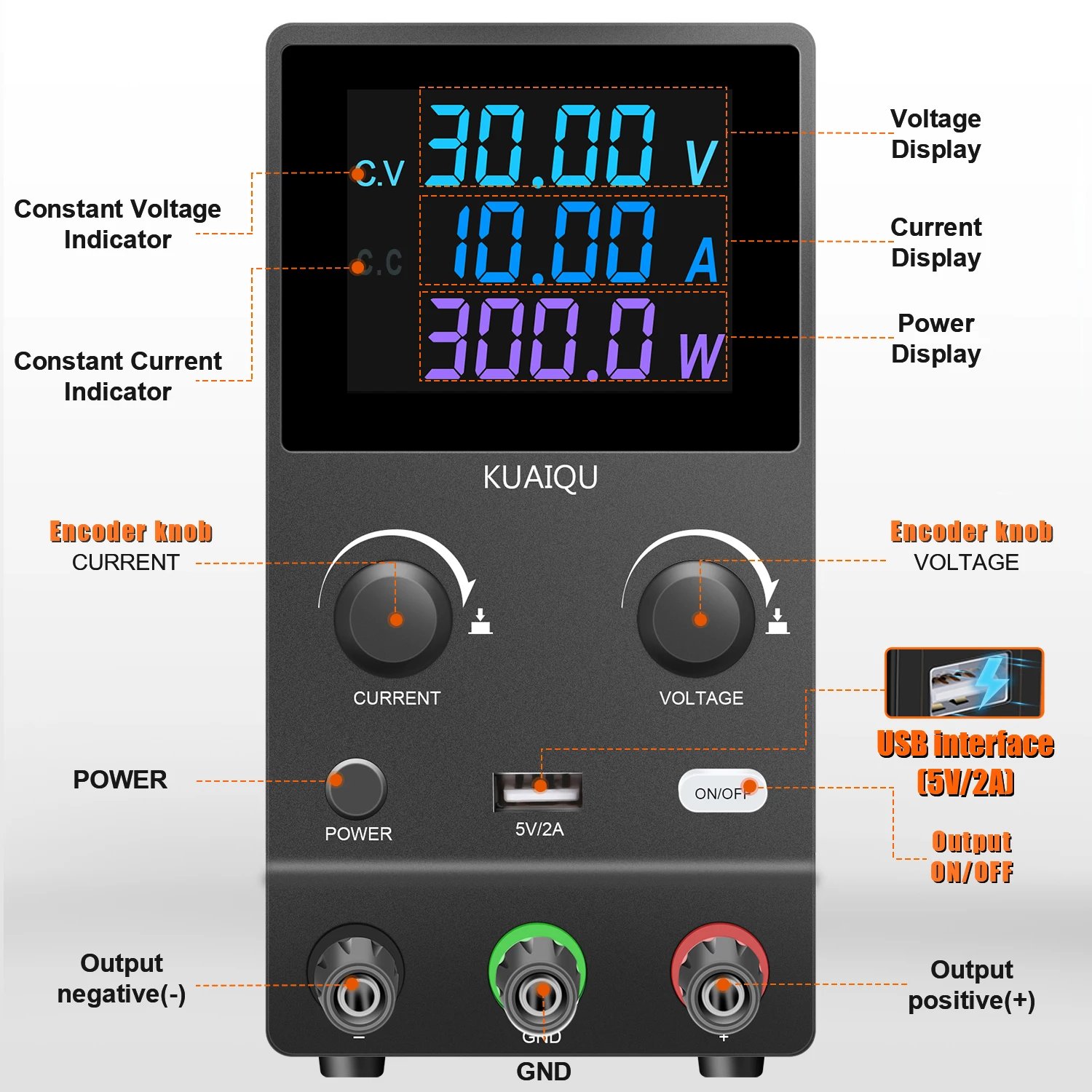

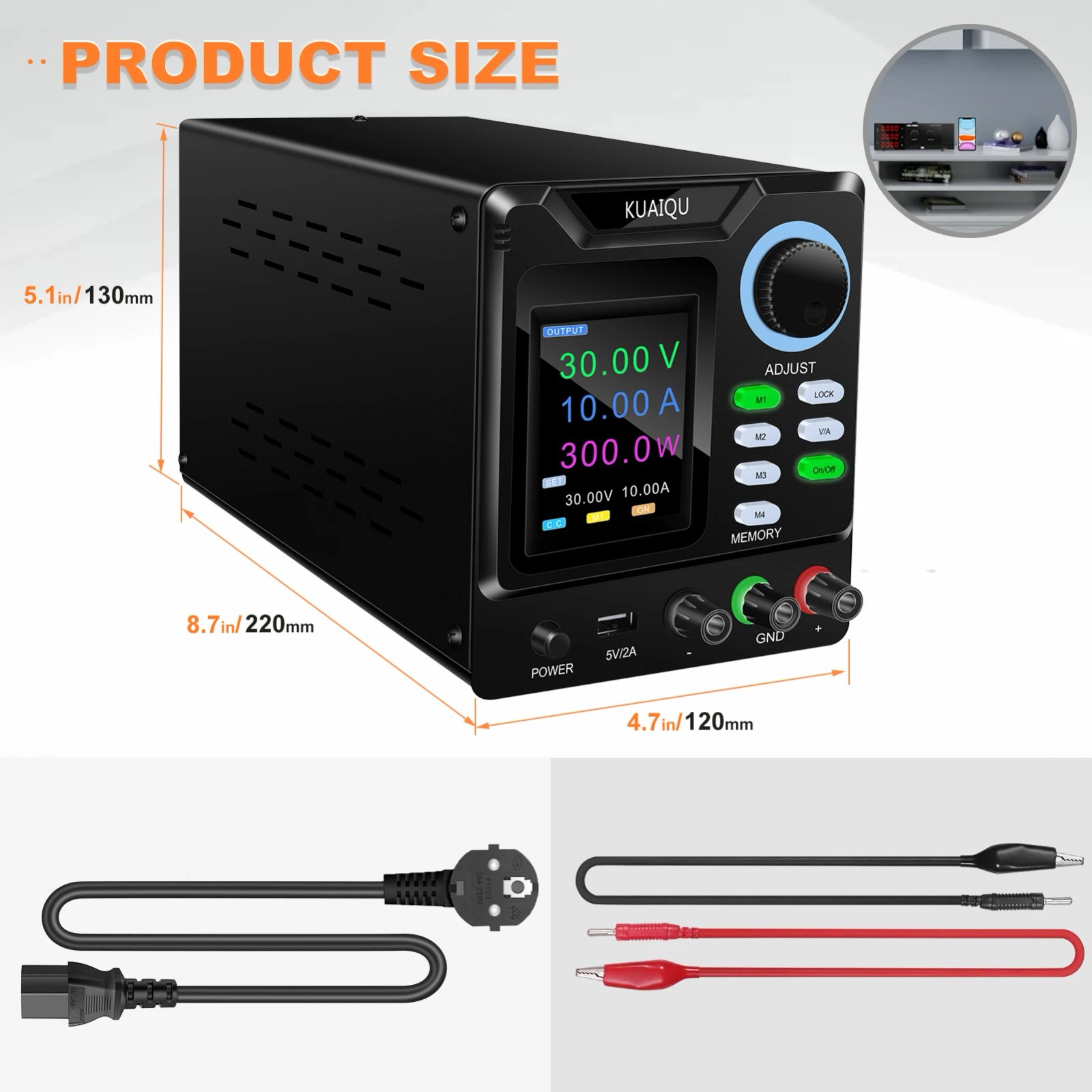

Color Screen 30V10A, As Below

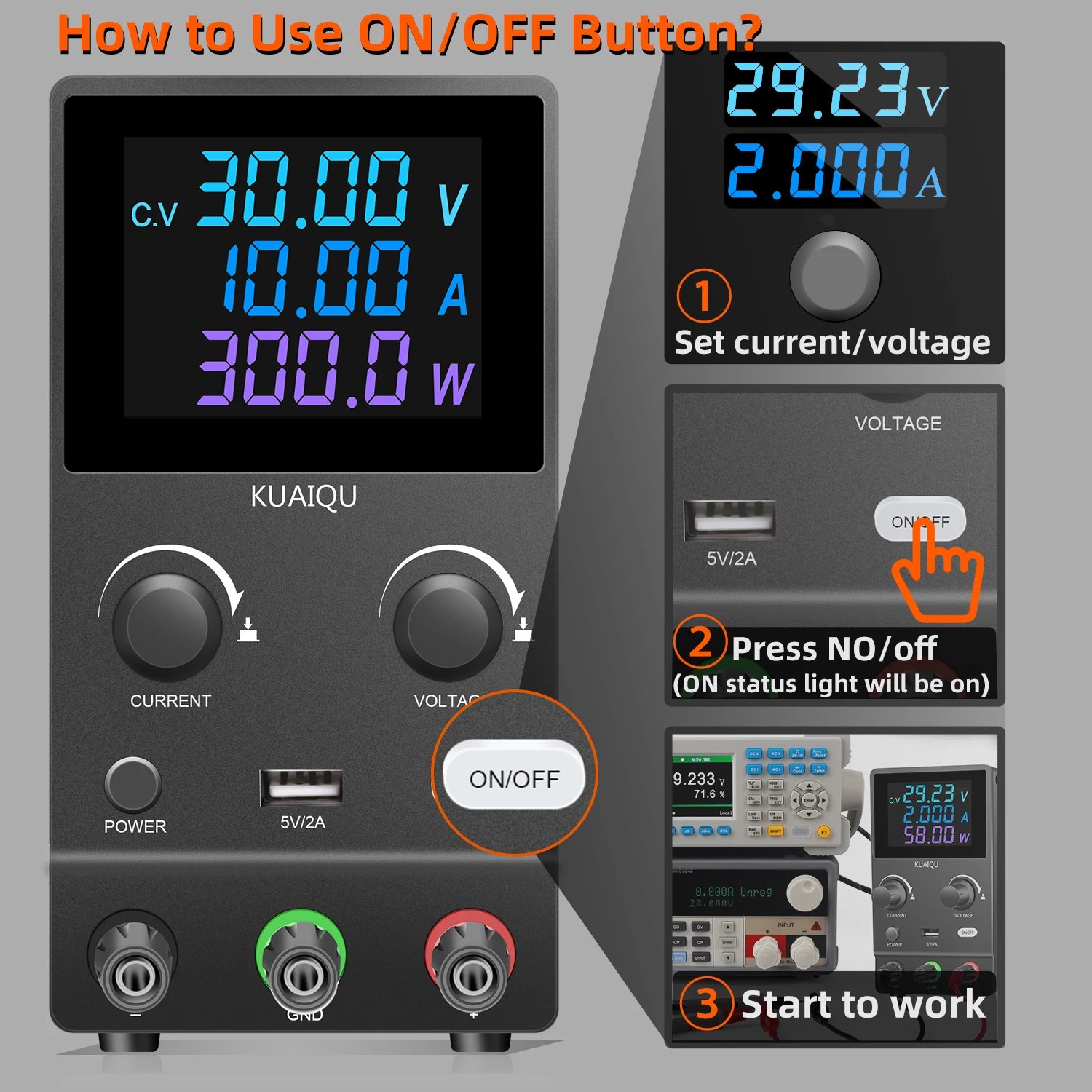

Output off function (preset current)
Encoder adjustment
Color LCD display
4 digit display
Voltage display
Current display
Power display
CV constant pressure lamp display
CC constant current lamp display
5V 2A USB Interface
Automatic cooling fan
Short circuit protection
Overvoltage protection
Current limiting protection
overload protection

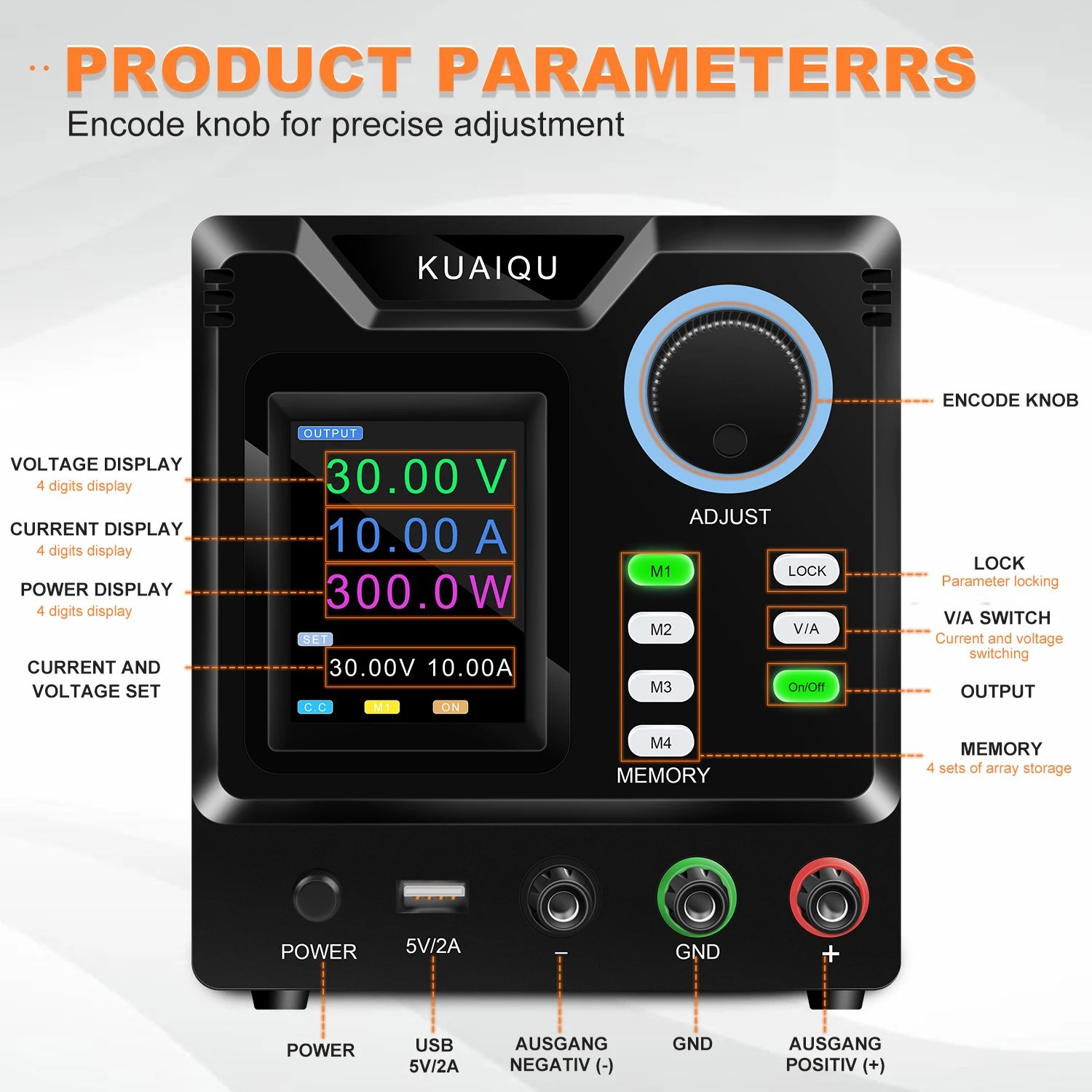

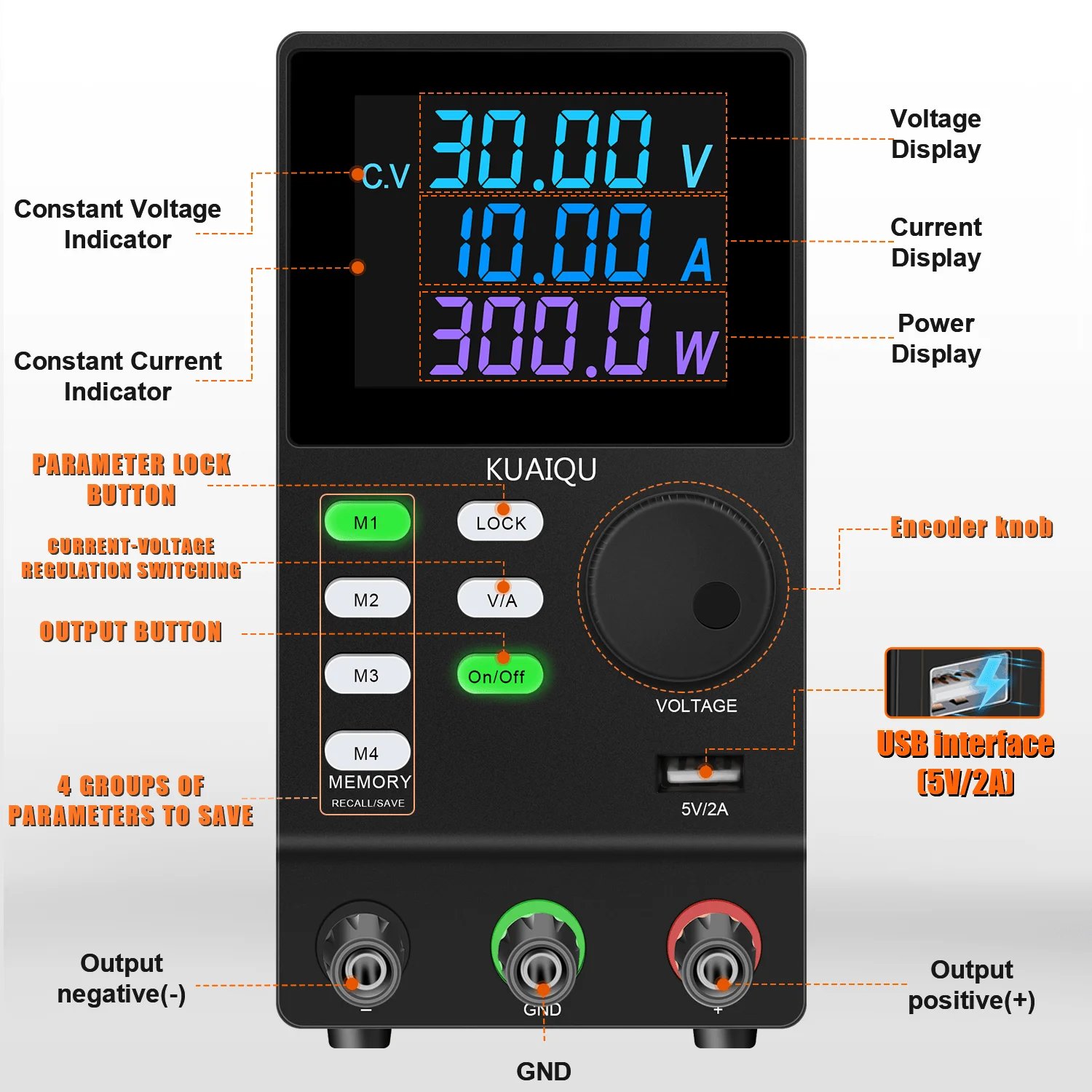

Program 30V10A As Below:
Output off function (preset current)
Encoder adjustment
LCD screen display

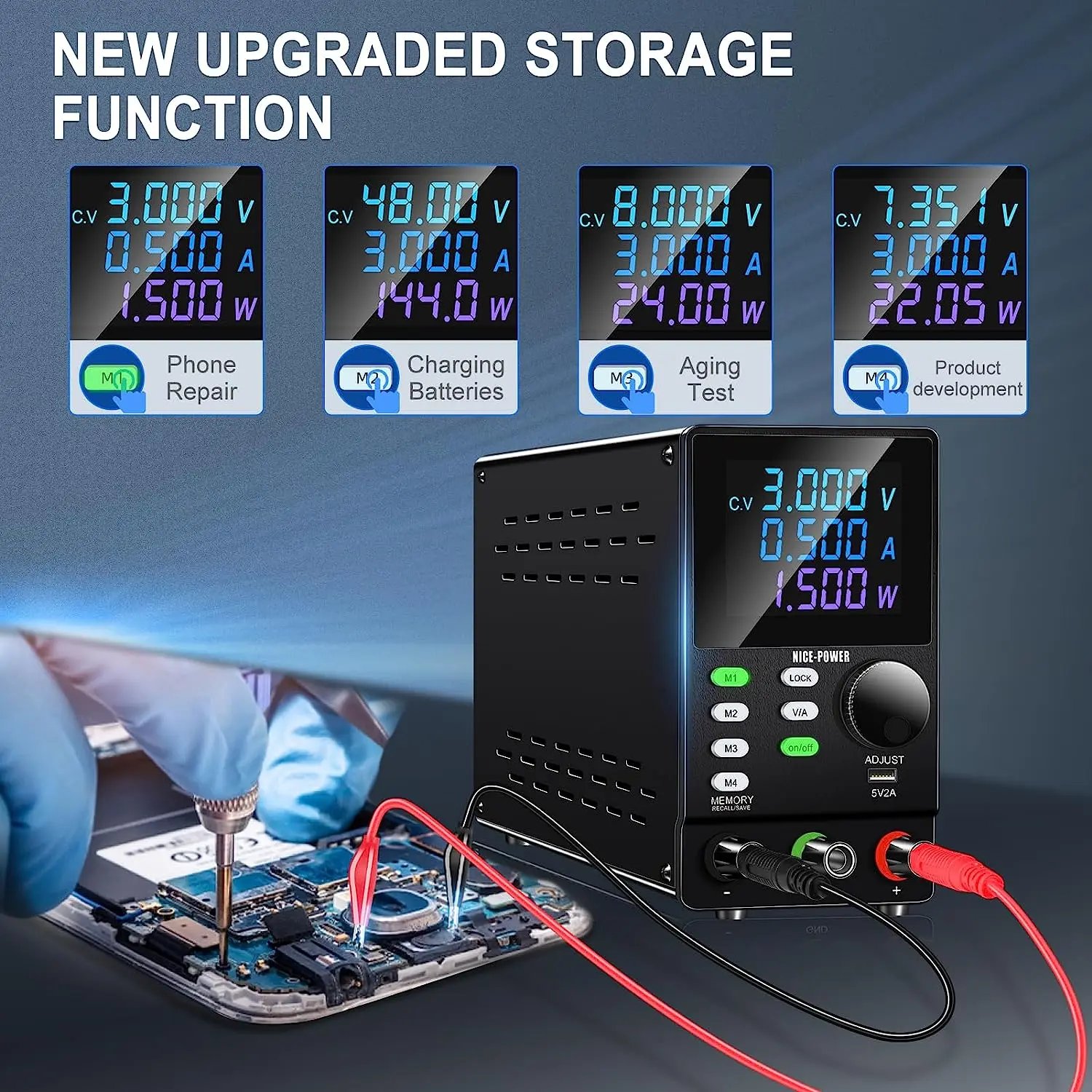

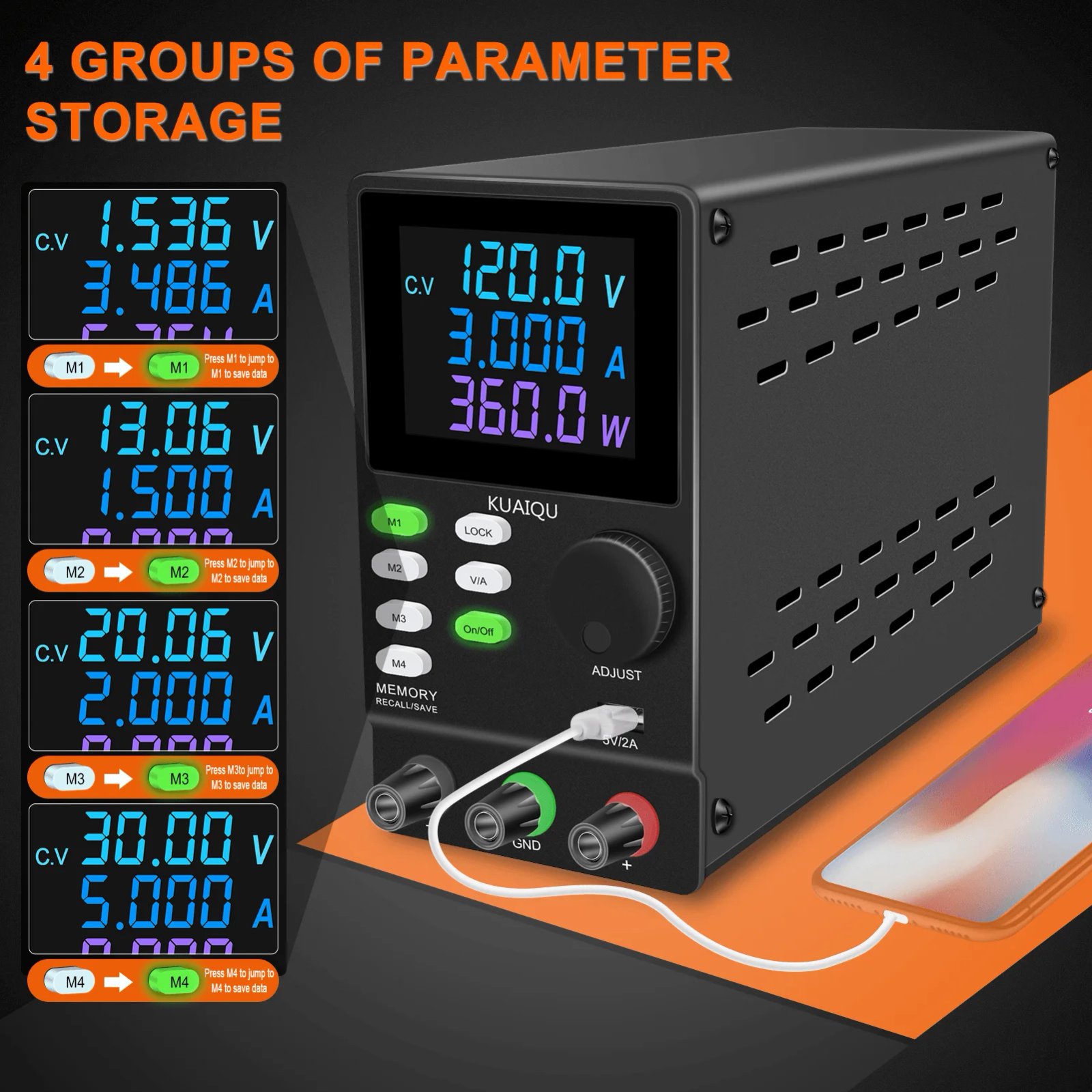

Programmable memory function
4 digit display
Voltage display
Current display
Power display
CV constant pressure lamp display
CC constant current lamp display
5V 2A USB Interface
Automatic cooling fan
Short circuit protection
Overvoltage protection
Current limiting protection
overload protection

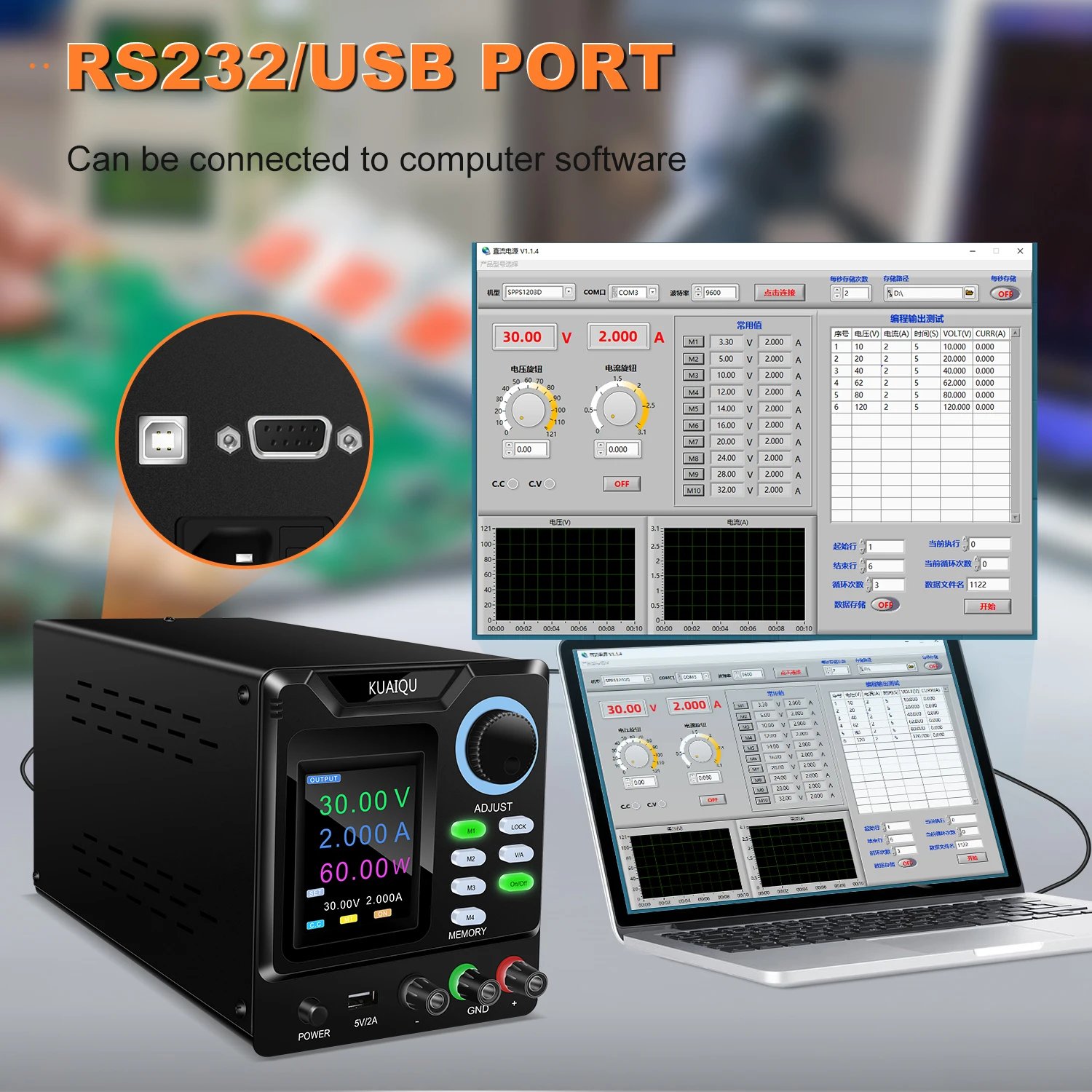

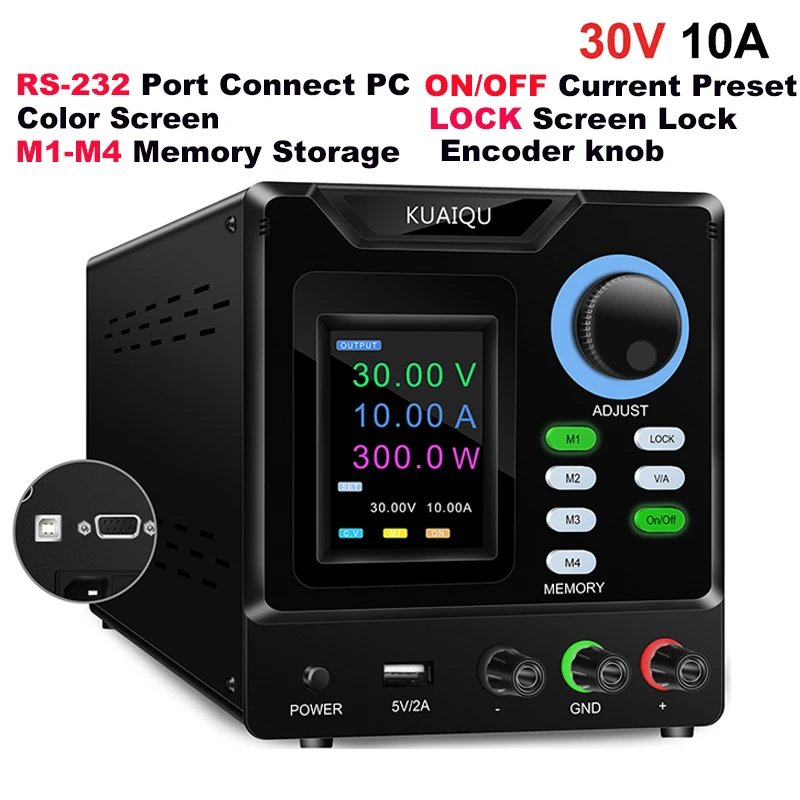

RS-232 30V10A As Below
RS-232 Port connect PC
Output off function (preset current)
Encoder adjustment
LCD screen display
Programmable memory function
4 digit display
Voltage display
Current display
Power display
CV constant pressure lamp display
CC constant current lamp display
5V 2A USB Interface
Automatic cooling fan
Short circuit protection
Overvoltage protection
Current limiting protection
overload protection
Questions & Answer
Q 1:The current knob has been turned,why can’t the current be adjusted?
A 1:You must connecte a load and the voltage setting cannot be 0, and then the current is adjusted

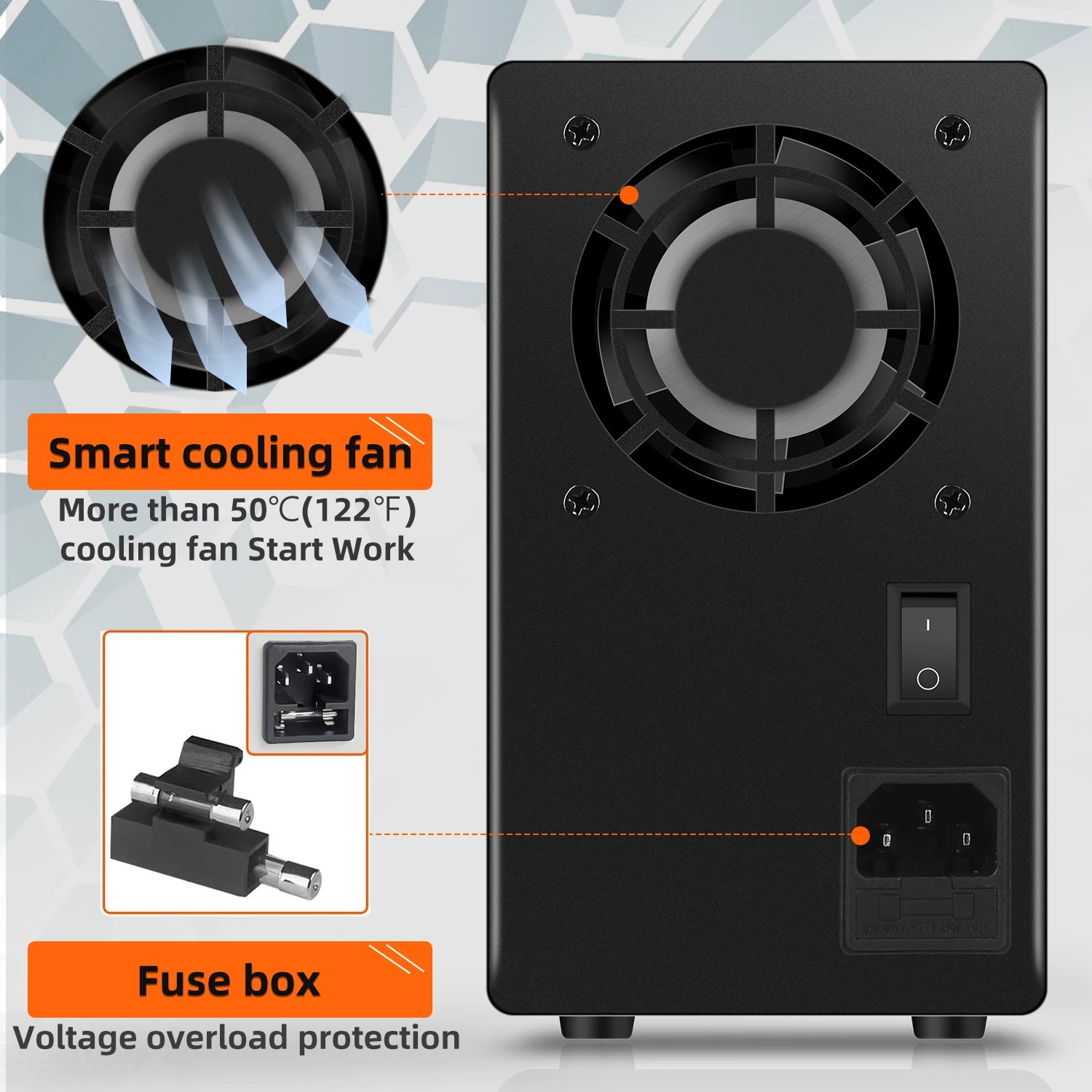

Q 2:Why isn’t the cooling fan working?

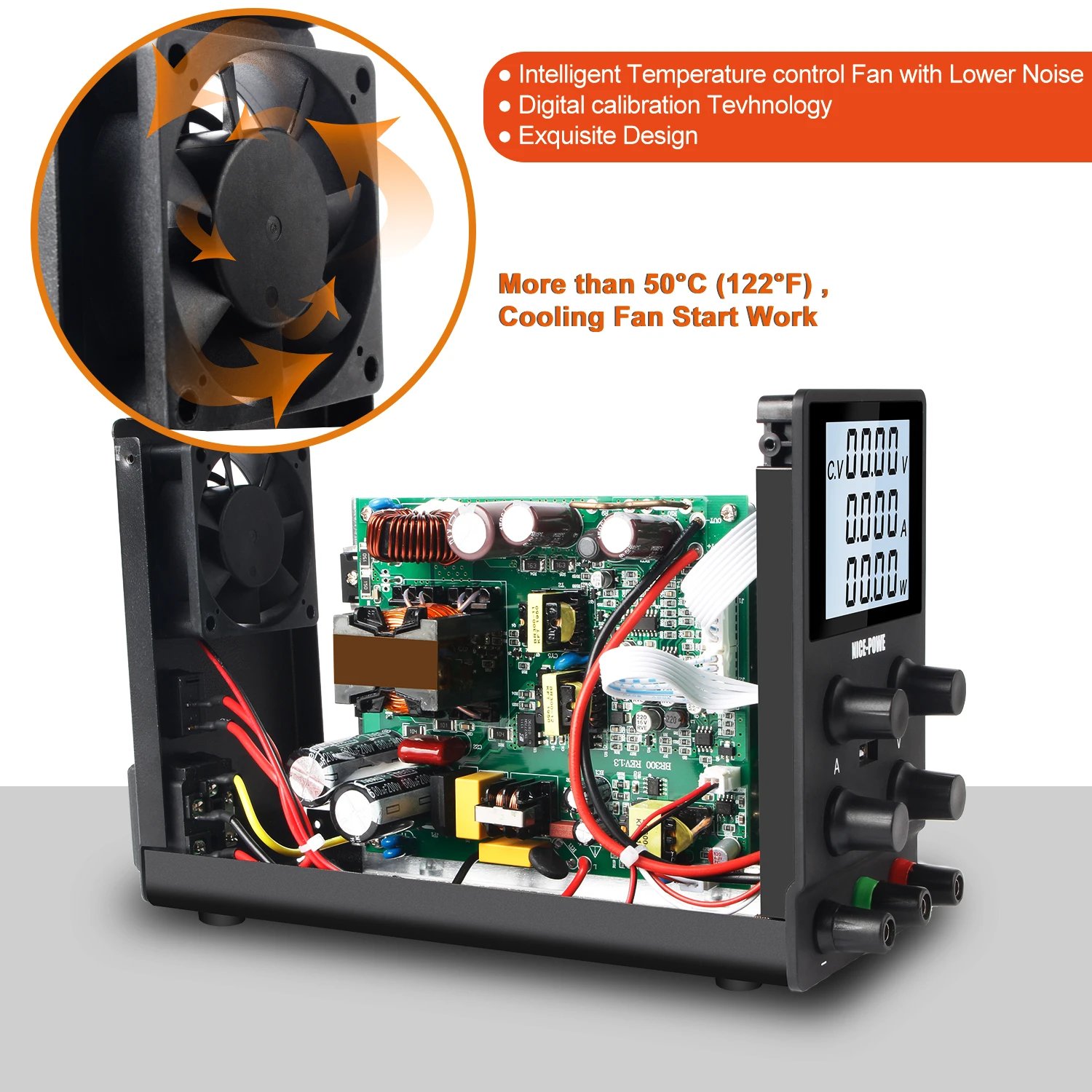

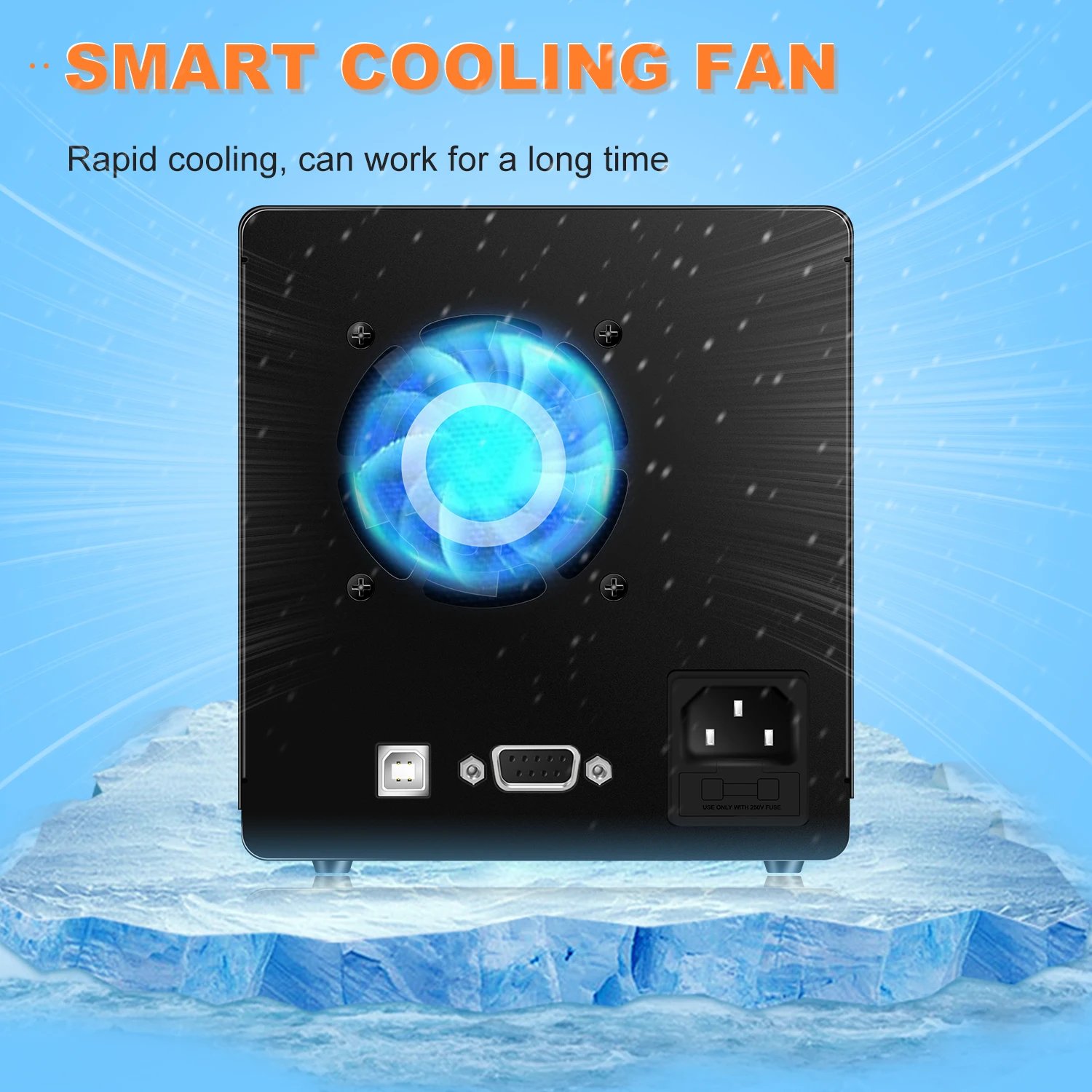

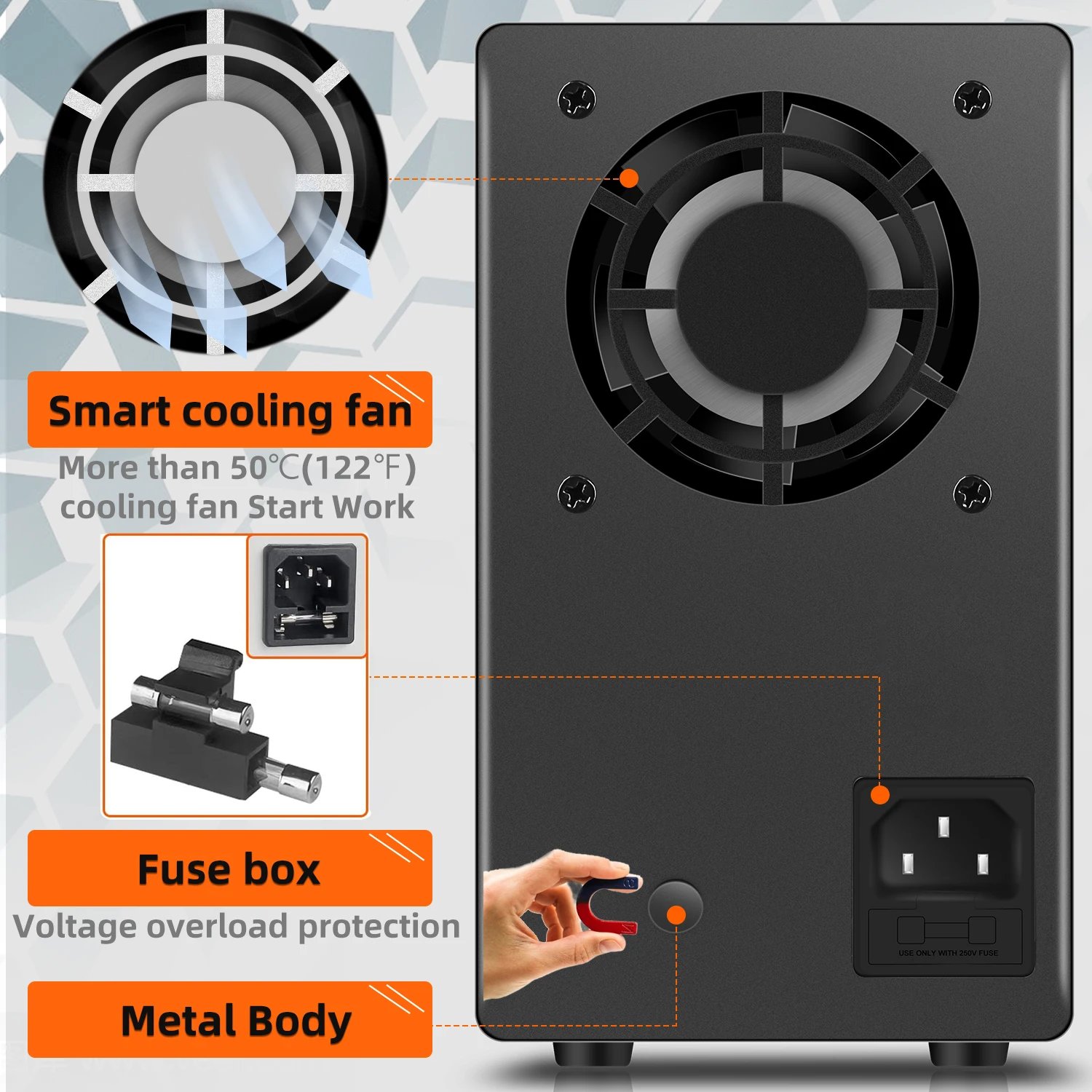

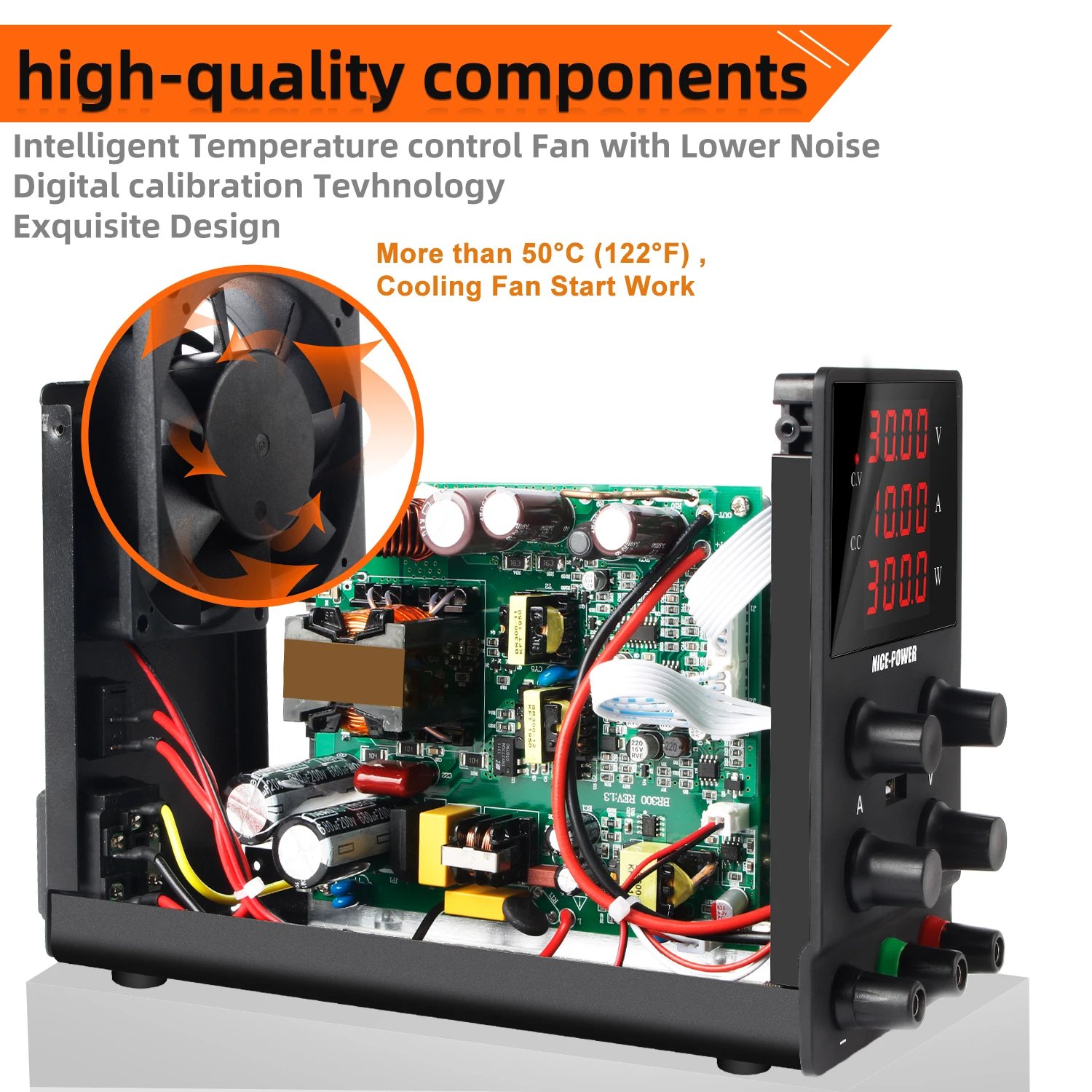

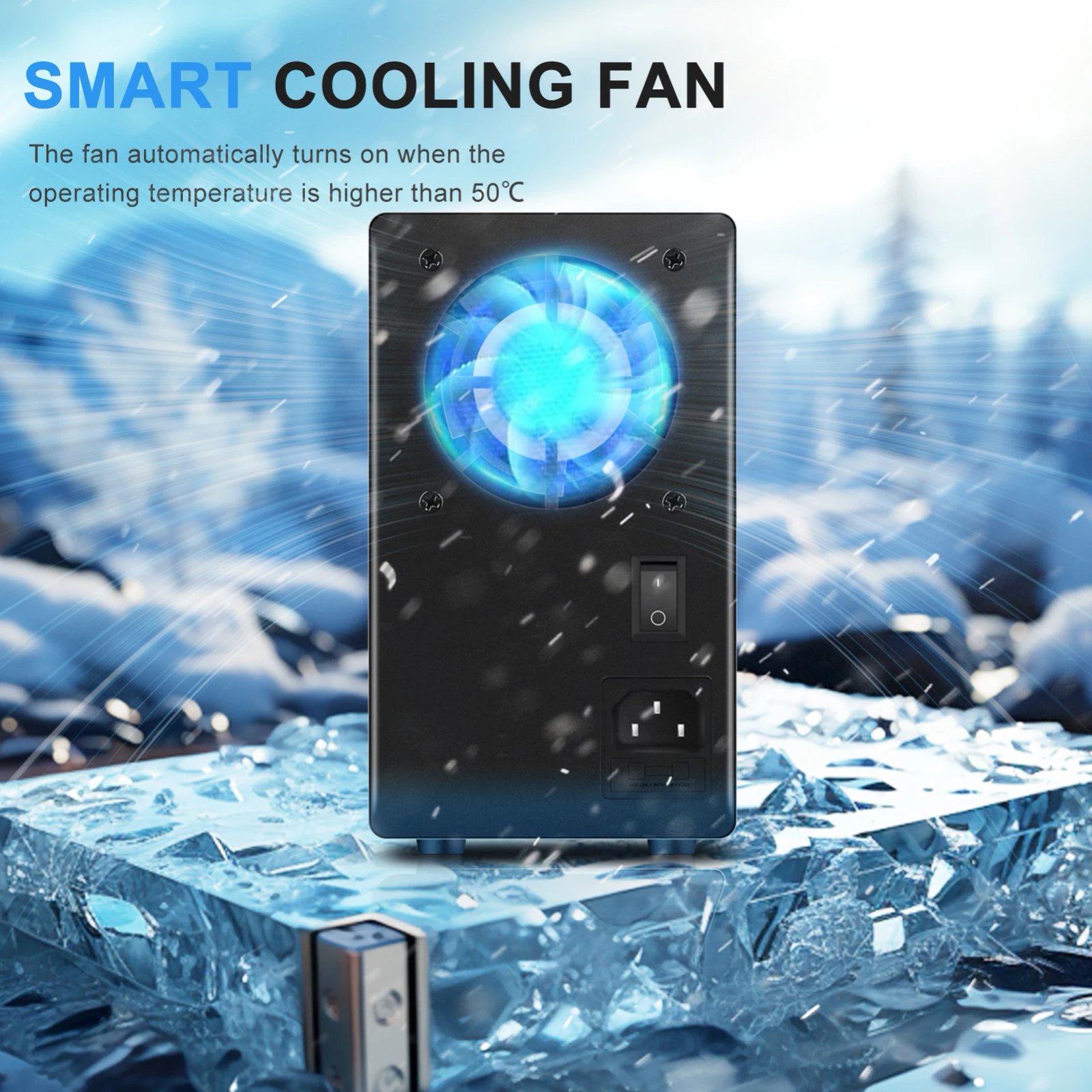

A 2:We installed a smart cooling fan with a built-in temperature control sensor that turns on when the temperature reaches 50 degrees Celsius.
Q 3:I can’t choose the input voltage 220V or 110V?And the EU/AU/US/UK plug ?
A 3:We will send the corresponding products and plug according to your country, if you have
special needs, please contact us, we will send the correct products to you.
Q 4:Scratches on the screen？
A 3:There is a protective film on the screen that can be peeled off.
