Note before order

This is a Wi-Fi only Curtain Switch Module, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.

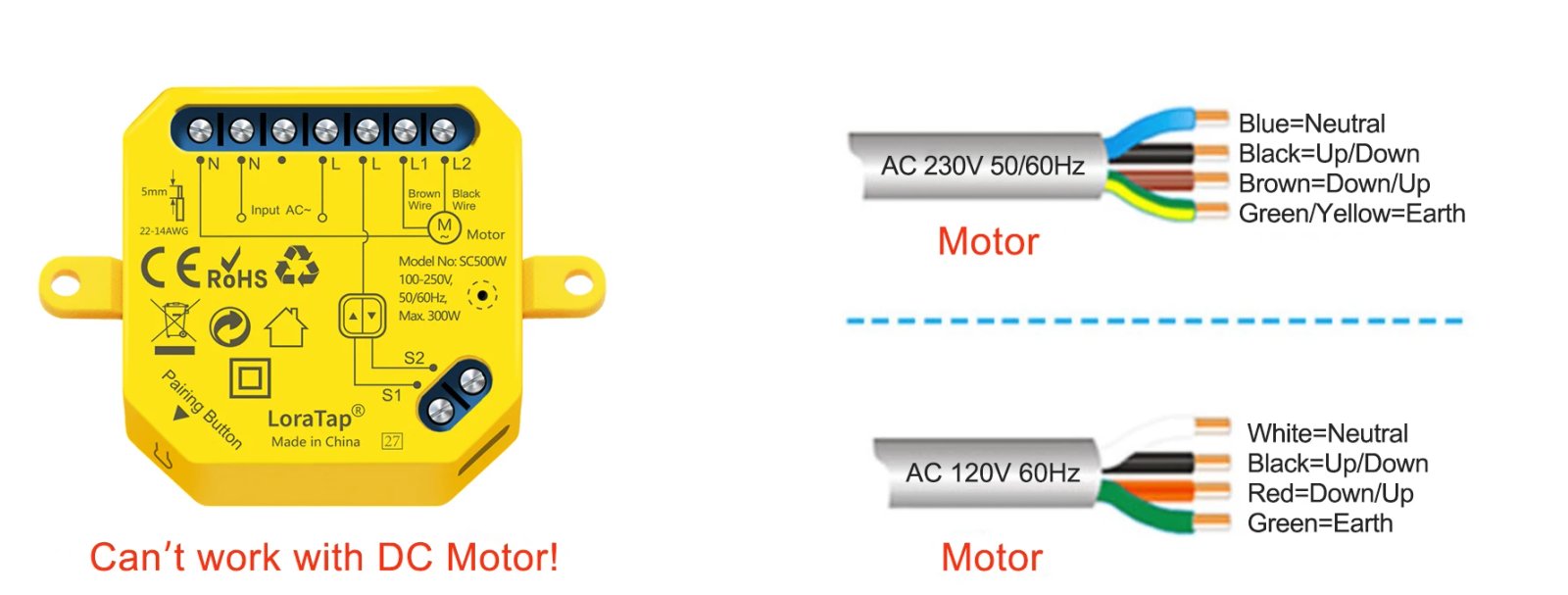

– Input Voltage: 100~250VAC, 50/60Hz；Output Voltage(Motor Voltage): 100~250VAC, 50/60Hz(Our switch can’t work with DC motor!)
– Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our curtain switch module. And please be noted that neutral wire is a must for the installation, or you can’t use our device.
– Our curtain switch module is compatible with toggle switch(rocker switch, back and forth switch, 3 stable status switch) and button switch(spring switch), but if your wall switch is button switch or spring switch, the wall switch needs to be pressed all the time to give a continuous signal to run the motor. Please don’t buy our curtain switch module if you mind this operation manner change.

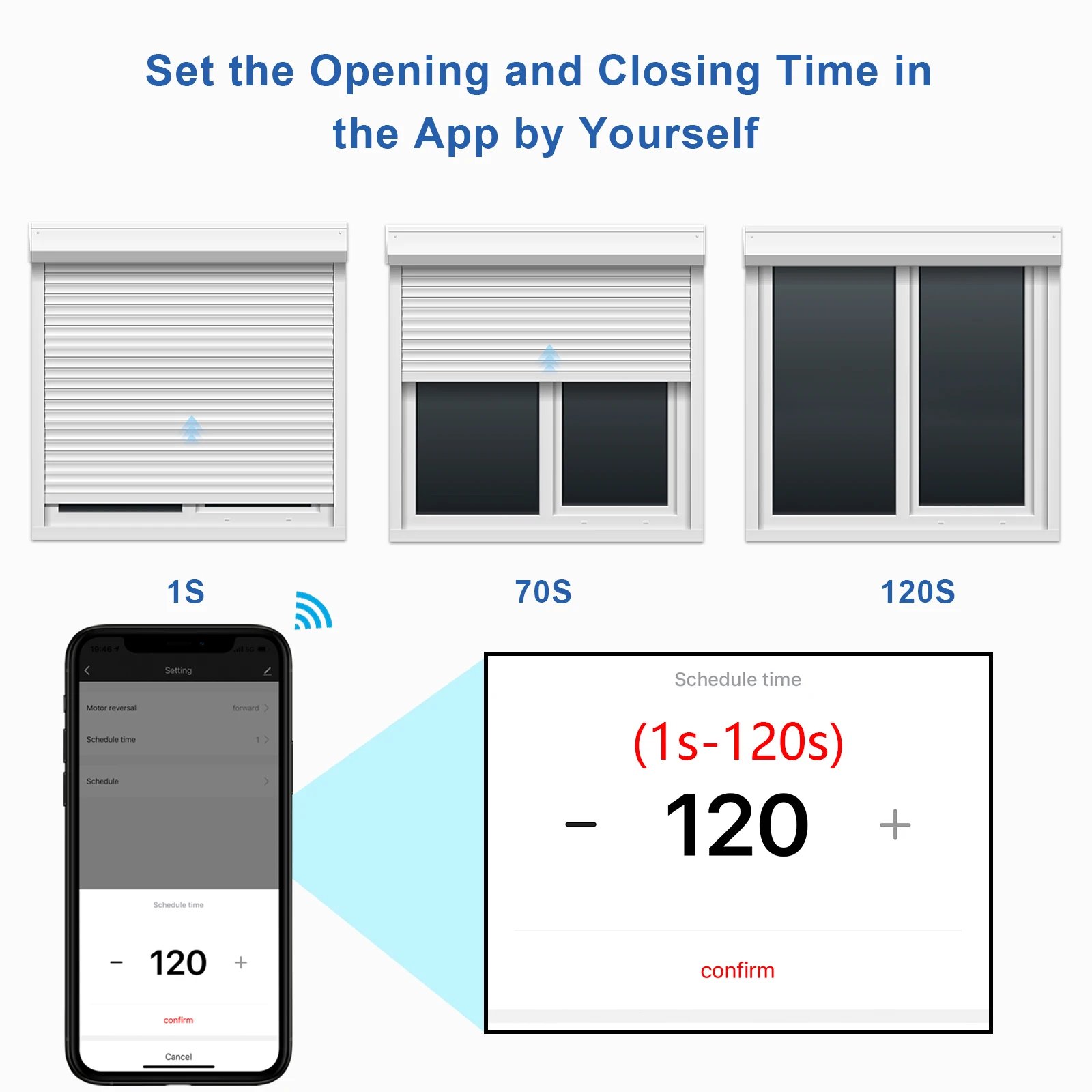

New Function – Set Motor Working Time

– You can set the switch operation time 1s-120s quickly in the app according to your need. Then you can open the curtain at the duration time(1 ~ 120 seconds) as you need.

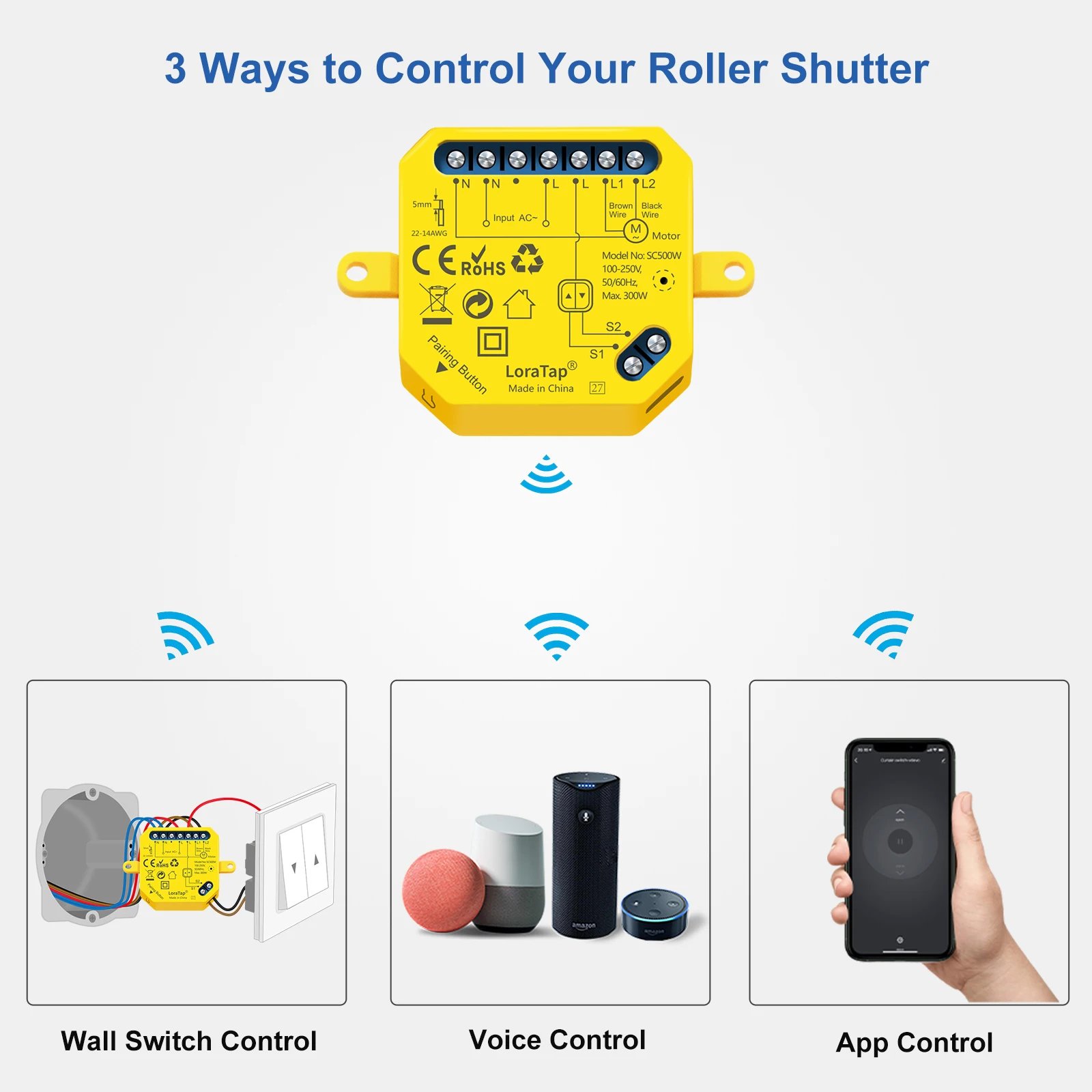

3 Ways to Control Your Roller Shutter

– 1. After you install this module, your wall manual switch still works, it can open , pause, or close the shutter.
– 2. Voice Control with Google Home, Amazon Alexa.
– 3. Mobile app remote control to open or close curtains.

Voice Control

– Voice Control with Google Home, Amazon Alexa.
– With voice control to turn on and turn off the curtains.

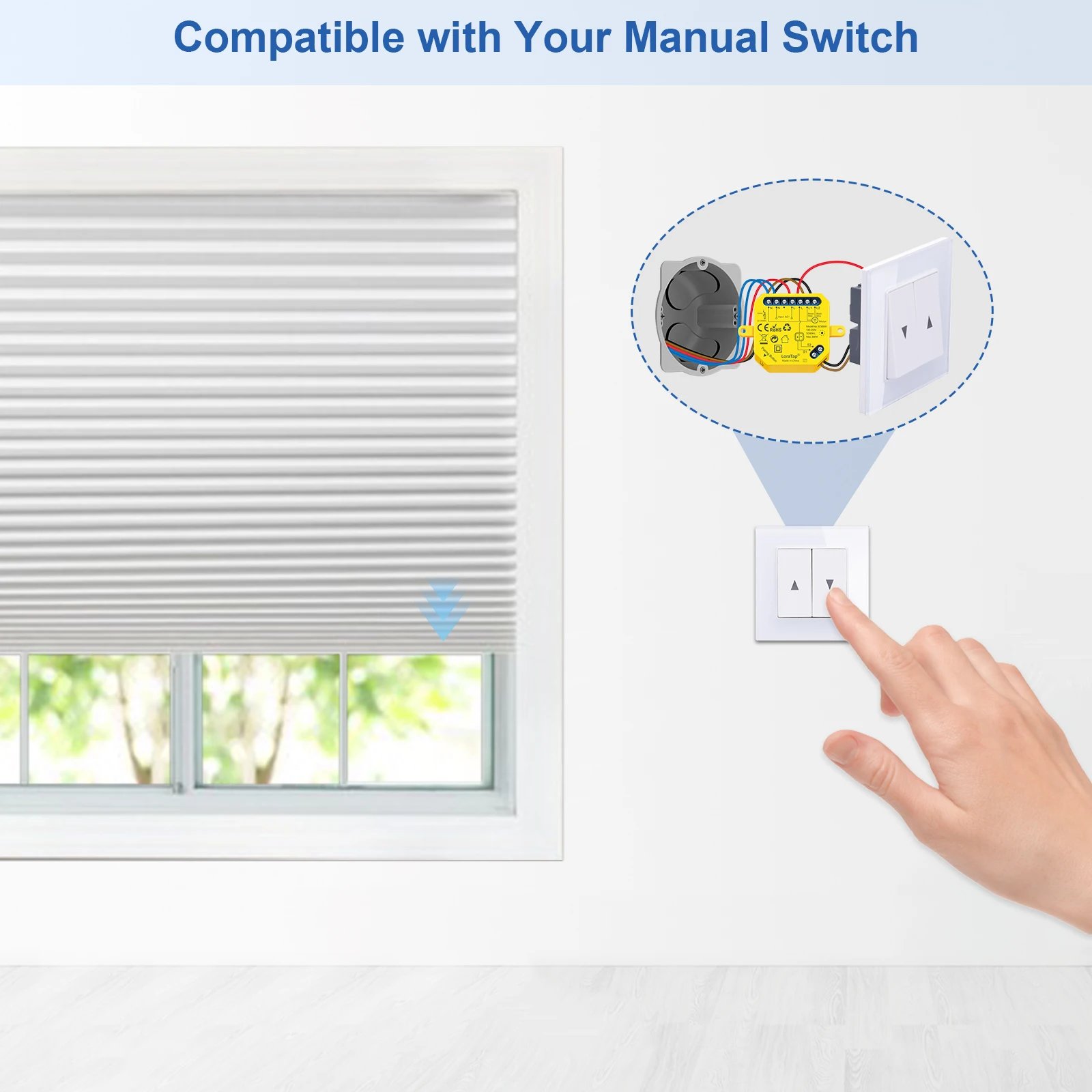

Compatible with Your Manual Switch

– After you install this module, your wall manual switch still works, it can open , pause, or close the shutter.
– In the absence of internet, you can still open or close the curtains through the wall switch.

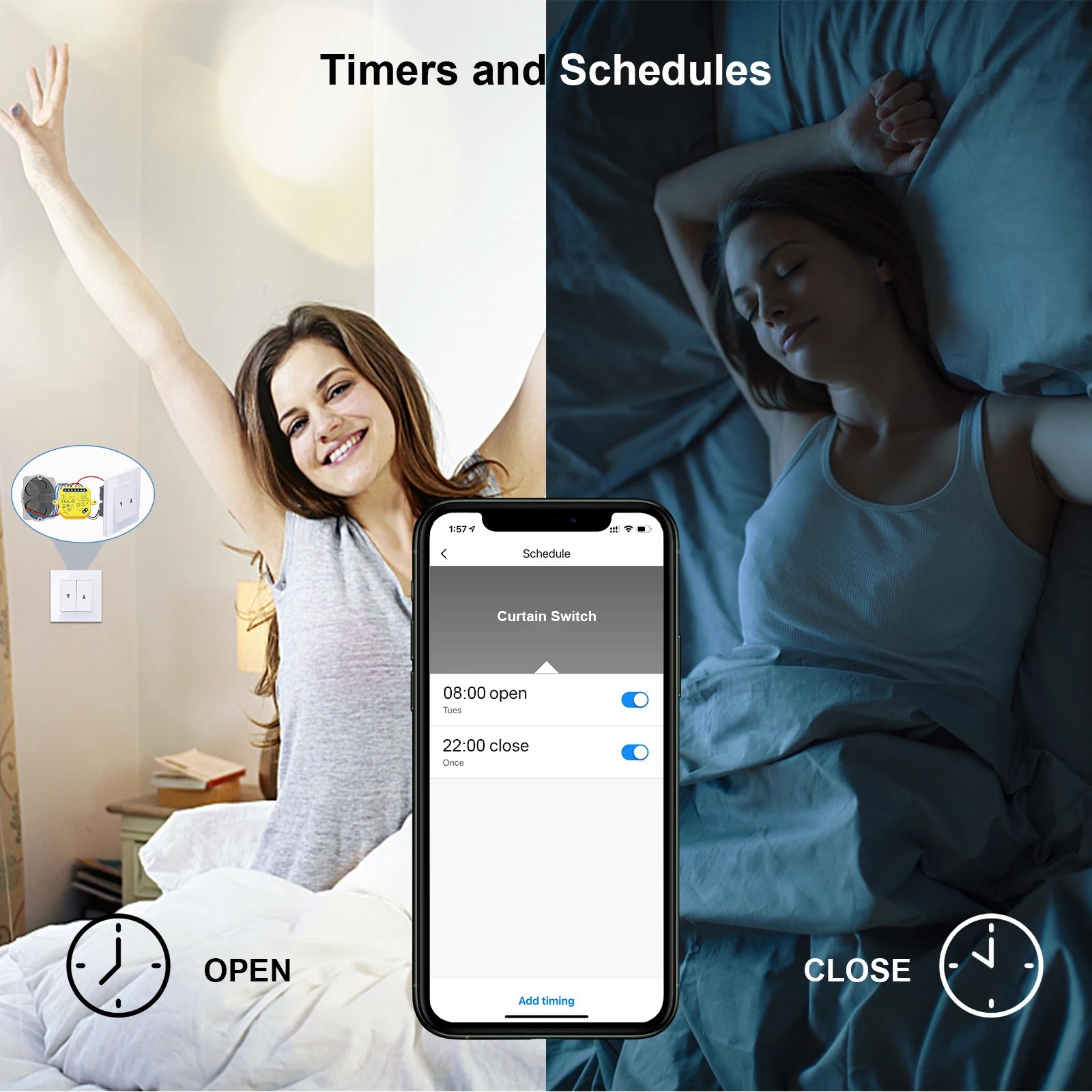

Timers and Schedules

You can set a timer for your curtains, and the curtains will automatically open or close within a specified time.

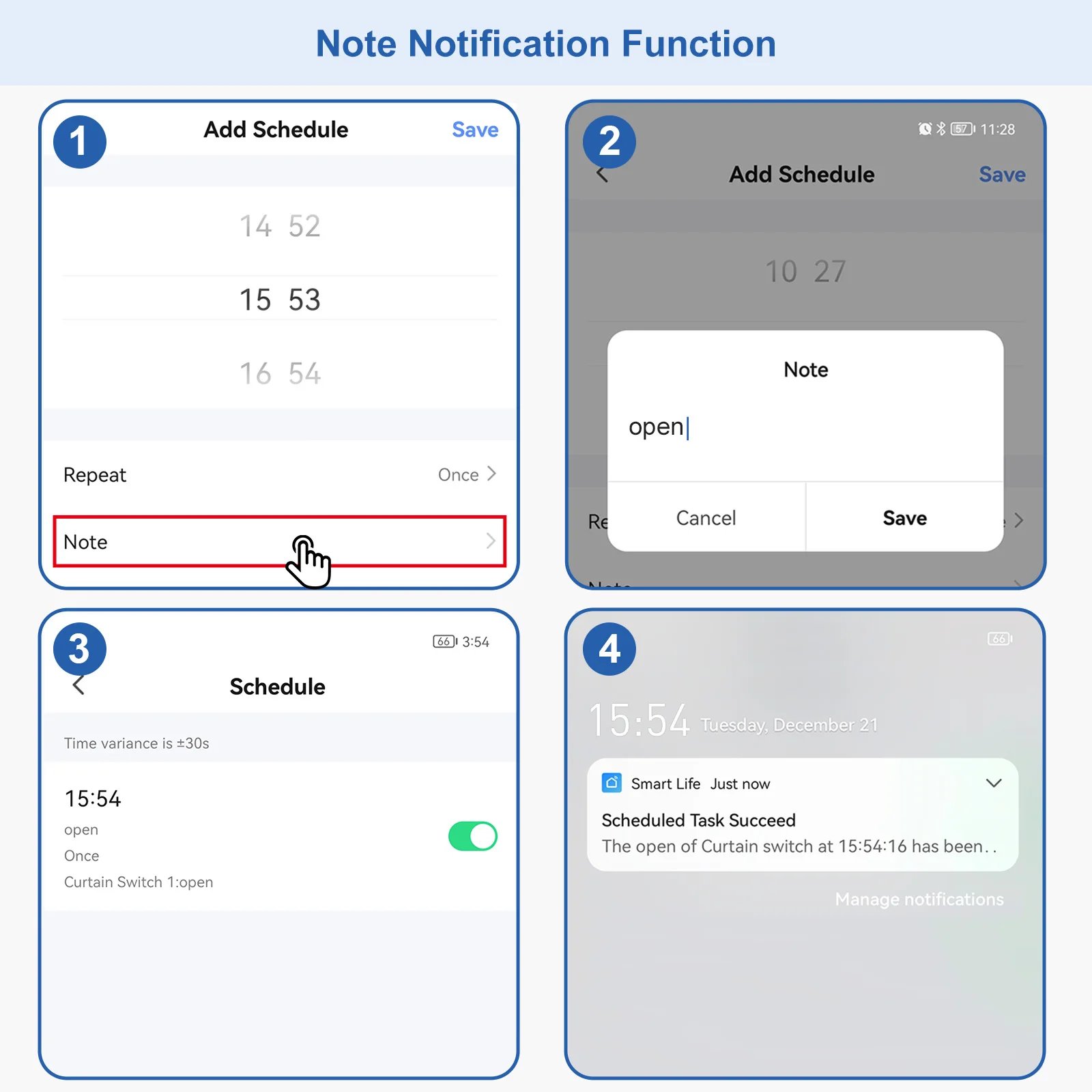

Note Notification Function

You can add notes when creating a timer. When the time is up, the device will automatically work and send a notification to the phone.

Sunrise / Sunset Automation

You can set the sunrise/sunset automation in the smart life app.

Group Function

You can create a group in the app to easily manage all the blinds in your home.

Device Sharing

You can control the same device with family members through the device sharing function.

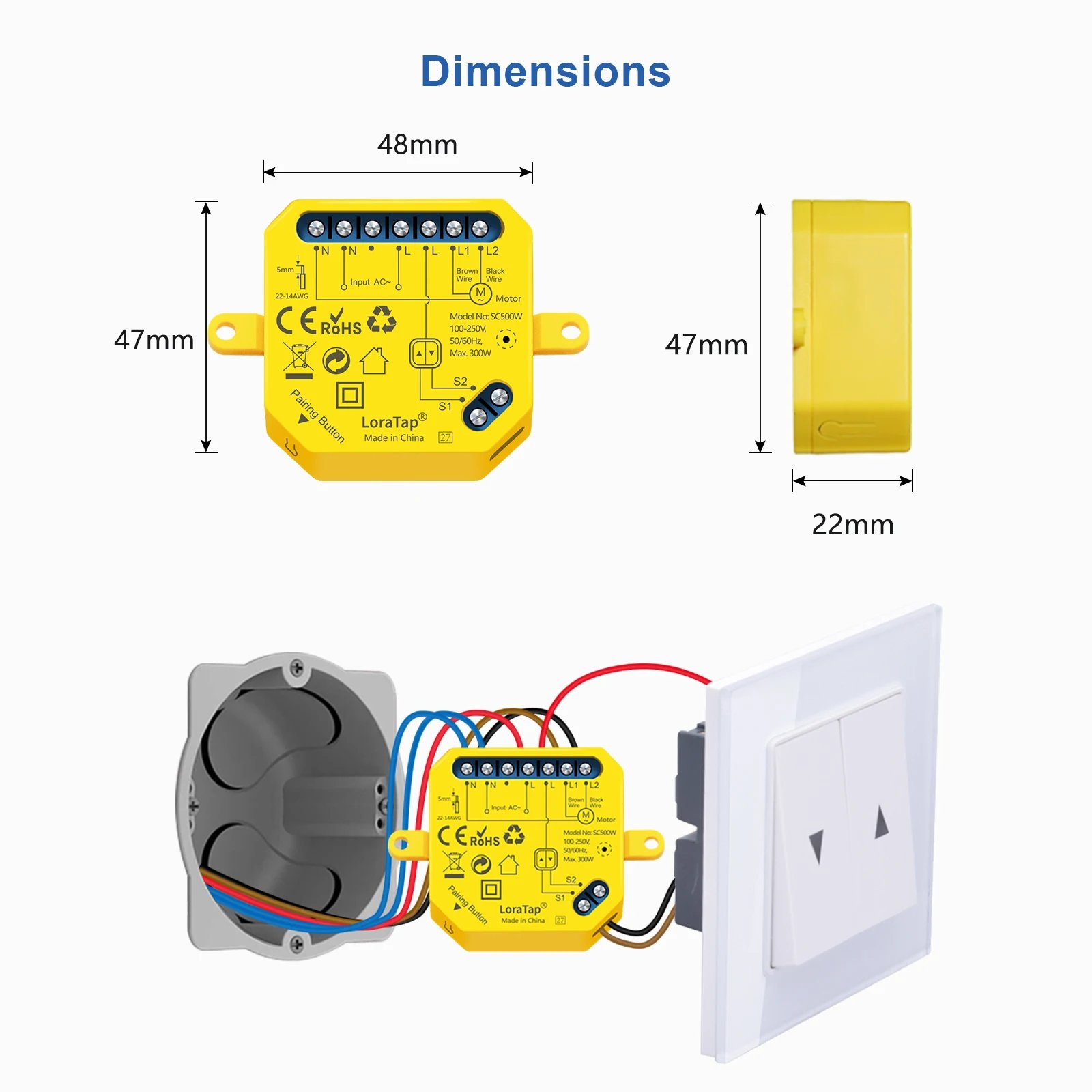

Dimensions

Module size: 48mm*47mm*22mm
Tiny size design enable it can fit most junction box.

Wiring Diagram

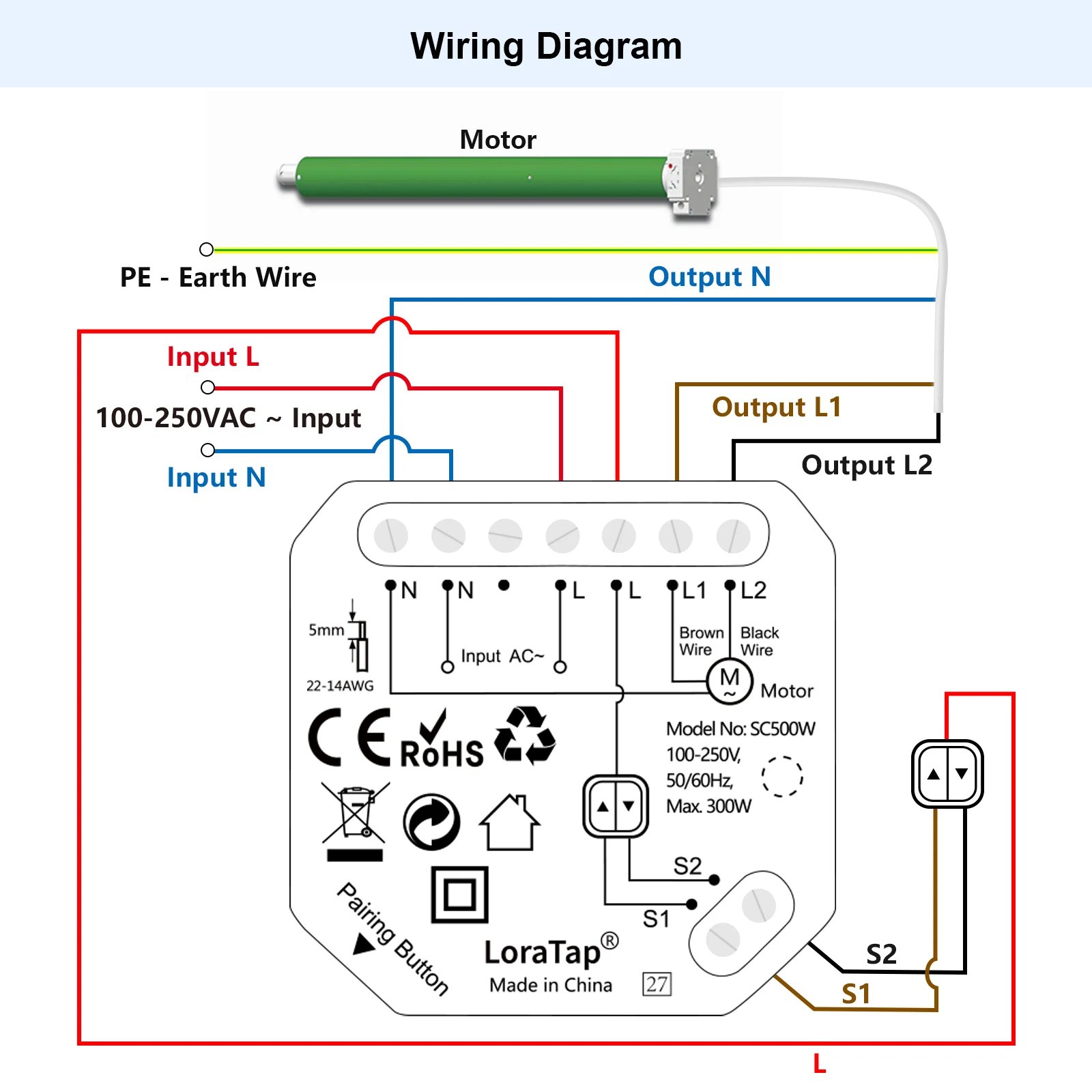

– If you need to connect with your manual switch, please refer to below wiring diagram.
– If you need any help for how to connect the module, please be free to contact with seller.

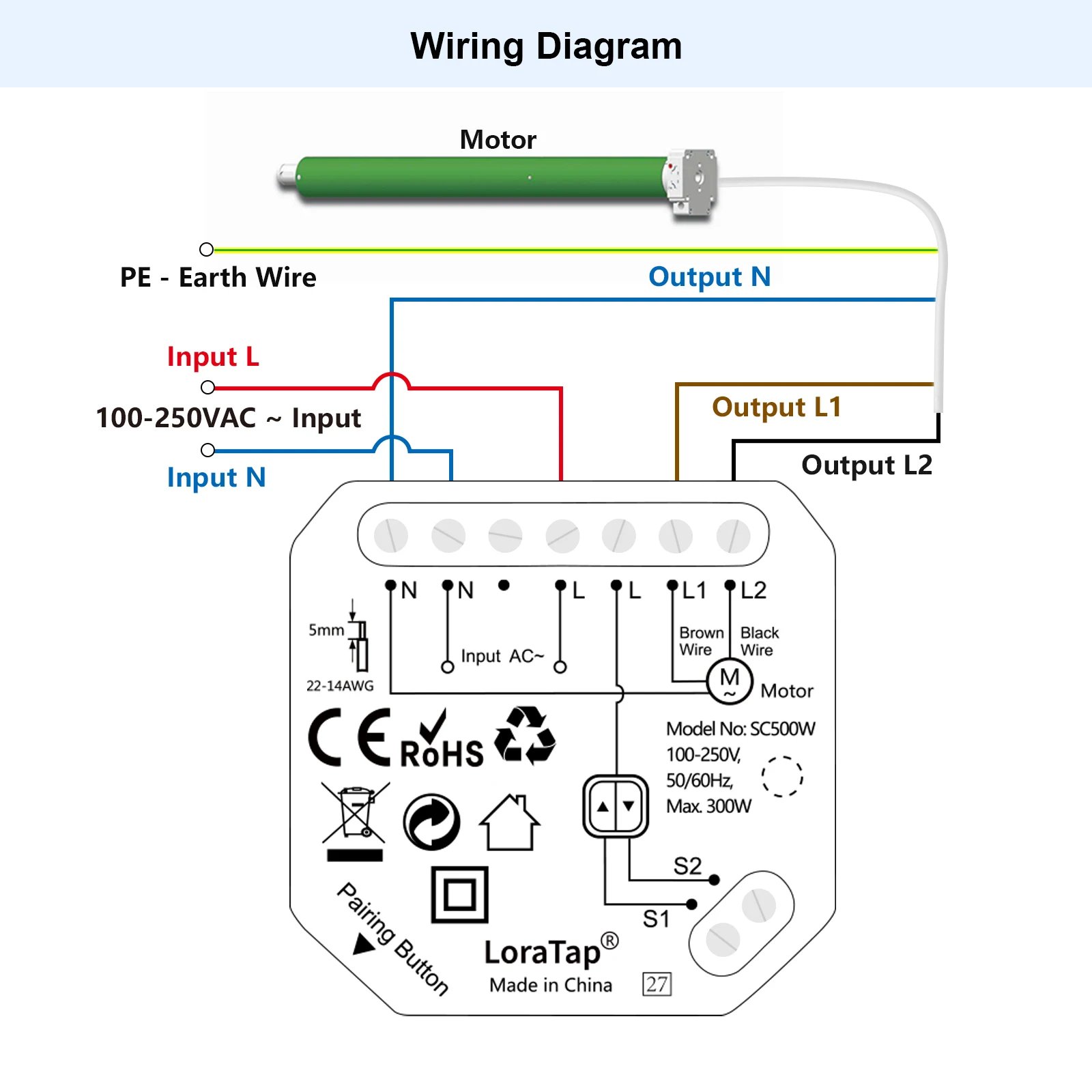

– If you don’t need to connect with your manual switch, please refer to below wiring diagram.

Specification

Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wireless Protocol: 2.4GHz Wi-Fi(not support 5GHz Wi-Fi)
Standby Consumption: below 0.5W
APP Name: Smart Life or Tuya
Voice Control: Google Home, Amazon Alexa
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Patented Product: Yes
Produced by ISO9001 Factory: Yes

We have all the accessories you need in the box, you don’t need to pay extra cost.

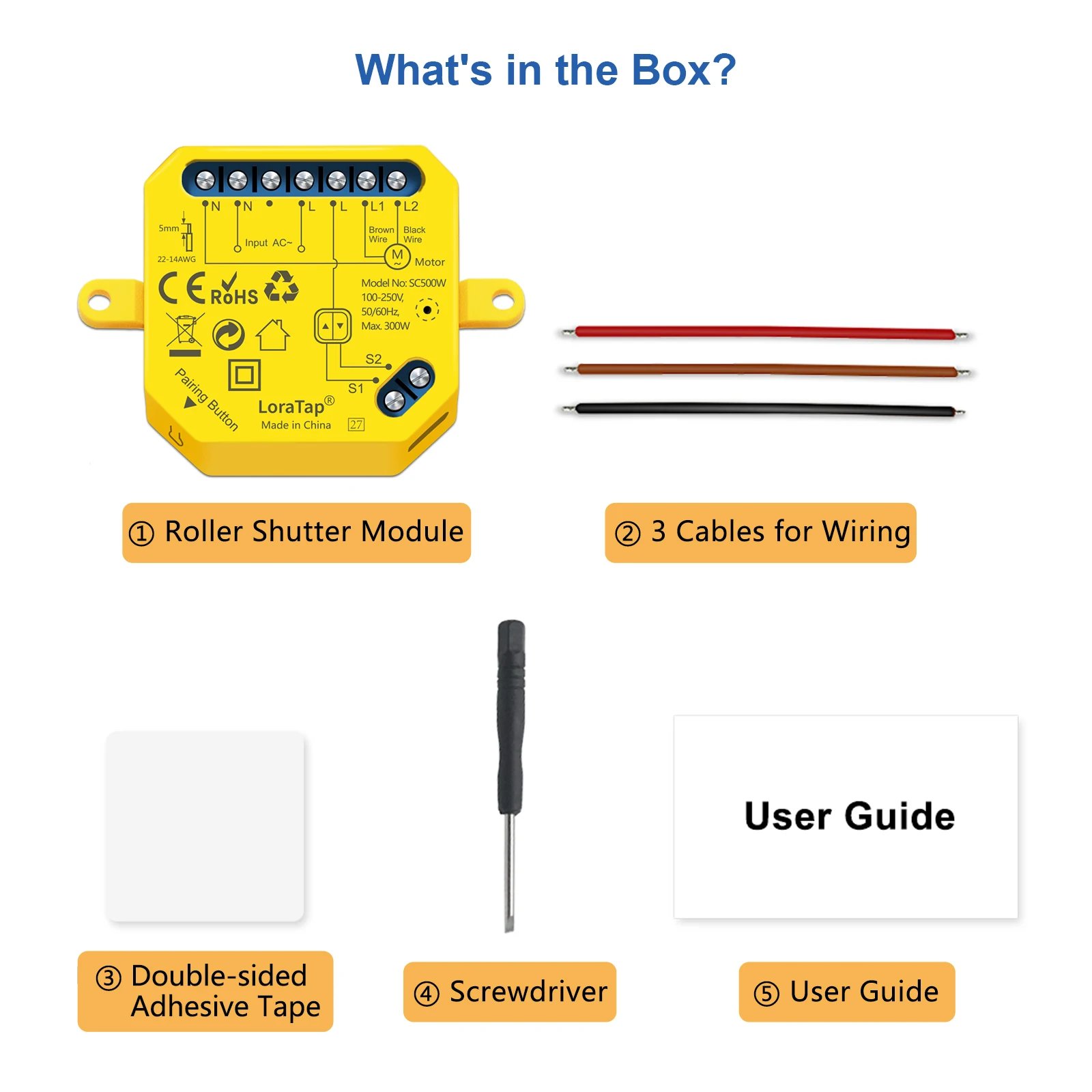

What’s in the Box?

1 * Roller Shutter Module
3 * Cables for Wiring
1 * Double-sided Adhesive Tape
1 * Screwdriver
1 * User Guide

This is a WiFi Only Product. It can’t work with any RF remote in our store.

Please don’t buy any extra RF remote in our store to work with this WiFi only curtain switch.
