INSOMA Automatic Water Timer Intelligent Irrigation Watering System LCD Display IPX5 Sprinkler Timer Garden Programmer Equipment

• Easy to Program: Rotate the dial and press the buttons to set clock, how often (watering frequency), how long (watering duration), start time, auto, and off. Watering Frequency from 1Min to 23h59Min or 1 to 7 days, each Watering Duration is 1min-23h59min.

• 3 Watering Modes: The outdoor sprinkler timer has 3 watering modes to meet your different watering plans. Under Auto mode, the hose timer will run as the schedule you set before. With Manual mode, you can use faucet to do other things from 1min to 23hours59 mins without interrupting your schedule. In rainy day, the rain delay setting helps you pause your schedule 1-7 days and will be automatically resumed.

• Bigger LCD Display & Child Lock: Larger screen makes you check readouts much easier. Child Lock mode keep the garden hose timer safe from kids and pets activities, avoiding mistaken operation. Powered by 2*AA 1.5V Alkaline batteries (not included) and can be run for over 6 months.

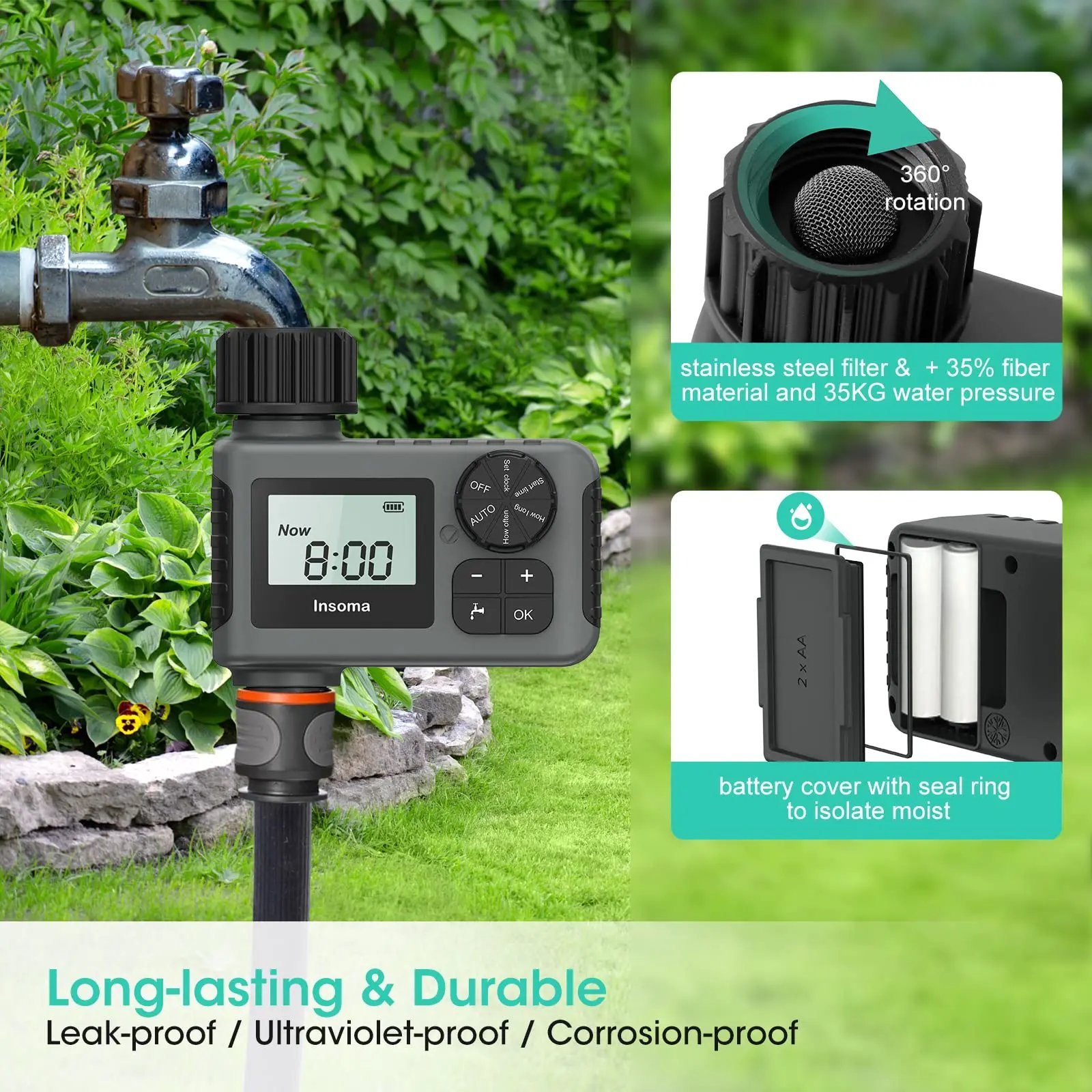

• Long-lasting & Durable: Insoma water hose timer is made of IP55 waterproof material and added a seal ring in the battery cover to isolate moisture. The material of hose timer’s connector is added 35% fiber, which can withstand high water pressure from 7.25 psi to 116 psi. Each sprinkler timer is equipped with an additional reducing hex bushing (3/4″ Male NPT to 1/2″ Female NPT) , a 3/4 inch GHT male thread and thread seal tape to fit different size hoses or faucets to prevent it from leakage.

• Multi-Scene Use: With waterproof and leak-proof function, the garden irrigation system timer is deal for outdoor gravity drip irrigation system, garden irrigation watering, lawn sprinkler controller, greenhouse mist system, pool, etc.

What’s in package: water timer*1, thread seal tape*1, quick connector*1, manual*1.

Important !

About NPT thread or BSPT thread

Please choose right thread suitable for your country, otherwise the timer can’t connect faucet and hose .

NPT thread is suitable for USA/ Canada/ Mexico only.

BSPT thread is suitable for all other countries except USA/ Canada/ Mexico.

About Water Pressure

All timers on market will reduce a little water pressure, and need at least 0.5bar/7.25psi to launch since the solenoid valve design inside. Normal municipal tap water can meet the requirements, please  make sure it has at least 3 floors height if you use water tank.

Note:

1. For outdoor use only.
2. Clean the filter regularly and replace if it’s worm in order to extend the working life of timer.
3. In winter, please remove batteries, drain and store it indoor to away from freezing.
4. Do not install the timer with tools. Hand tighten Only. Use of tools may damage the timer.
5. Do not subject the product to extreme force and shock.
6. To prevent leakage, make sure that the water timer is tightly attached to the faucet and hose, add rubber washer and thread seal tape of necessary.

• The INSOMA brand focuses on creating high-quality garden irrigation products. the garden irrigation system timer is deal for outdoor gravity drip irrigation system, garden irrigation watering, lawn sprinkler controller, greenhouse mist system, pool, etc.

• 2 Modes of auto watering frequency, Day and Hour setting make your scheduls more precise.

• Auto mode, the hose timer will run as the schedule you set before, no need to worry about watering plants when you go out the town.

• With Manual mode, you can use faucet to do other things from 1min to 23hours59 mins without interrupting your schedule.

• In rainy day, the rain delay setting helps you pause your schedule 1-7 days and will be automatically resumed, saving water and bills.

• Child Lock mode keep the garden hose timer safe from kids and pets activities, avoiding mistaken operation.

• The material of hose timer’s connector is added 35% fiber, which can withstand high water pressure from 7.25 psi to 116 psi. Each sprinkler timer is equipped with an additional reducing hex bushing (3/4″ Male NPT to 1/2″ Female NPT) , a 3/4 inch GHT male thread and thread seal tape to fit different size hoses or faucets to prevent it from leakage.

• Insoma water hose timer is made of IP55 waterproof material and added a seal ring in the battery cover to isolate moisture.

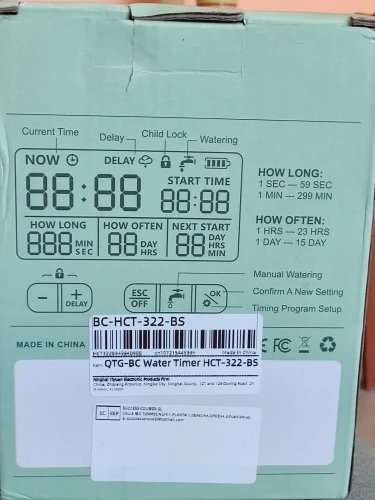

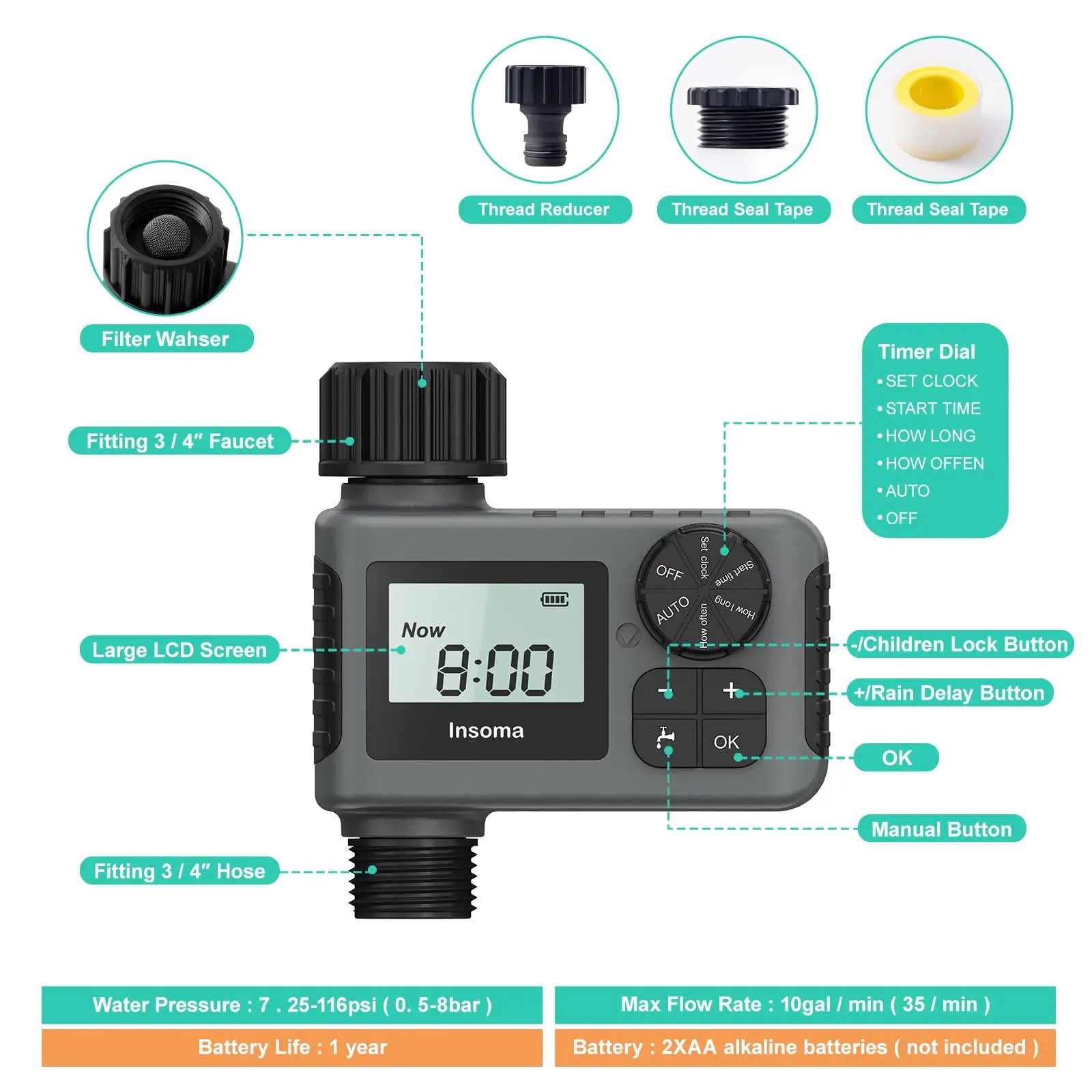

Button Instruction:

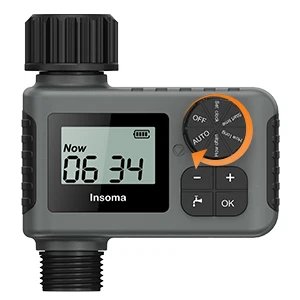

Turn dial to Set Clock, Start Time, How Long, How Often, Auto, Off

Press faucet button to enter manual mode when turn dial to Auto

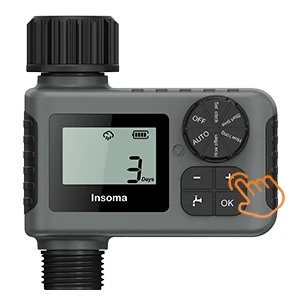

Adjust time, long press + button to set Rain Delay mode

Adjust time, long press – button to set Children Lock mode

FAQ

Q1: The LCD screen doesn’t display anything when the batteries are installed.

A1: Two batteries loaded are new 1.5V AA alkaline batteries, make the batteries are properly placed          in the battery box.

Q2: Water doesn’t come on at preset time.

A2: ① clock should be set to the correct time.

      ② start time is set to desired the time.

      ③ rain delay is on.

      ④ off mode is on.

      ⑤ the batteries are low.

      ⑥ the faucet is turned off.

Q3: The hose tap connection/outlet leaks.

A3: ① the O-ring is connected correctly to the hose tap.

      ② the connection outlet or water pipe is broken.

      ③ the faucet and water pipe has a different thread. If necessary, please use appropriate adapter           or PTFE tape.
