Product Details

Dear customer, due to product upgrade,

the size and weight of the product you receive may be different.

Model:FFSP-80M

Material:Monocrystalline silicon

Maximum Power(Pmax): 80W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):4.44A

Open-Circuit Voltage (Voc): 20.5V

Short-Circuit Current (Isc):4.69A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:22x20x0.47(in)/54x50x1.2(cm)

Expansion Dimension:40x22x0.24(in)/100x54x0.6(cm)

Net Weight:2.4kg

Package Weight:3.1kg

Package Size:63x61x6cm

Package List:

1*80W Flexible Foldble Solar Panel

1*3M wire

1*10A 12Vcontroller

1*DC cable and connector

Model:FFSP-110M

Material:Monocrystalline silicon

Maximum Power(Pmax):100W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):6.1A

Open-Circuit Voltage (Voc):22.5V

Short-Circuit Current (Isc):6.35A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:28×20.5×0.47(in)/70x50x1.2(cm)

Expansion Dimension:40x28x0.24(in)/100x70x0.6(cm)

Net Weight: 2.7 kg

Package Weight:3.6kg

Package Size:75x58x7cm

Package List:

1*100W Flexible Foldble Solar Panel (50W*2)

1*3M wire,

1*10A 12Vcontroller,

Model:FFSP-160M

Material:Monocrystalline silicon

Maximum Power(Pmax): 160W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):8.89A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):9.14A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:22×20.67×0.94(in)/56×52.5×2.4(cm)

Expansion Dimension:82.7x22x0.24(in)/210x56x0.6(cm)

Net Weight:4.5kg

Package Weight:5.4kg

Package Size:68x56x6cm

Model:FFSP-220M

Material:Monocrystalline silicon

Maximum Power(Pmax): 200W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):11.12A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):11.36A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:28x21x0.9(in)/70x50x2.4(cm)

Expansion Dimension:85x28x0.24(in)/216x72x0.6(cm)

Net Weight:5.3kg

Package Weight:6.3kg

Package Size:80x60x7cm

Package List:

1*200W Flexible Foldble Solar Panel

1*3M wire,1*20A 12Vcontroller,

A total of 4M long cable. With alligator clips.

Cable thickness: 2×1.5 mm²

Model:FFSP-320M

Material:Monocrystalline silicon

Maximum Power(Pmax): 300W±3%

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):16.67A

Open-Circuit Voltage (Voc): 22.50V

Short-Circuit Current (Isc):16.92A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage: DC1000V

Foldable Dimension:39.37×19.69×0.94(in)/100x50x2.4(cm)

Expansion Dimension:78.74×39.37×0.24(in)/200x100x0.6(cm)

Net Weight:7.1kg

Package Weight:8.2kg

Package Size:108x57x7cm

Package List:

1*300W Flexible Foldble Solar Panel

A total of 4M long cable. With alligator clips.

1*20A 12Vcontroller

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

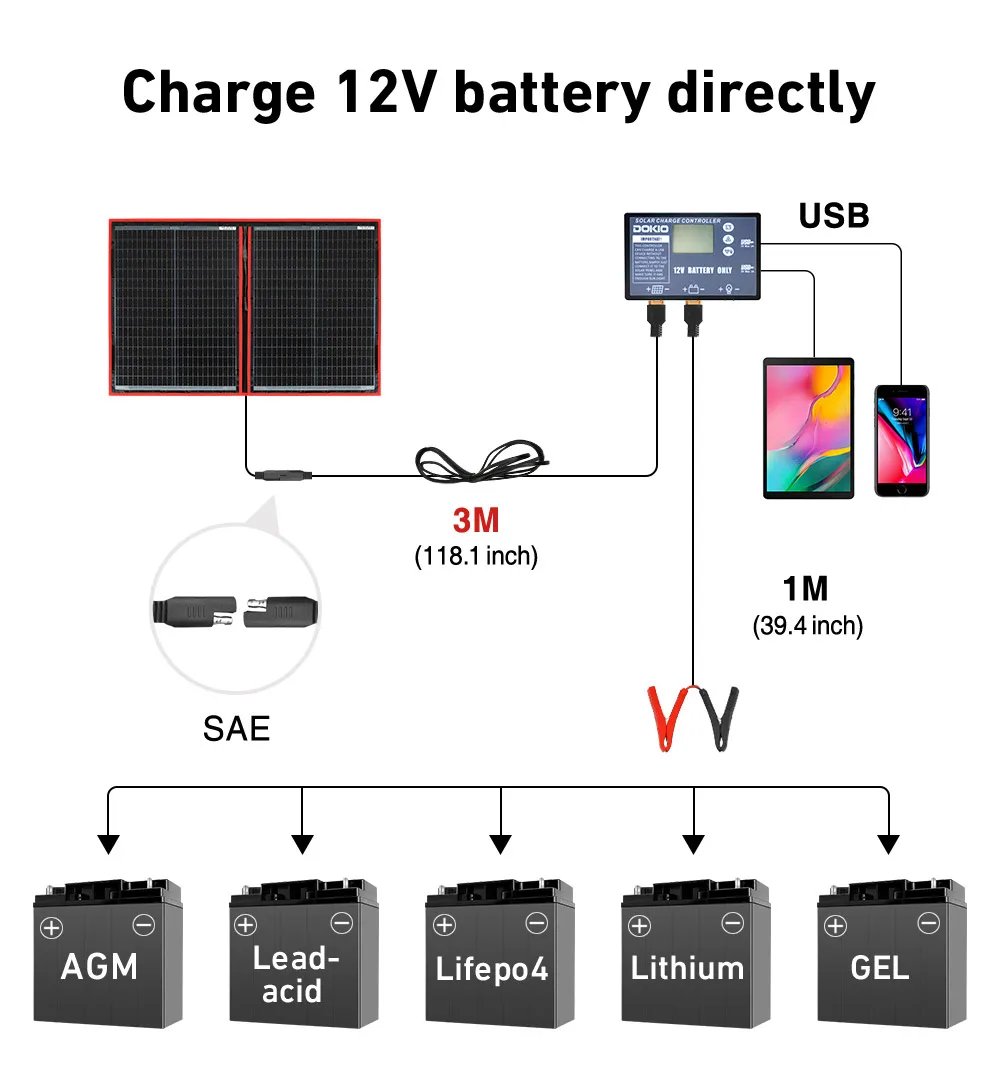

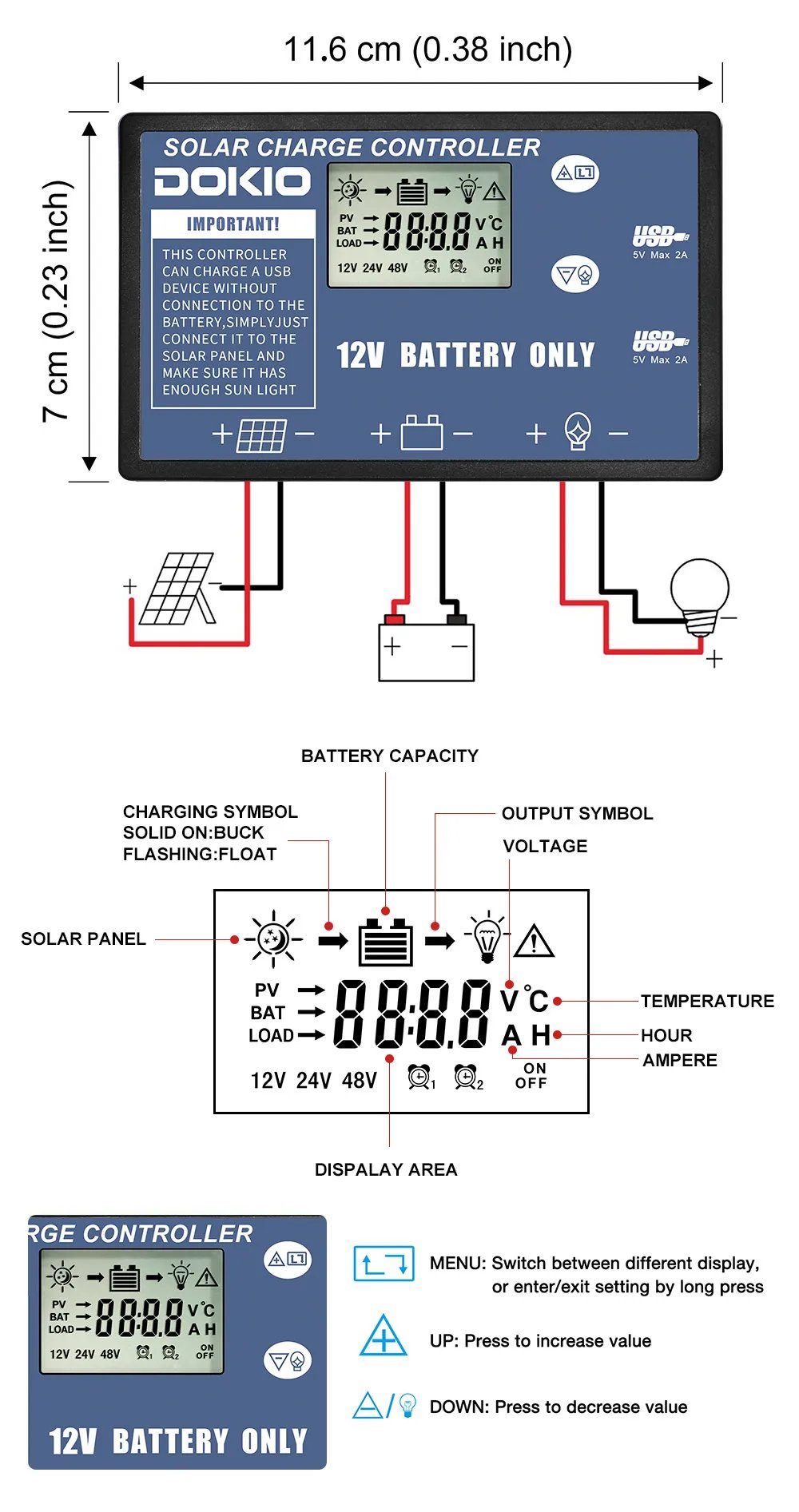

Controller support lead-acid,lithium ions and LiFePO4 battries.
Cable thickness: 2×1.0 mm²
A total of 4M long cable. With alligator clips.

Dokio Ukraine 18V 80W 160W 100W 200W 300W Portable Foldable Solar Panel with 12V Controller to Charge Battery suitable for Camp

Specifications

Origin:

Mainland China

Number of Panels:

Flexible Solar Panel:

Yes

Foldable Solar Panel:

Yes

Type:

Solar Panel

Model Number:

FFSP-100W

Size:

48*66*1.2cm

Material:

Monocrystalline Silicon

Nominal Capacity:

None

Number of Cells:

Max. Power:

100W±3%

is_customized:

Yes

Certification:

Maximum Power(Pmax):

100W±3%

Open-Circuit Voltage (Voc):

20.5V

Maximum Power Voltage(Vmp):

18.00V

Short-Circuit Current (Isc):

6.35A

Maximum Power Current (Imp):

6.1A

Nominal Operating Cell Temp.(NOCT):

-45 to 80℃

Maximum System Voltage:

DC1000V
