Note: CCT-25 and CCT-28 can only connect to water heating ontrollers and normally closed actuators, and the entire system intelligently controls heating but not cooling.
Product Description:
The CCT-25/CCT-28 is Multi Zone Central Heating System Smart Controller 5/8-Channel thermostat controller with Indicators.
This unit is used for the centralized processing of water floor heating or thermostat signals, and transmits instructions to control the open or close of the floor heating electric valve and performs zone control.
At the same time controlling the electric actuator, it can control the passive linkage of the heat pump host, the boiler and the external water pump(mixing center) .
Specifications:
Power supply: 100-240VAC, 50/60Hz 10A
Passive output (Boiler): 8A
Circulating pump output: 250VAC, 8 (5)A
No power linkage: 1 normally open（common terminal）

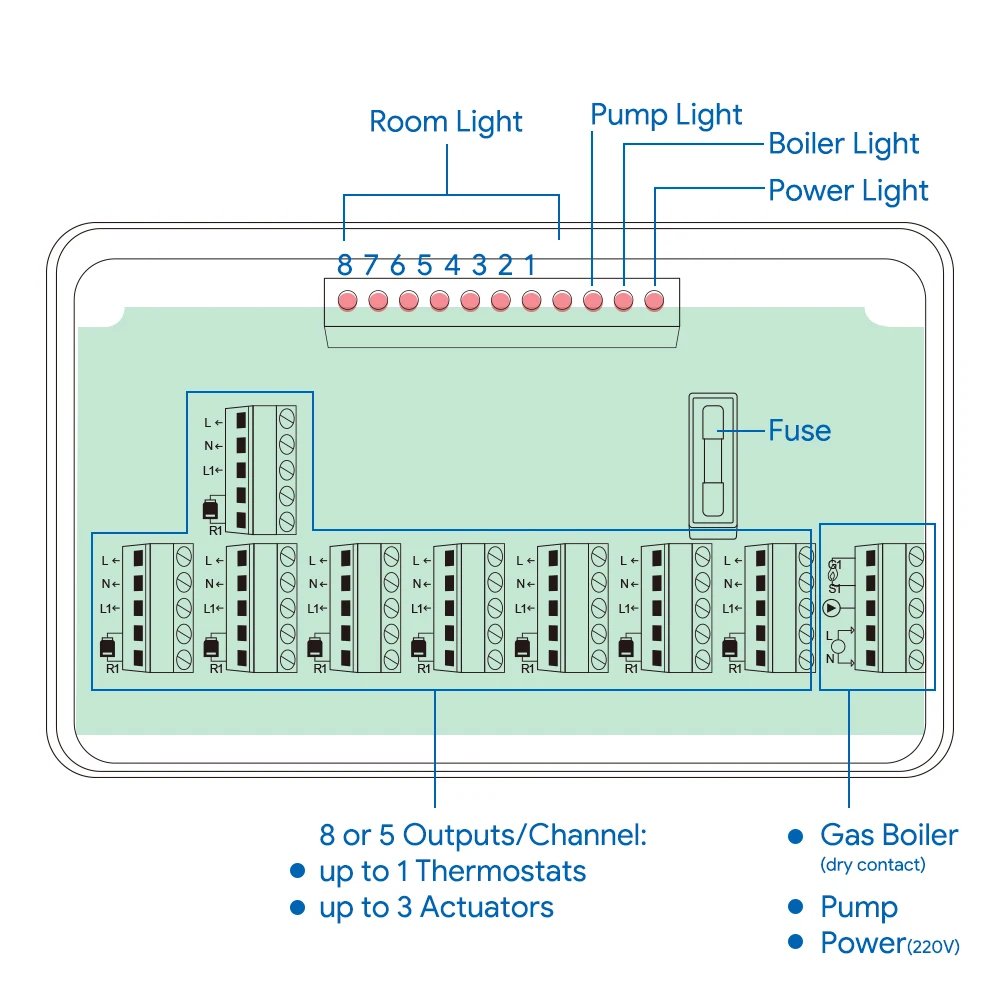

Number of circuits: 8 loops or 5 loops The max number of actuators in a circuit: 3pcs Output delay: 200s

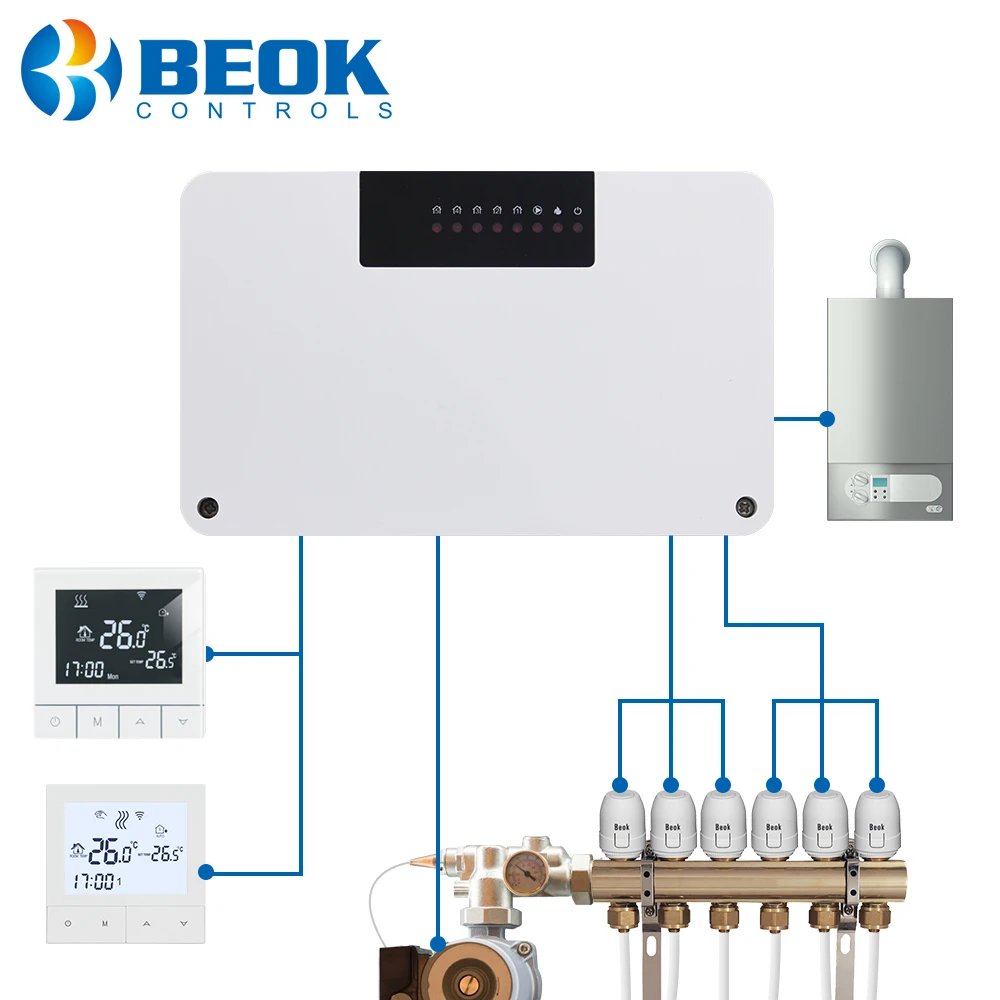

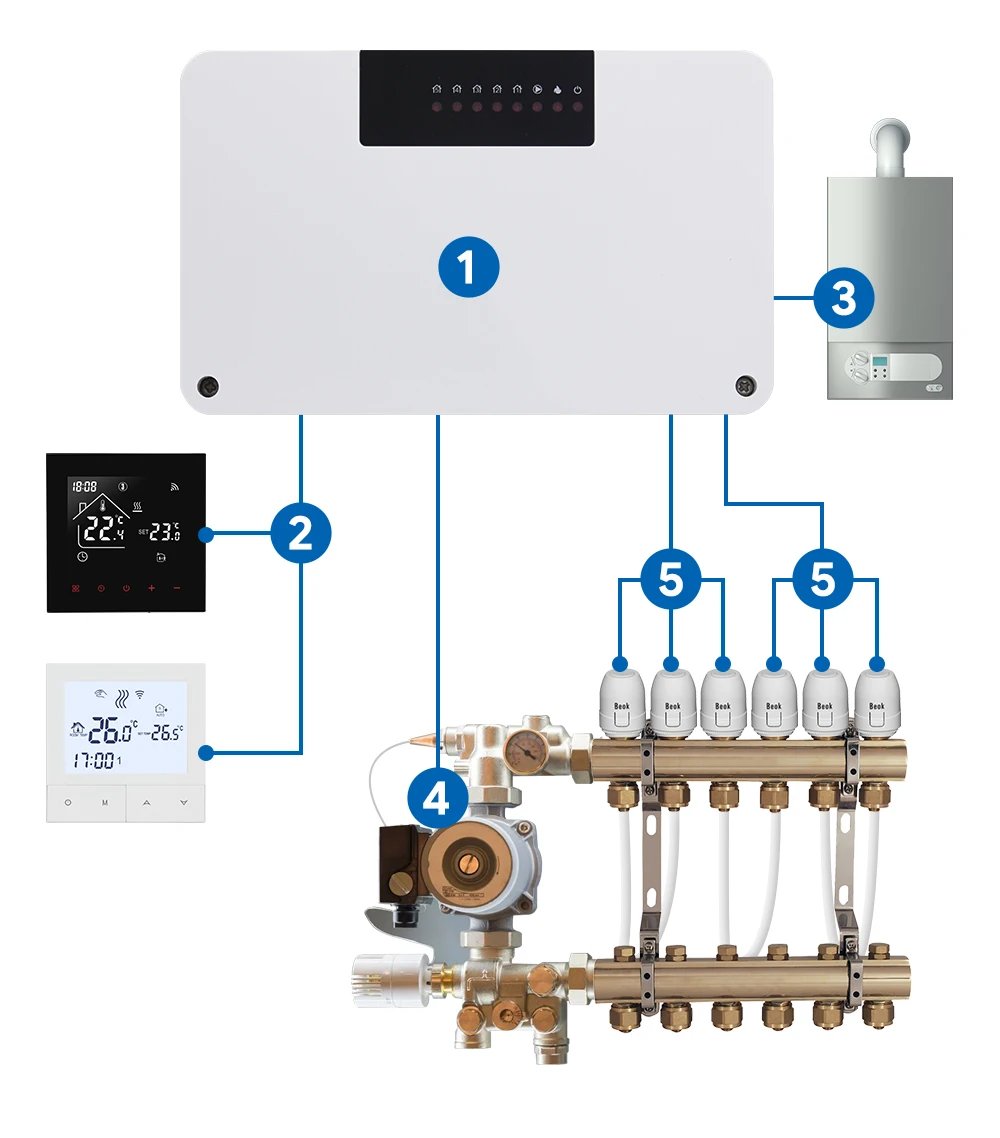

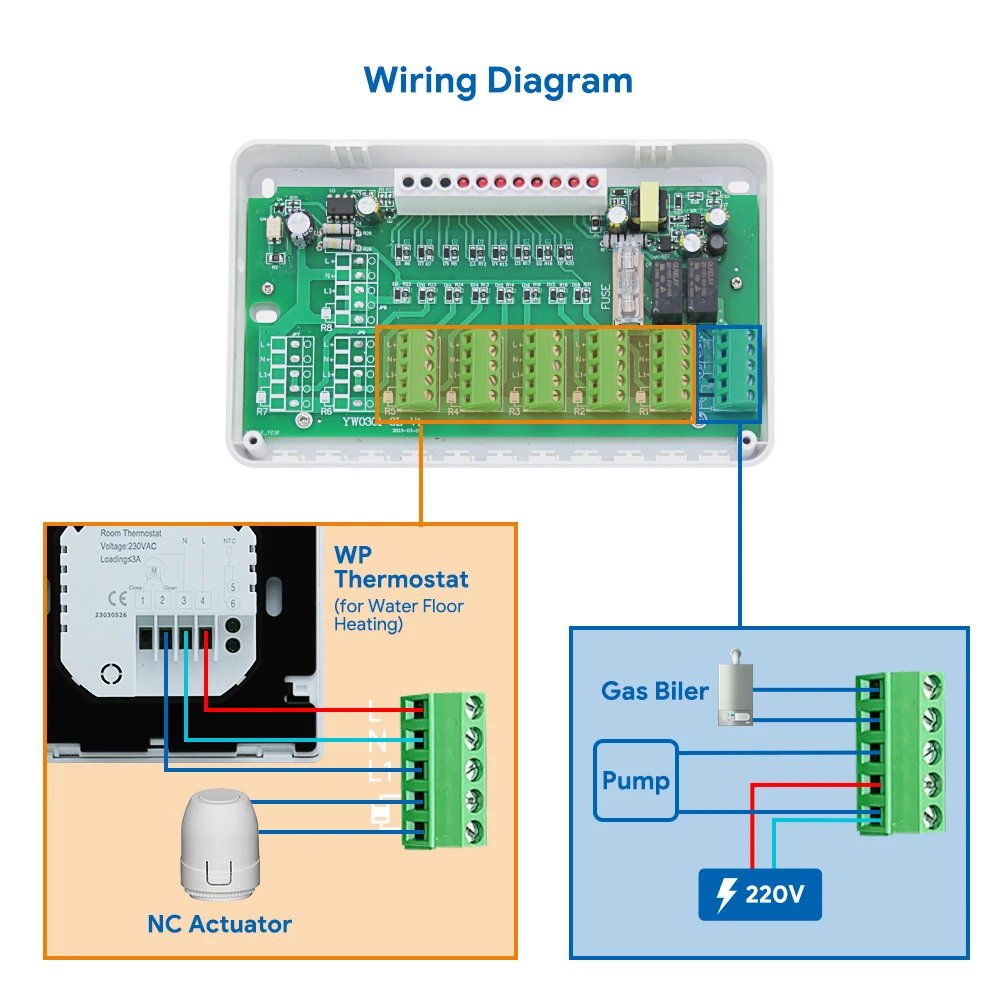

1: Smart Controller 2: Beok Thermostat 3: Gas Boiler 4: Water Pump 5: Electric Actuator

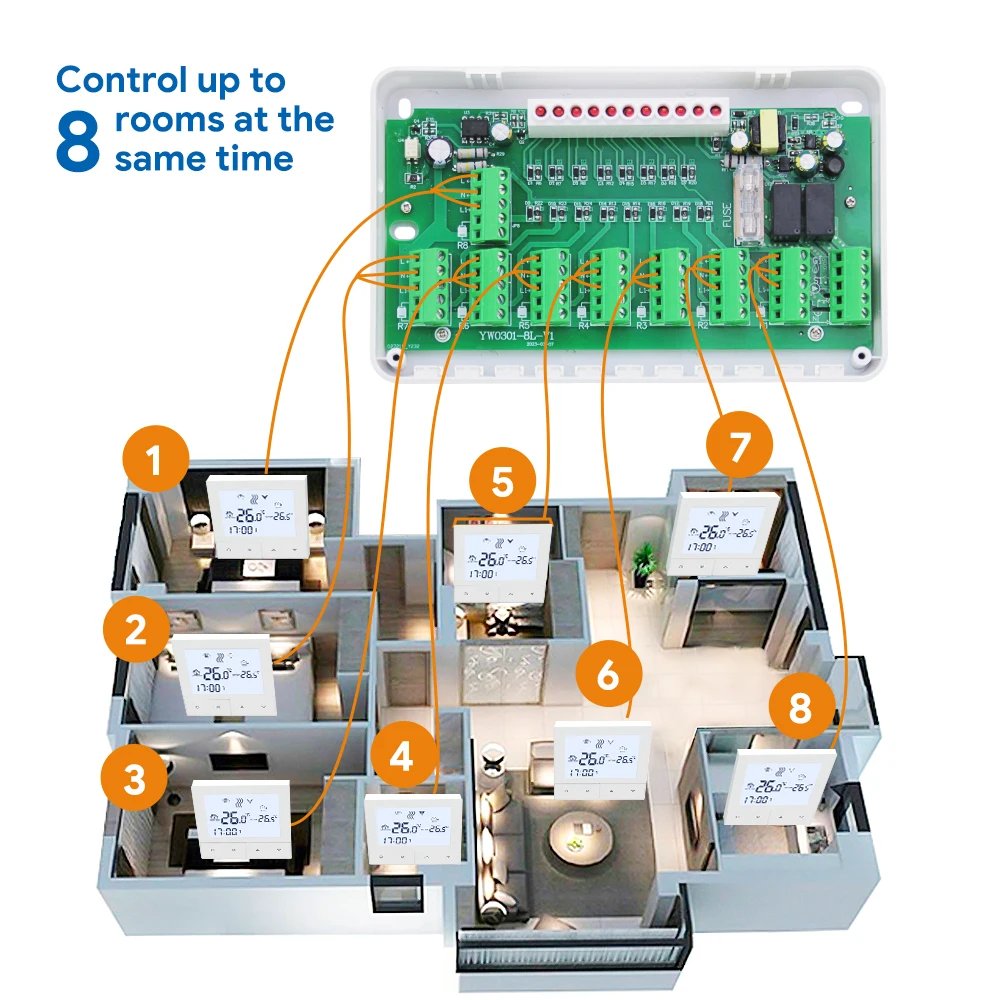

Beok Thermostat Works With Multi Zone Heating Systems. Each zone will need its own thermostat. Up to 8 thermostats can be connected to one CCT-28.

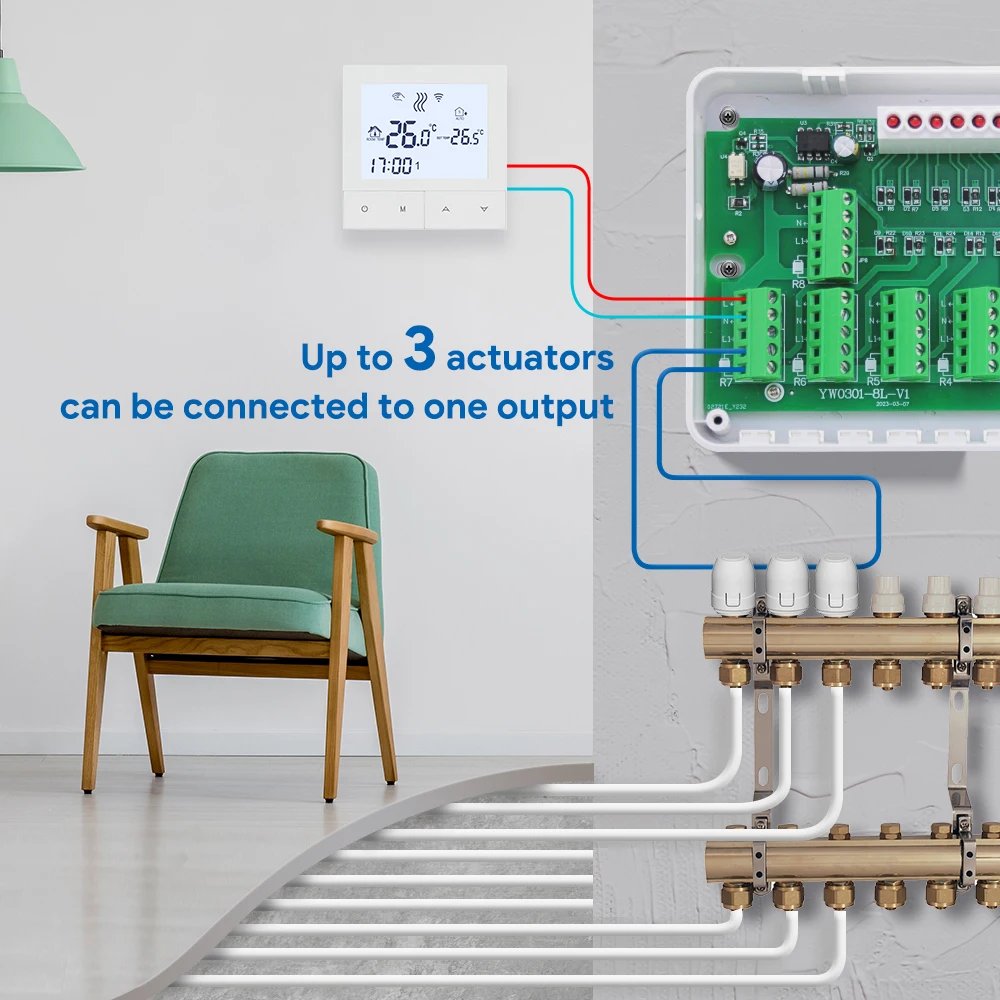

One thermostat corresponds to one zone valve, which is indirectly connected to the actuator. And up to 3 NC actuators can be connected to one zone.
How does Zone Heating work?
In the zone heating system, an actuator opens and closes the valve based on the thermostat setting for that zone.
Each thermostat controls heating independently in order to heat different areas of the house. Zoned systems save energy by allowing homeowners to only heat the part of the home that they need, instead of the whole house.
For example, when one zone needs heating, that zone’s valves open, guiding the hot water to the radiators or in-floor pipes in that area of the home. When all zone valves aren’t calling for heat, the boiler turns off, saving energy.

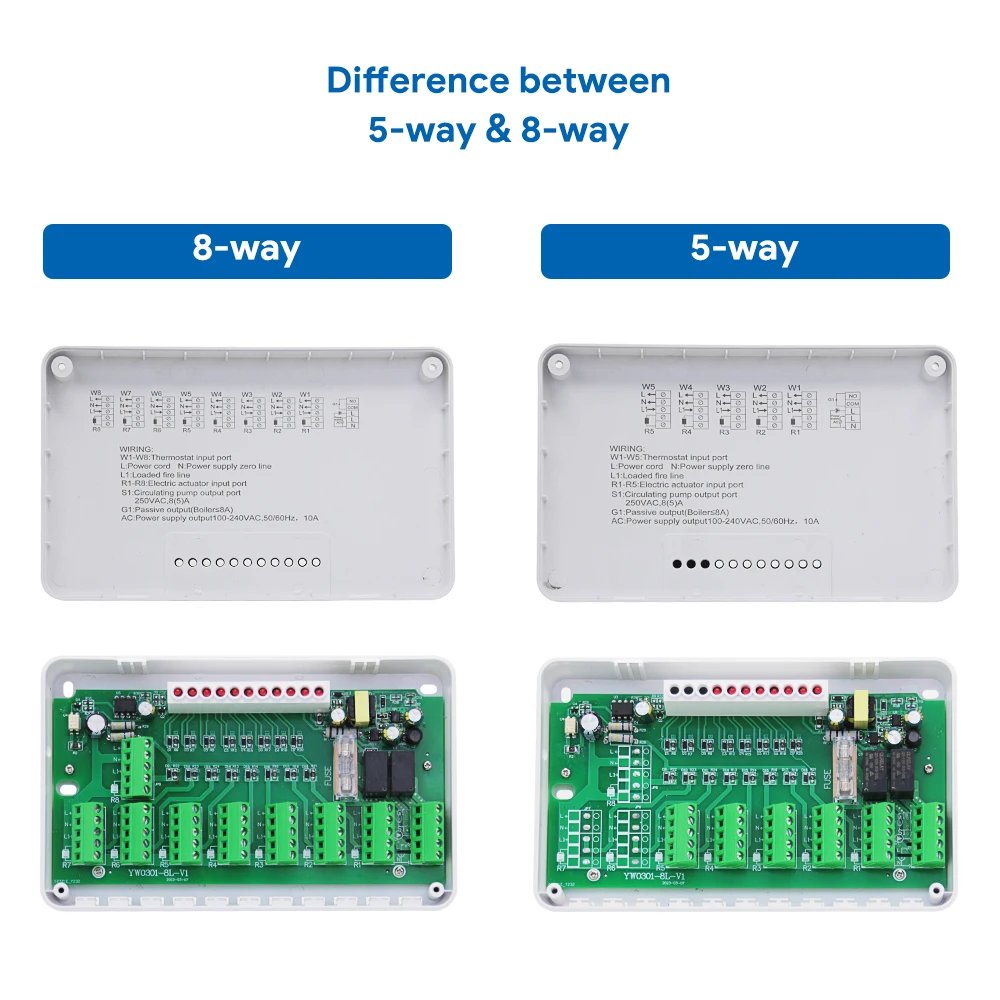

Differences between CCT-25 and CCT-28:
CCT-25: It can connect 5 temperature controllers.One thermostat corresponds to one zone valve,and up to 3 NC actuators can be connected to one zone.
CCT-28: It can connect 8 temperature controllers.One thermostat corresponds to one zone valve,and up to 3 NC actuators can be connected to one zone.

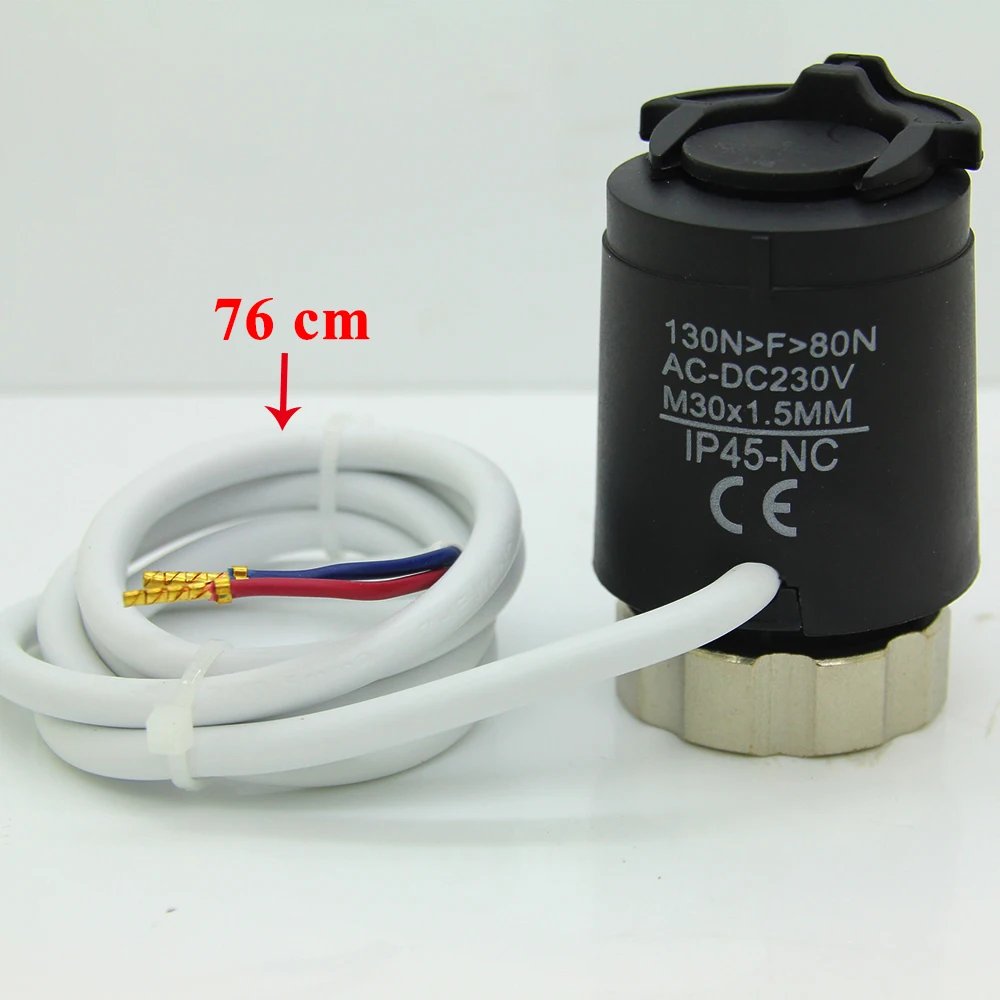

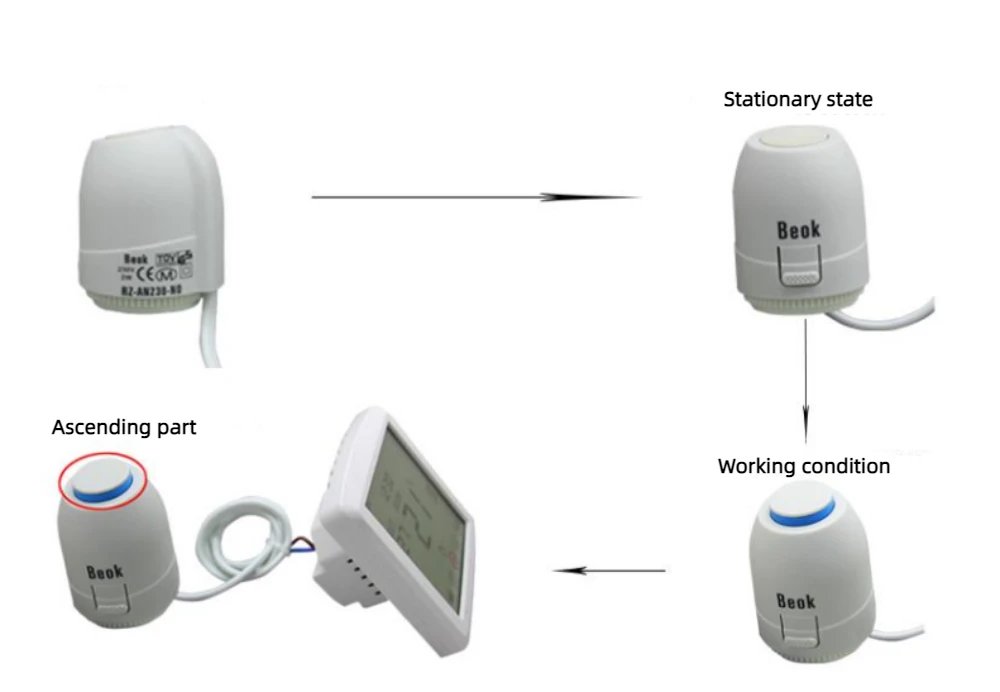

Normally Closed Actuator
When the temperature controller controls heating, the normally closed actuator slowly opens to control water flow. When the indoor temperature reaches the set temperature, the boiler stops heating, and the normally closed actuator slowly closes.

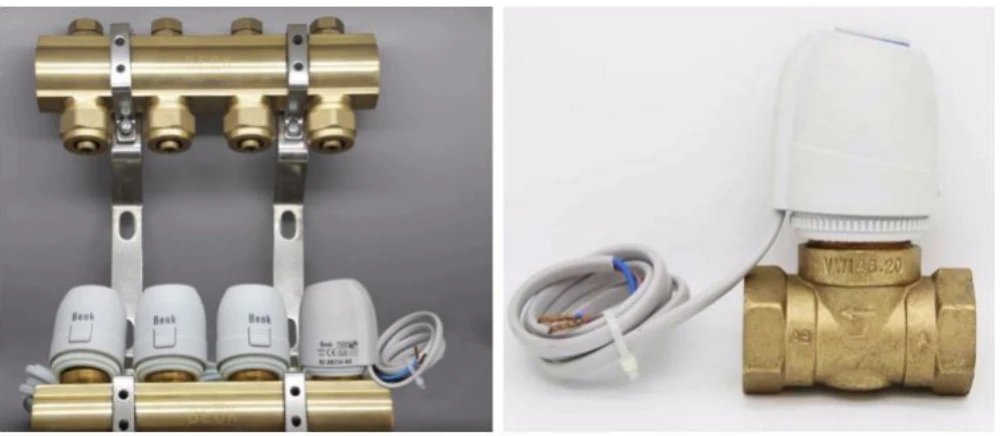

Application: Water Manifold Heating System

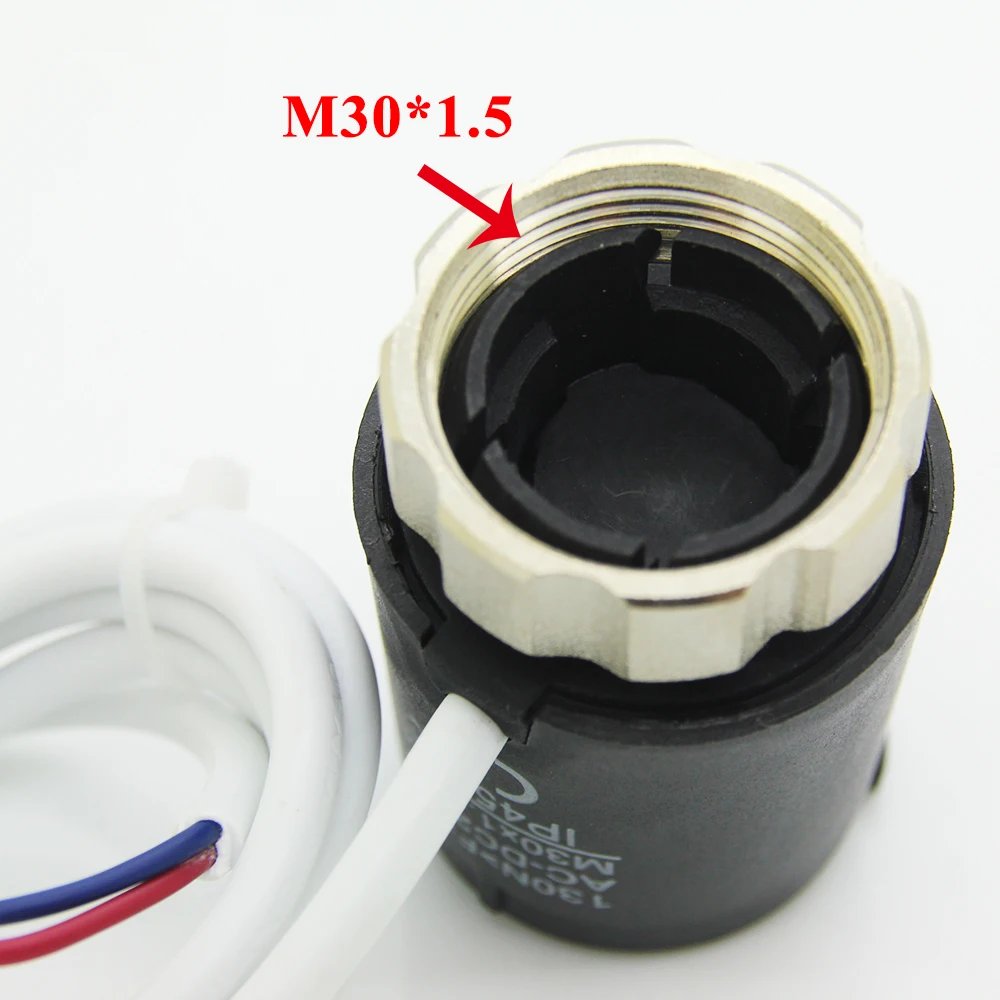

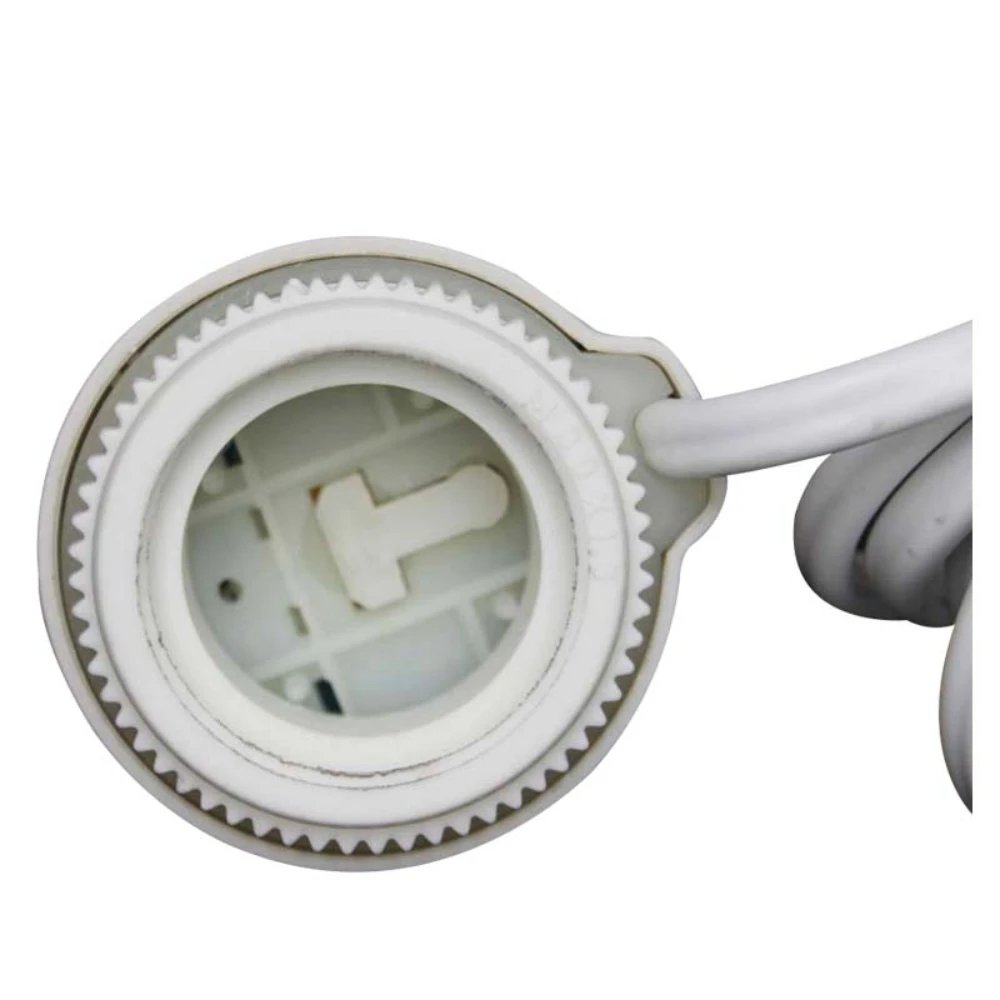

Feature: M30x1.5 connection ring
Power Consumption: 2W

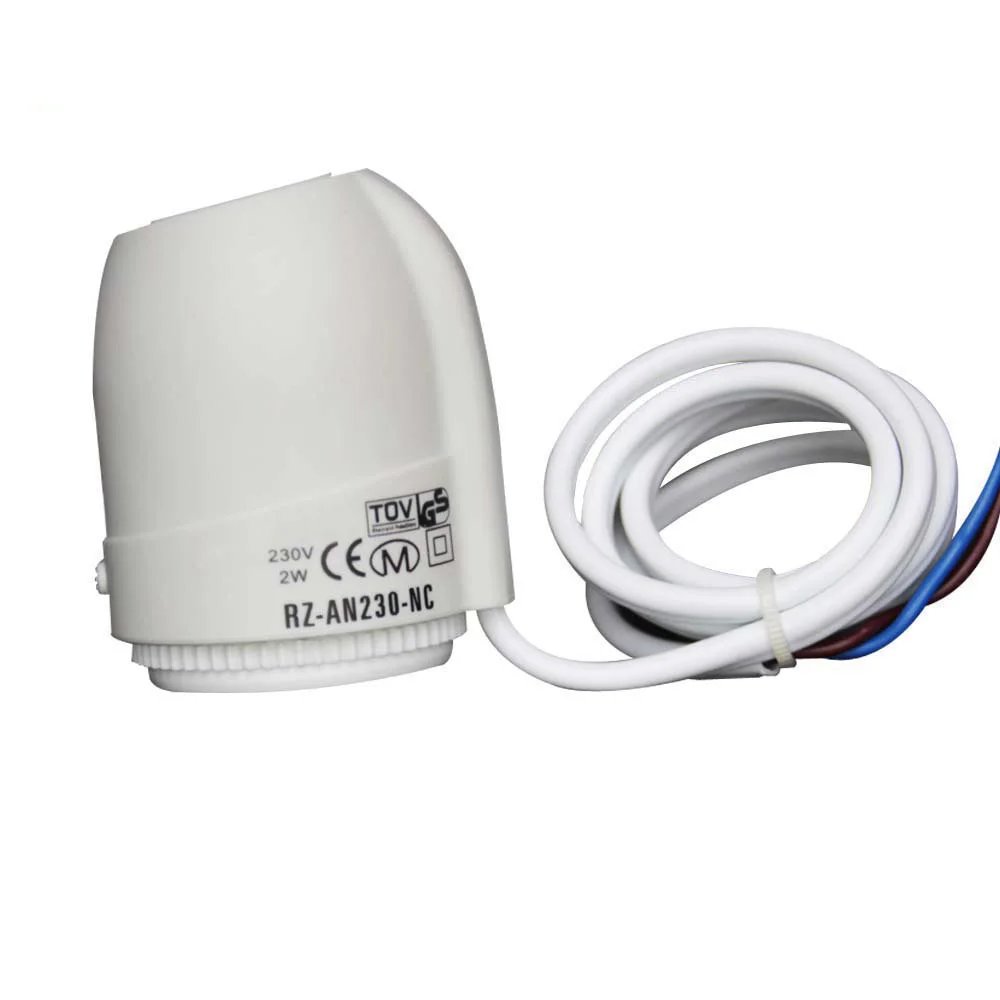

D07 NC Actuator

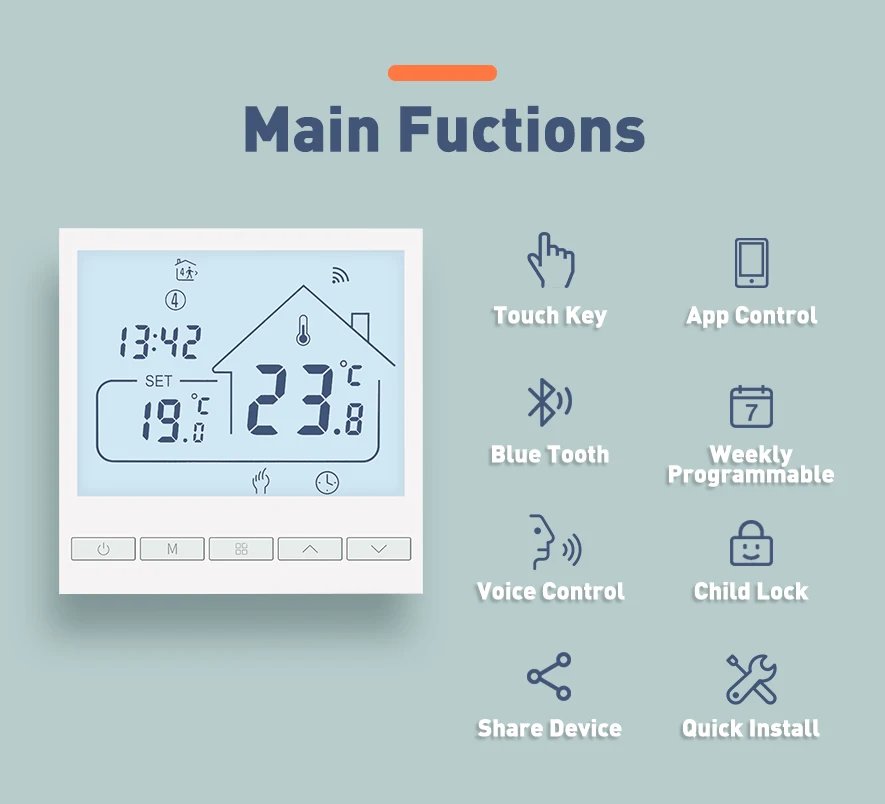

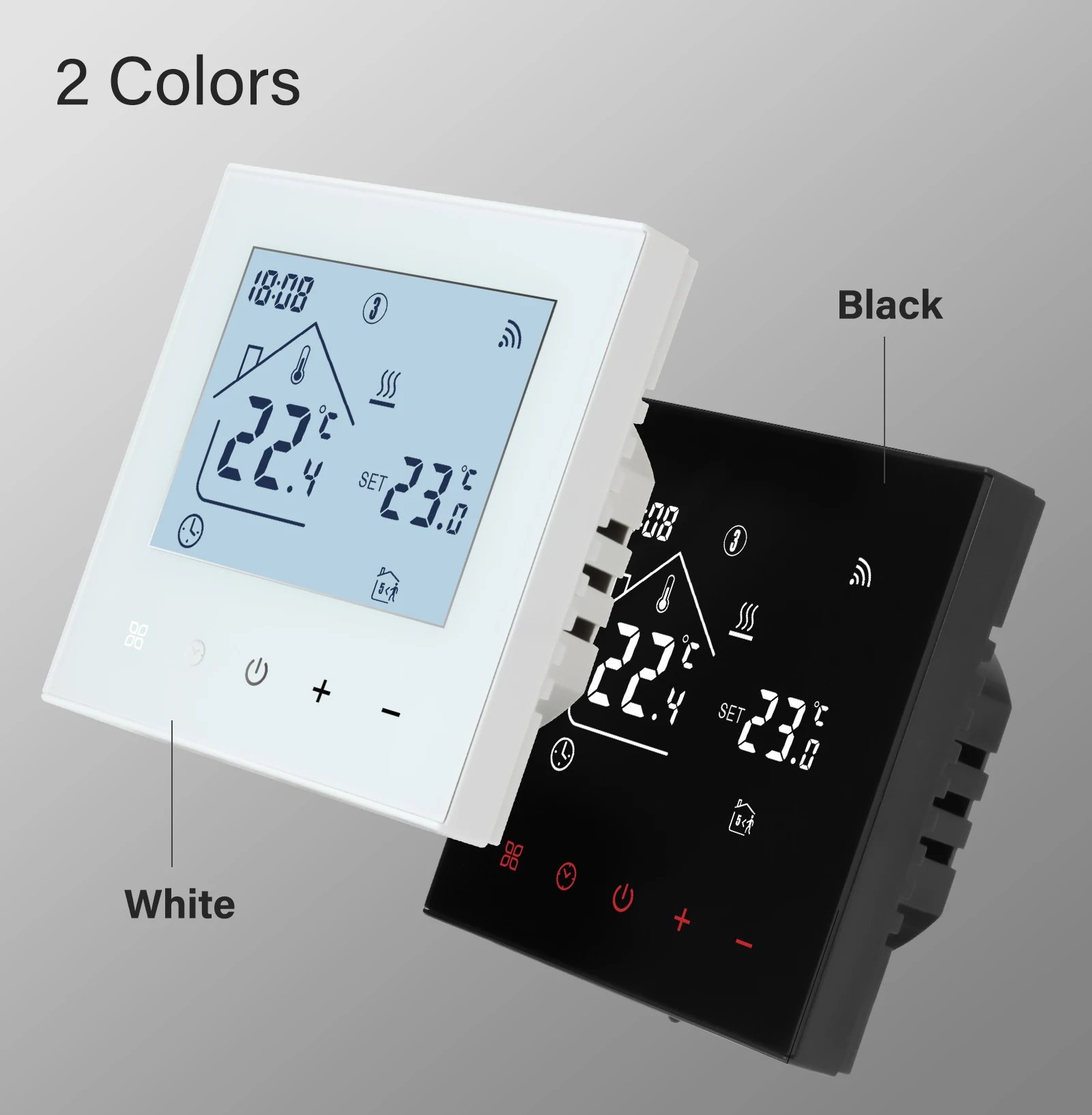

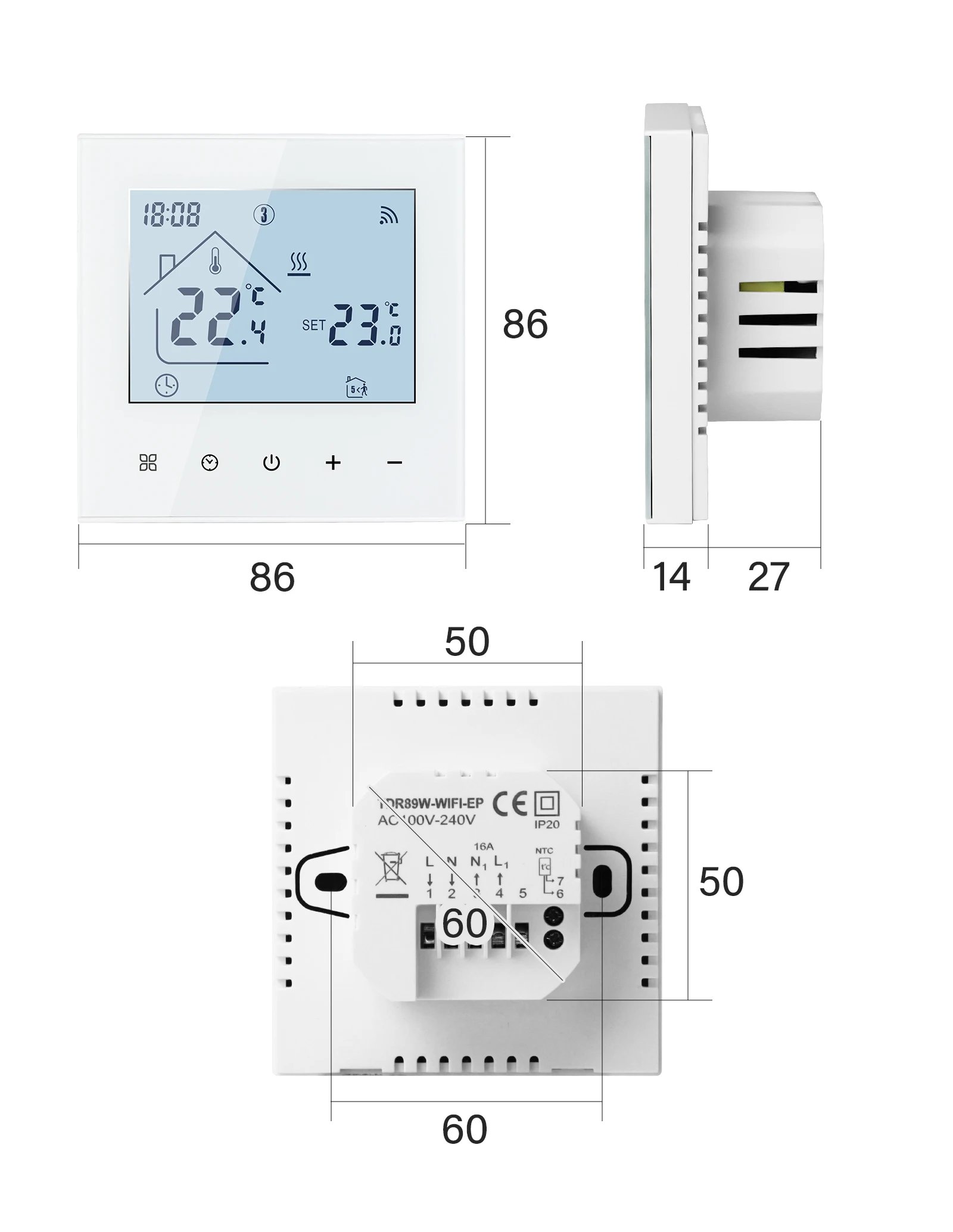

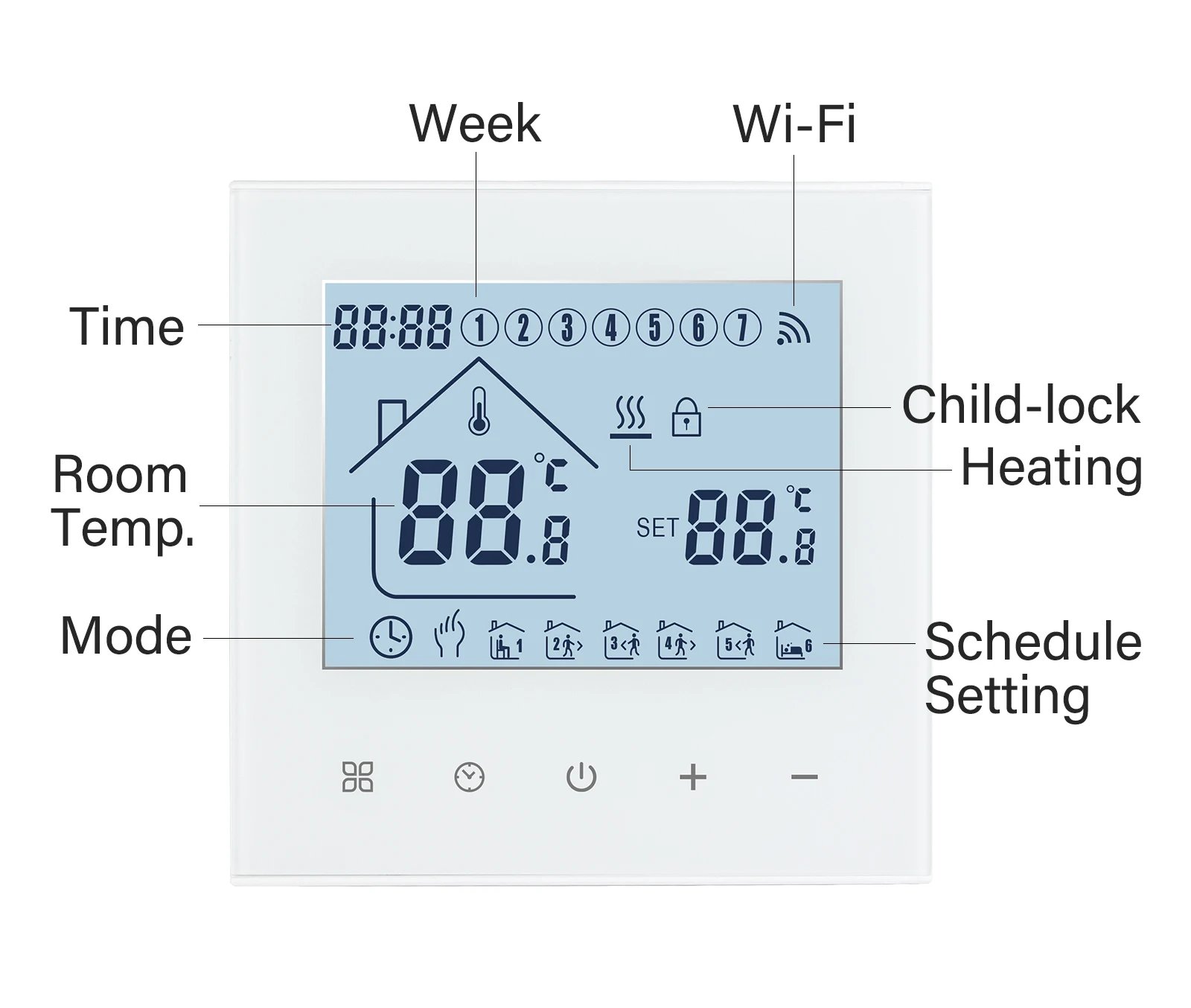

Thermostat’s Feature:
Model: TOL47,TGW60,TDR89 Series

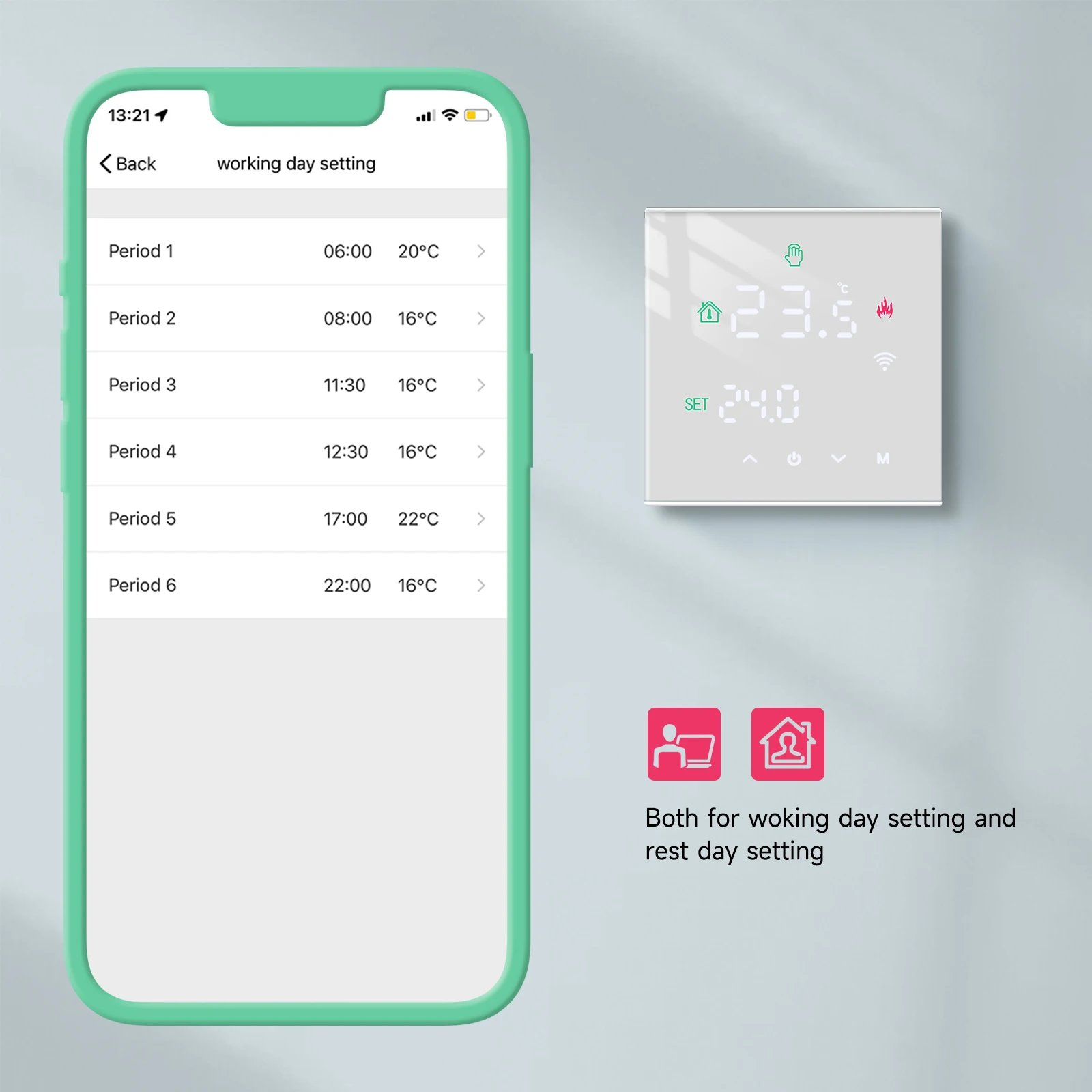

Weely Programmable: Automatic and manual modes can be switched, set customized heating schedules for each day of the week.
App Control: You can also adjust temperature settings easily from anywhere using your smartphone.
Voice Control: wifi thermostat works with Amazon Alexa,Google home, Yandex Alice.
Adjust backlight: On the Smart App, you can set the brightness of the background light according to your reading habits.

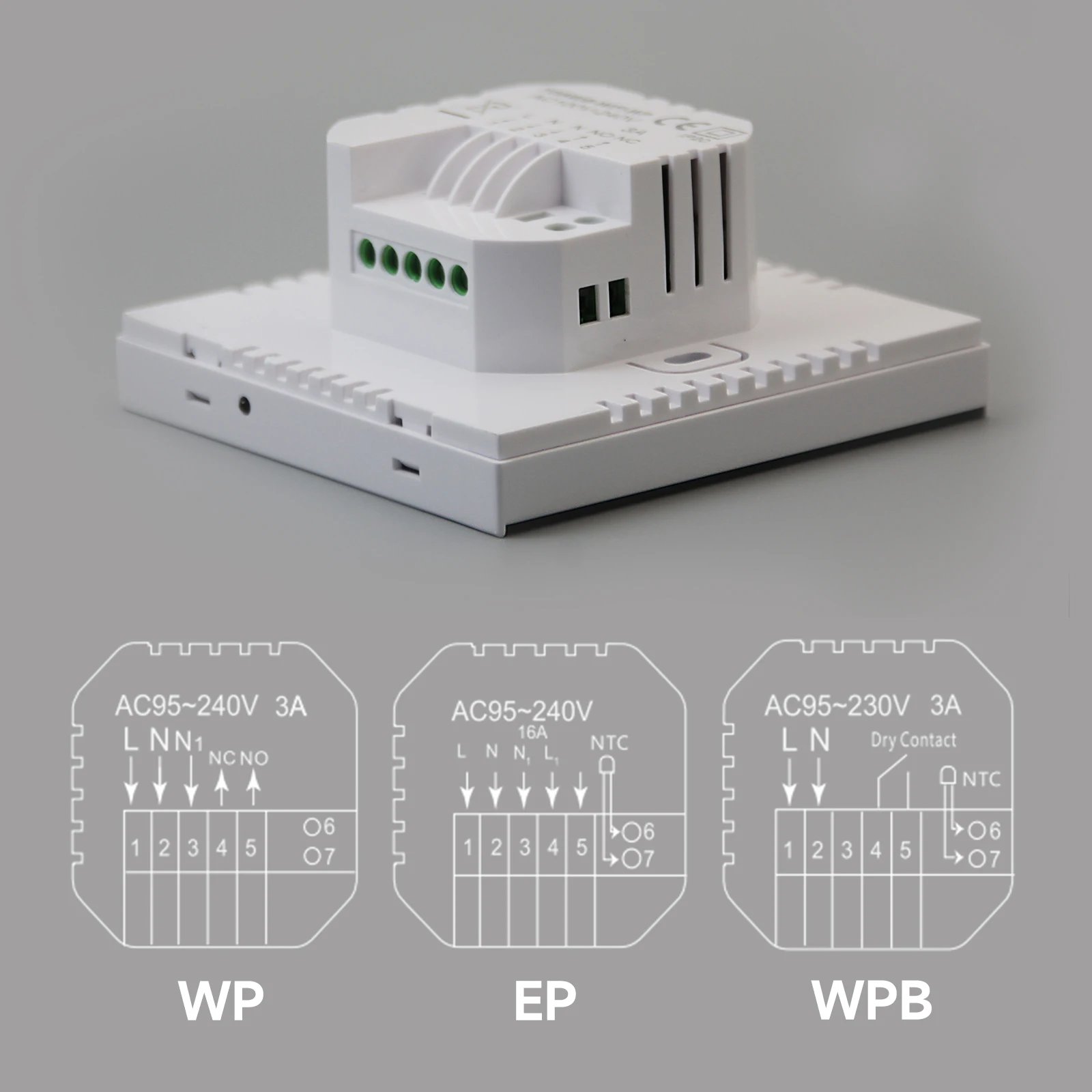

In addition, Child lock, antifreeze function, power-down memory, reverse output can be set.(WP cannot connect to external sensors)
